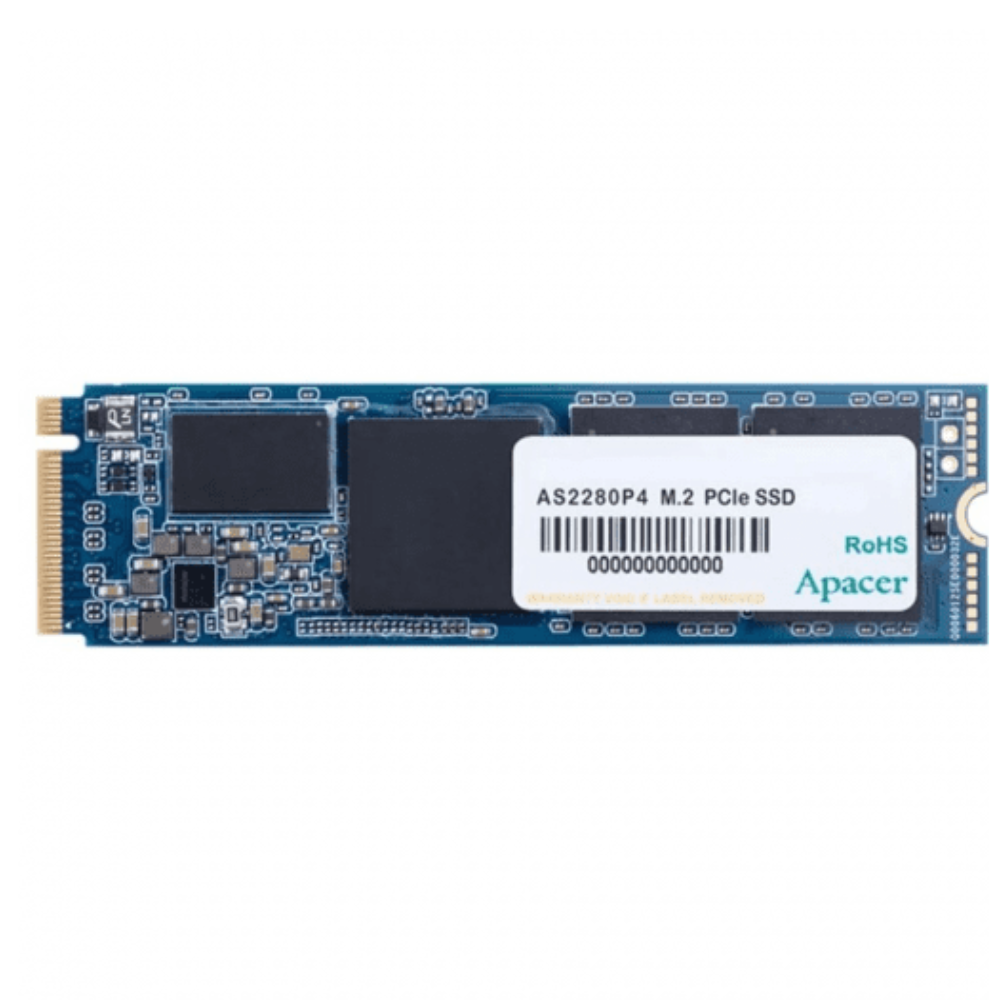

Apacer AS2280P4 512GB PCIe Gen3 x4 NVMe M.2 SSD
- 512GB NVMe SSD with PCIe Gen3 x4 Interface & NVMe 1.3
- Sequential Read Speed Up to 3000MB/s & Write Speed Up to 2000MB/s
- Ultra-Thin M.2 2280 Design with 3D TLC NAND Flash
- Up to 360,000 IOPS Random Write Performance & 3-Year Limited Warranty
Apacer AS2280P4 512GB PCIe Gen3 x4 NVMe M.2 SSD
Product Features
512GB NVMe Storage: The Apacer AS2280P4 provides 512GB of solid-state storage for compatible laptops, desktop PCs, mini PCs, and other systems equipped with an appropriate M.2 PCIe slot.
PCIe Gen3 x4 Performance: The AS2280P4 utilizes a PCIe Gen3 x4 interface to provide high-speed data transfer performance for applications, operating systems, games, and demanding workloads.
NVMe 1.3 Standard: The drive complies with the NVMe 1.3 standard, providing an efficient interface between the SSD and compatible PCIe-based computer systems.
Up to 3000MB/s Sequential Read Speed: Sequential read performance reaches up to 3000MB/s, enabling fast access to applications, games, project files, and stored data.
Up to 2000MB/s Sequential Write Speed: Sequential write performance reaches up to 2000MB/s for efficient file transfers and storage-intensive workloads.
Up to 360,000 IOPS: The AS2280P4 provides 4K random write performance of up to 360,000 IOPS for responsive storage operations.
3D TLC NAND: The SSD utilizes 3D TLC NAND flash memory, combining high-density storage with solid-state performance for compatible computing systems.
Ultra-Thin M.2 2280 Design: Measuring just 80 × 22 × 2.25 mm, the AS2280P4 features a compact and ultra-thin M.2 2280 form factor suitable for space-constrained systems such as thin notebooks and mini PCs.
ECC Support: Built-in error correction support of up to 72-bit/1KB helps maintain data integrity and stable operation during storage activity.
Shock & Vibration Resistance: The solid-state design supports shock resistance up to 1,500G/0.5ms and vibration resistance of 7–800Hz at 3.08Grms.
Low Power Consumption: The AS2280P4 is designed for efficient operation with specified active and idle power consumption of 275mA and 80mA respectively.
1.5 Million Hour MTBF: The drive has a specified Mean Time Between Failures rating of 1,500,000 hours.
3-Year Limited Warranty: The Apacer AS2280P4 is backed by a 3-year limited warranty, subject to the manufacturer’s applicable warranty conditions.
Product Specifications
| Brand | Apacer |
| Model | AS2280P4 |
| Product Type | Internal NVMe Solid State Drive |
| Capacity | 512GB |
| Interface | PCIe Gen3 x4 |
| NVMe Standard | NVMe 1.3 |
| Form Factor | M.2 2280 |
| NAND Flash | 3D TLC |
| Sequential Read Speed | Up to 3000MB/s |
| Sequential Write Speed | Up to 2000MB/s |
| 4K Random Write | Up to 360,000 IOPS |
| ECC Support | Up to 72-bit/1KB |
| Shock Resistance | 1,500G / 0.5ms |
| Vibration Resistance | 7–800Hz, 3.08Grms |
| Active Power Consumption | 275mA |
| Idle Power Consumption | 80mA |
| MTBF | 1,500,000 Hours |
| Operating Humidity | 5%–95% |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 80 × 22 × 2.25 mm |
| Certifications | CE, FCC, VCCI, BSMI, RoHS |
| Limited Warranty | 3 Years |
Ideal For
- Laptop Storage Upgrades
- Desktop PC Storage Upgrades
- Mini PCs
- Gaming Systems
- Operating Systems & Applications
- Everyday Computing
- High-Speed File Transfers
Frequently Asked Questions
What is the capacity of the Apacer AS2280P4 SSD?
This Apacer AS2280P4 model provides 512GB of NVMe solid-state storage.
What is the read speed of the Apacer AS2280P4 512GB?
The AS2280P4 provides sequential read speeds of up to 3000MB/s.
What is the write speed of the Apacer AS2280P4 512GB?
The SSD provides sequential write speeds of up to 2000MB/s.
Is the Apacer AS2280P4 a PCIe Gen3 SSD?
Yes. The AS2280P4 uses a PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard.
What type of NAND does the Apacer AS2280P4 use?
The AS2280P4 uses 3D TLC NAND flash memory.
What form factor does the Apacer AS2280P4 use?
The drive uses an ultra-thin M.2 2280 form factor measuring 80 × 22 × 2.25 mm.
Can the Apacer AS2280P4 be installed in a laptop?
Yes. Its compact M.2 2280 design makes it suitable for compatible laptops with an appropriate M.2 PCIe NVMe slot.
What is the warranty for the Apacer AS2280P4?
The Apacer AS2280P4 comes with a 3-year limited warranty, subject to the manufacturer’s applicable warranty terms.
