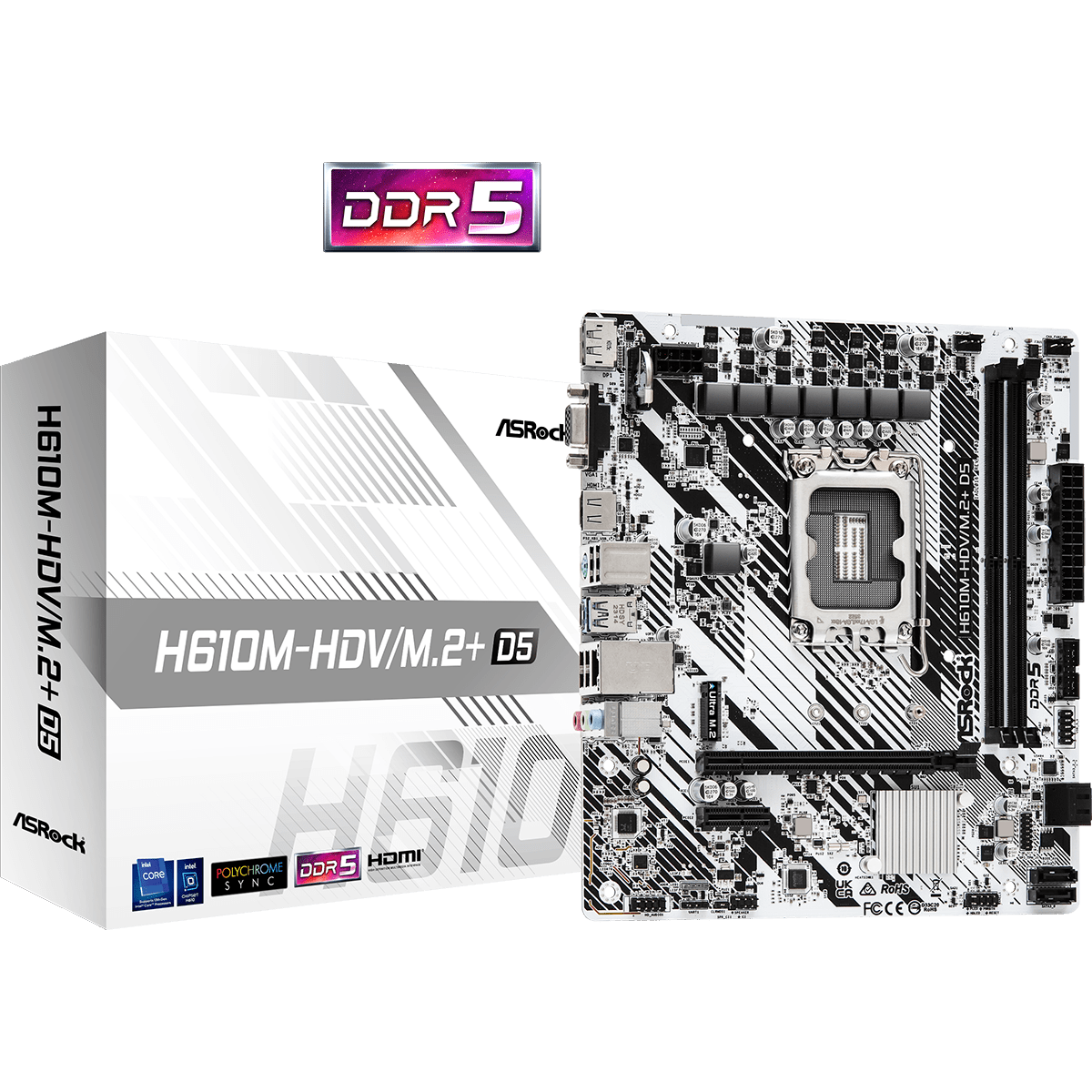

ASRock H610M-HDV/M.2+ D5 DDR5 Intel LGA1700 Micro ATX Motherboard
- Supports Intel 14th, 13th & 12th Gen Core Processors with LGA1700 Socket
- 2x DDR5 DIMM Slots with Dual-Channel Memory Support up to 5600MHz*
- PCIe 4.0 x16 Graphics Slot & Ultra M.2 PCIe Gen3 x4 Storage Slot
- 6+1+1 Power Phase Design with HDMI, DisplayPort, D-Sub & Gigabit LAN
ASRock H610M-HDV/M.2+ D5 DDR5 Intel LGA1700 Micro ATX Motherboard
DDR5 Motherboard for Intel LGA1700 Processors
The ASRock H610M-HDV/M.2+ D5 is an Intel H610 chipset motherboard designed for compatible 14th, 13th and 12th Gen Intel Core processors using the LGA1700 socket. It combines DDR5 memory support, PCIe 4.0 graphics connectivity, M.2 storage and multiple display outputs in a compact motherboard platform.
With a 6+1+1 power phase design, two DDR5 DIMM slots, Gigabit LAN and a useful selection of USB connectivity, the motherboard provides the essential features required for compatible home, office and general-purpose desktop PC builds.
Product Features
Intel LGA1700 Platform: Supports compatible Intel 14th, 13th and 12th Gen Core processors based on the LGA1700 socket.
DDR5 Memory Support: Two DDR5 DIMM slots support dual-channel memory configurations with speeds up to DDR5-5600, subject to the capabilities of the installed processor and memory.
6+1+1 Power Phase Design: The motherboard incorporates a 6+1+1 power phase configuration designed to provide stable power delivery to compatible system components.
PCIe 4.0 x16 Slot: A PCI Express 4.0 x16 expansion slot provides connectivity for compatible dedicated graphics cards and other supported PCIe devices.
Additional PCIe Expansion: One PCIe 3.0 x1 slot provides additional expansion capability for compatible add-in cards.
Ultra M.2 Storage: One Ultra M.2 slot supports PCIe Gen3 x4 connectivity for compatible high-speed M.2 solid-state drives.
Four SATA3 Ports: Four SATA3 connectors provide additional storage expansion for compatible SATA SSDs and hard disk drives.
Multiple Display Outputs: HDMI, DisplayPort and D-Sub graphics outputs provide flexible display connectivity when used with a compatible processor featuring integrated graphics.
7.1-Channel HD Audio: Realtek ALC897 audio provides support for high-definition multi-channel audio configurations.
Gigabit Ethernet: Integrated Realtek Gigabit LAN provides wired network connectivity for internet access, local networking and online applications.
USB Type-C Connectivity: A rear USB 3.2 Gen 1 Type-C port provides convenient connectivity for compatible modern USB devices.
USB 3.2 Gen 1: The motherboard provides USB 3.2 Gen 1 Type-A connectivity through rear and front-panel connections for compatible peripherals and storage devices.
ASRock Auto Driver Installer: Support for ASRock Auto Driver Installer helps simplify access to required motherboard drivers during system setup.
Product Specifications
| Brand | ASRock |
| Model | H610M-HDV/M.2+ D5 |
| Chipset | Intel H610 |
| CPU Socket | LGA1700 |
| Supported Processors | Compatible Intel 14th, 13th & 12th Gen Core Processors |
| Power Phase Design | 6+1+1 |
| Memory Type | DDR5 |
| Memory Slots | 2 x DDR5 DIMM |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to DDR5-5600* |
| Primary Expansion Slot | 1 x PCIe 4.0 x16 |
| Additional Expansion Slot | 1 x PCIe 3.0 x1 |
| M.2 Storage | 1 x Ultra M.2 (PCIe Gen3 x4) |
| SATA | 4 x SATA3 |
| HDMI | Yes |
| DisplayPort | Yes |
| D-Sub / VGA | Yes |
| Audio Codec | Realtek ALC897 |
| Audio | 7.1 Channel HD Audio |
| LAN | Realtek Gigabit LAN |
| USB 3.2 Gen 1 Type-C | 1 x Rear |
| USB 3.2 Gen 1 Type-A | 3 Total (1 Rear + 2 Front) |
| USB 2.0 | 6 Total (4 Rear + 2 Front) |
| ASRock Auto Driver Installer | Supported |
| Product Type | Desktop Motherboard |
*Actual memory support and operating speed may vary depending on the installed processor, memory modules and system configuration.
DDR5 Memory for Modern Desktop Builds
The H610M-HDV/M.2+ D5 includes two DDR5 DIMM slots with dual-channel support. DDR5 provides increased memory bandwidth compared with previous-generation DDR4 platforms, making the motherboard suitable for compatible modern desktop configurations.
PCIe 4.0 Graphics Expansion
The PCIe 4.0 x16 slot allows installation of compatible dedicated graphics cards, providing flexibility when building a productivity, multimedia or gaming desktop system.
M.2 and SATA Storage Options
One Ultra M.2 PCIe Gen3 x4 slot provides support for compatible NVMe SSD storage, while four SATA3 connectors can be used for additional compatible SATA SSDs and hard drives.
Flexible Display Connectivity
HDMI, DisplayPort and D-Sub outputs provide multiple options for connecting compatible monitors. Motherboard display outputs require a compatible processor with integrated graphics.
USB Type-C and Peripheral Connectivity
The motherboard includes a rear USB 3.2 Gen 1 Type-C port along with USB 3.2 Gen 1 Type-A and USB 2.0 connectivity, providing support for a broad range of compatible peripherals and external devices.
Important Compatibility Information
Processor, memory and graphics compatibility should be confirmed before purchase. Support for specific Intel processor models and memory speeds can depend on the motherboard BIOS version, installed CPU and memory configuration.
