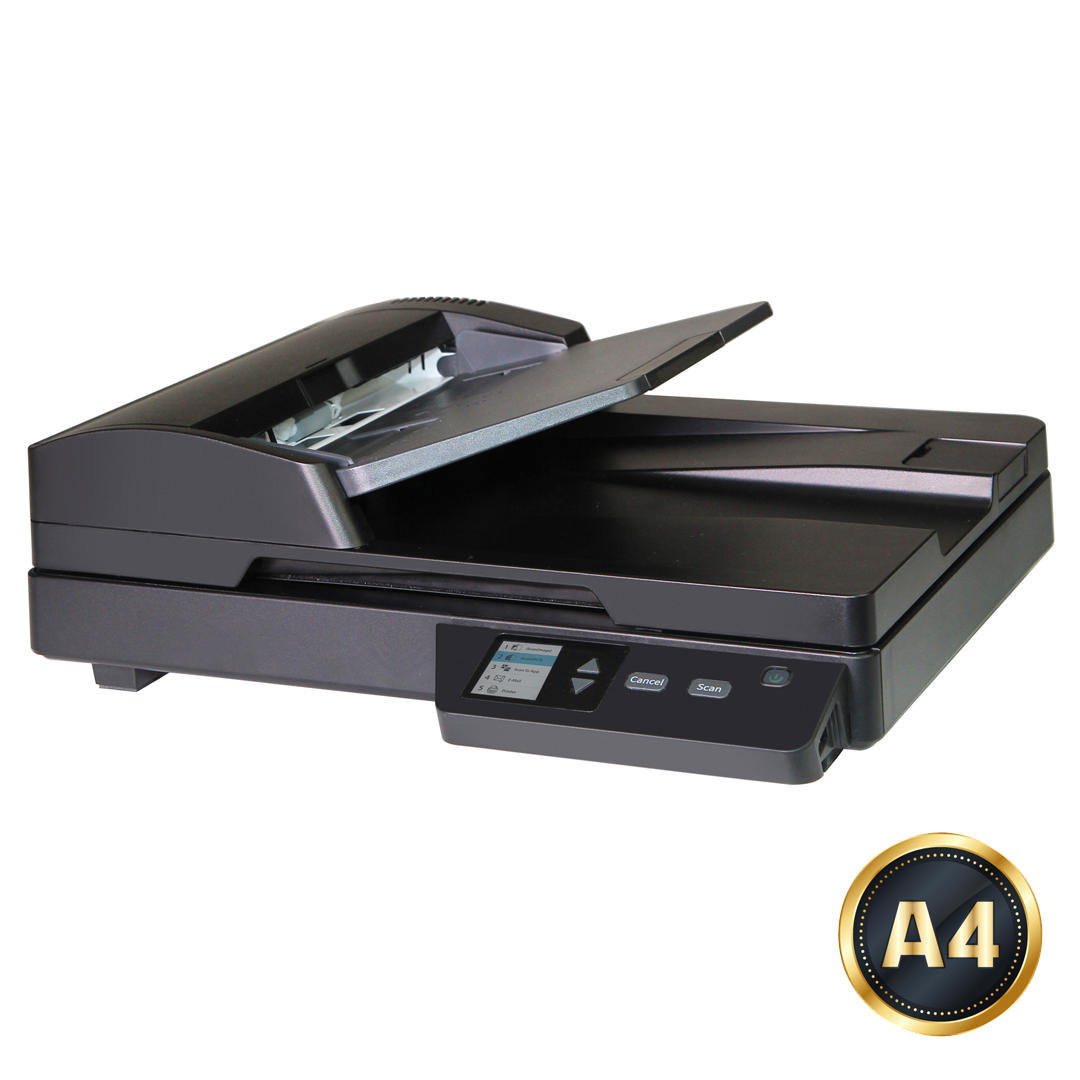

Avision AD136WN Wireless Flatbed Document Scanner
- Fast duplex scanning up to 36 ppm / 72 ipm
- Integrated flatbed and 75-sheet automatic document feeder
- Wi-Fi, Gigabit Ethernet and USB 3.2 connectivity
- 1200 dpi flatbed and 600 dpi ADF optical resolution
- Supports documents up to Legal size
- Long-paper scanning up to 240 inches
- Automatic image cropping, straightening and optimisation
- Recommended daily volume of up to 1,000 pages
Avision AD136WN Wireless Flatbed and ADF Scanner
The Avision AD136WN is a compact wireless document scanner that combines a flatbed with a 75-sheet automatic document feeder. It delivers scanning speeds of up to 36 ppm and 72 ipm, making it suitable for small businesses, schools, clinics, professional offices and workgroups in Pakistan.
Its Wi-Fi, Gigabit Ethernet and USB 3.2 connectivity provide flexible deployment options. The scanner can be connected directly to a computer or shared across a network for convenient departmental document capture.
Flatbed and Automatic Document Feeder
The 75-sheet ADF enables efficient batch scanning of single-sided and double-sided documents. The integrated flatbed is suitable for delicate, bound or irregular documents that should not pass through an automatic feeder. Both the ADF and flatbed support documents up to Legal size.
Fast Duplex Document Scanning
The AD136WN scans black-and-white and colour documents at up to 36 ppm and 72 ipm at both 200 dpi and 300 dpi. Its duplex capability captures both sides of a page in one pass, helping users complete everyday scanning tasks more efficiently.
Wireless and Network Connectivity
Built-in IEEE 802.11 b/g/n Wi-Fi and Gigabit Ethernet allow the scanner to be shared across compatible network environments. USB 3.2 Gen 1×1 connectivity is also available for fast and reliable direct connection to a computer.
Clear Images and Flexible File Formats
Avision’s image-processing technology automatically crops, straightens and optimises scanned images. The flatbed provides an optical resolution of 1200 x 1200 dpi, while the ADF offers 600 x 600 dpi. Scanned files can be saved in PDF, JPEG, TIFF, Word, Excel, RTF, HTML and other commonly used formats.
Contact Tescom Engineering for the latest Avision AD136WN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | Wireless Flatbed and ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Flatbed and Automatic Document Feeder |
| Scanning Speed | Up to 36 ppm simplex / 72 ipm duplex |
| Flatbed Scanning Speed | Approximately 4.5 seconds |
| ADF Capacity | 75 sheets of 80 g/m² paper |
| Optical Resolution | Flatbed: 1200 x 1200 dpi; ADF: 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512MB SDRAM |
| Interface | USB 3.2 Gen 1×1, Gigabit Ethernet and Wi-Fi |
| Ethernet | RJ-45 10/100/1000 Mbps |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| ADF Minimum Size | 76.2 x 148 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| Paper Weight | 60–105 g/m² |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Recommended Daily Volume | Up to 1,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Dimensions (W x D x H) | 404.6 x 346 x 127.1 mm |
| Weight | 2.96 kg |
| Power Consumption | Operation: <17W; Ready: <7W; Sleep: <1.9W; Off: <0.21W |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and Virtual Scanner Link |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
