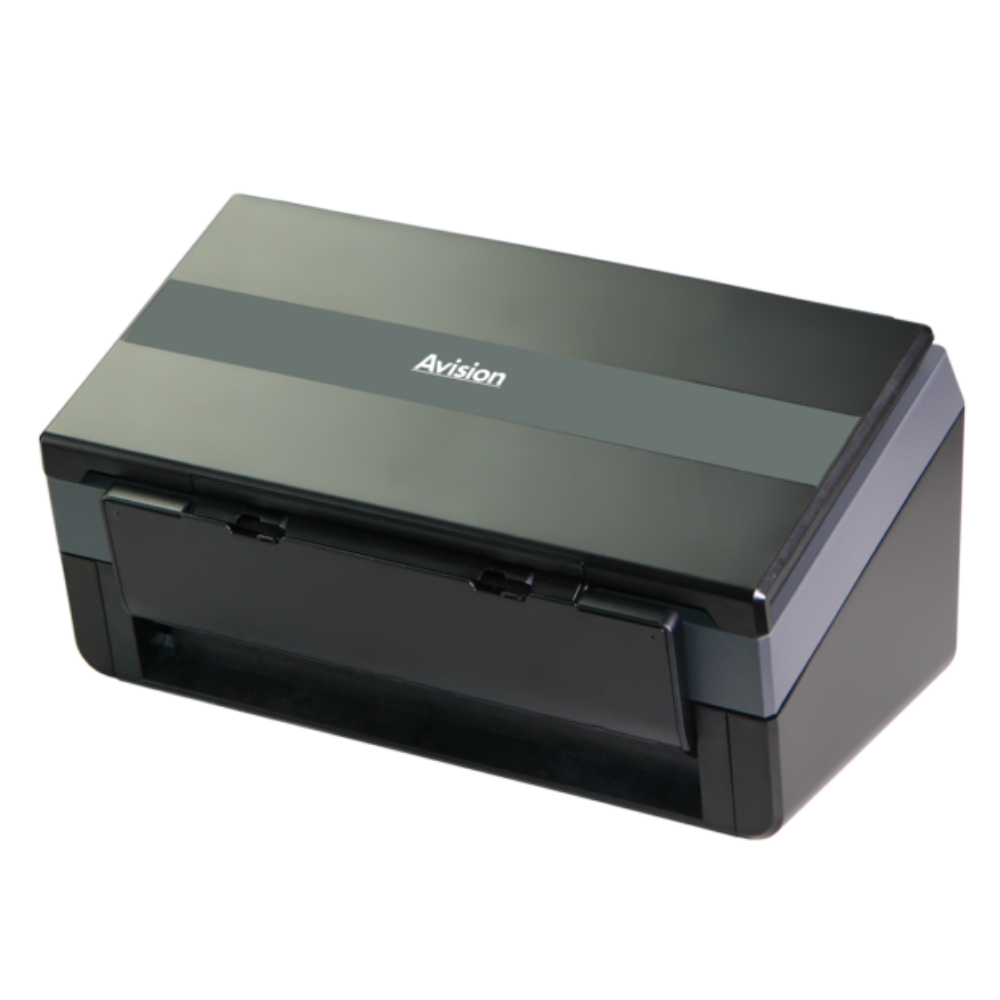

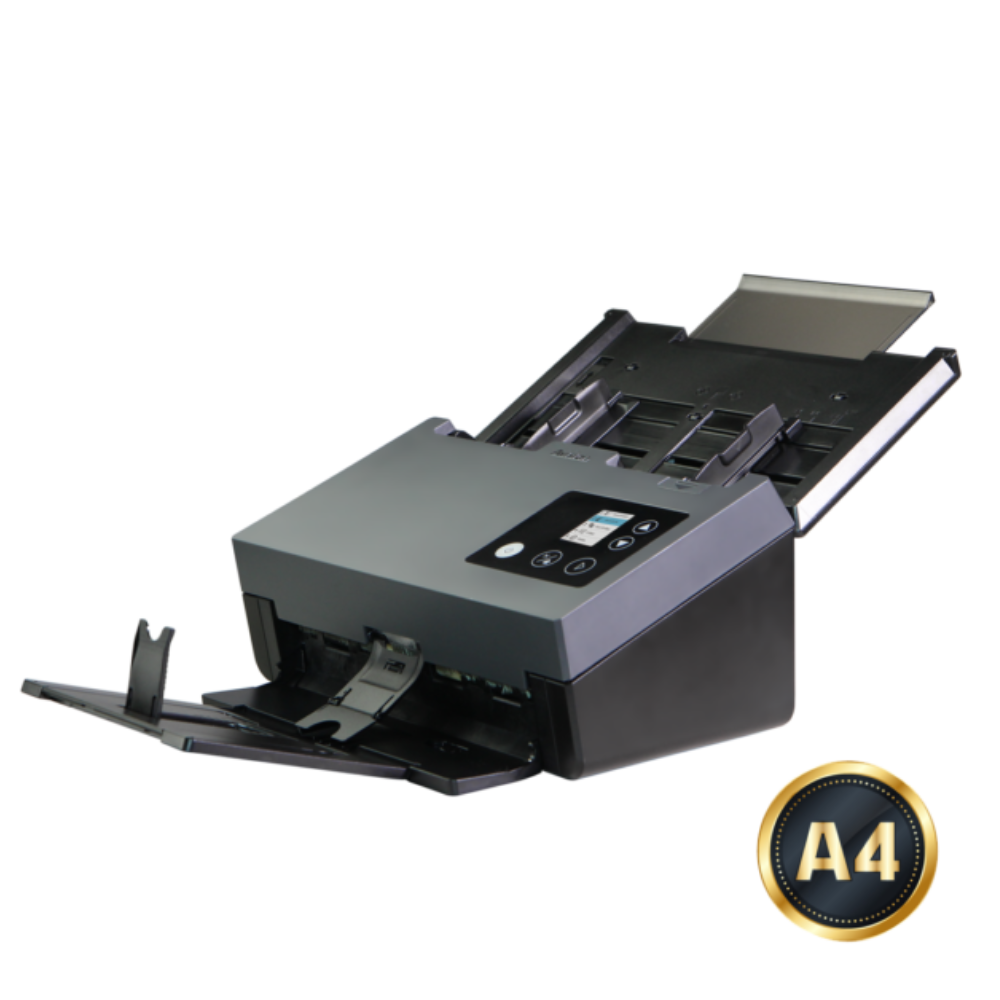

Avision AD3100N Network Document Scanner
- Scanning Speed: Up to 100 ppm / 200 ipm in color and black and white at 200–300 dpi.
- Feeder Capacity: 100-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 15,000 pages per day.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Connectivity: USB 3.2 Gen 1×1 and RJ-45 Ethernet.
- Document Handling: Supports legal-size documents, long paper and embossed cards up to 1.25 mm thick.
- Paper Detection: Ultrasonic paper jam detection.
- Compact Design: Weighs 4.7 kg for practical desktop placement.
Avision AD3100N Network Document Scanner
The Avision AD3100N Scanner combines fast duplex scanning with a compact desktop design and wired network connectivity. It helps businesses in Pakistan digitize invoices, forms, customer records and other paperwork while handling demanding daily scanning workloads.
Fast Color and Black-and-White Scanning
Scan A4 portrait documents at up to 100 pages per minute or 200 images per minute in duplex mode. These speeds apply to both color and black-and-white scanning at 200 and 300 dpi. The 100-sheet automatic document feeder and recommended daily volume of up to 15,000 pages support efficient batch processing.
Flexible Document and Card Handling
The AD3100N supports standard documents from 50 × 50 mm up to legal size at 216 × 356 mm. It accommodates paper weights from 27 to 413 g/m² and embossed cards up to 1.25 mm thick. Long paper mode supports extended documents at selected resolutions, while ultrasonic paper jam detection helps identify feeding problems.
Detailed Images and Flexible Output Formats
Capture documents at an optical resolution of 600 × 600 dpi, with output available up to 1200 × 1200 dpi. Supported applications offer formats including PDF, TIFF, JPEG, PNG and Microsoft Office documents, giving teams flexibility when saving and processing scanned files.
USB and Ethernet Connectivity
Connect the scanner through USB 3.2 Gen 1×1 or its built-in Ethernet interface. Listed software includes Button Manager, PaperPort, AVScan and Virtual Scanner Link, alongside TWAIN, ISIS and WIA drivers. Software availability and functionality depend on the operating system and application used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD3100N |
| Scanner Type | Sheet-fed network document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 512 MB SDRAM |
| Black and White Speed | Up to 100 ppm simplex / 200 ipm duplex at 200 or 300 dpi |
| Color Speed | Up to 100 ppm simplex / 200 ipm duplex at 200 or 300 dpi |
| Recommended Daily Volume | Up to 15,000 pages |
| ADF Capacity | Up to 100 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Document Size | 50 × 50 mm |
| Maximum Standard ADF Scan Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| ADF Paper Width Accommodation | Up to 242 mm; listed maximum standard scanning width is 216 mm |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| USB Interface | USB 3.2 Gen 1×1 |
| Network Interface | RJ-45 Ethernet, listed at 10/100/1000 Mbps |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort, AVScan and Virtual Scanner Link |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 316 × 680 × 239 mm |
| Minimum Dimensions (W × D × H) | 316 × 191 × 168 mm |
| Weight | 4.7 kg |
| Power Consumption | Operation: <60W; ready: <15W; sleep: <2.9W; off: <0.3W |
| Acoustical Noise | Operation: <63 dB; ready: <45 dB |
Avision AD3100N Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD3100N Scanner price in Pakistan, current availability and ordering details.
