Avision AD345GFWN Wireless Network Flatbed Scanner
- High-speed scanning up to 60 ppm / 120 ipm
- Legal-size flatbed and 100-sheet automatic document feeder
- Wi-Fi, Gigabit Ethernet and USB 3.2 connectivity
- 1200 dpi flatbed and 600 dpi ADF optical resolution
- Supports documents, business cards and embossed ID cards
- Ultrasonic double-feed detection for reliable scanning
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 10,000 pages

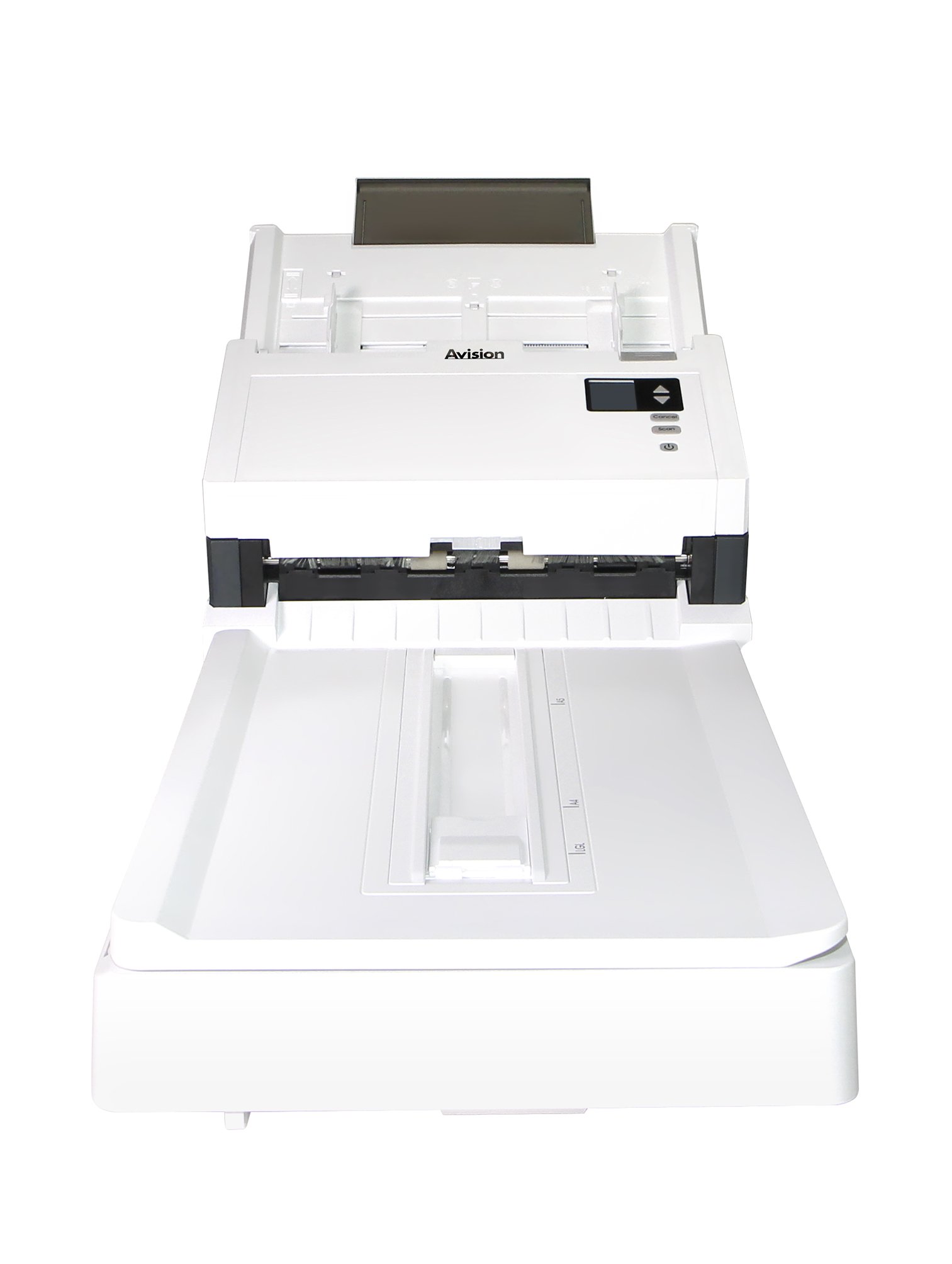

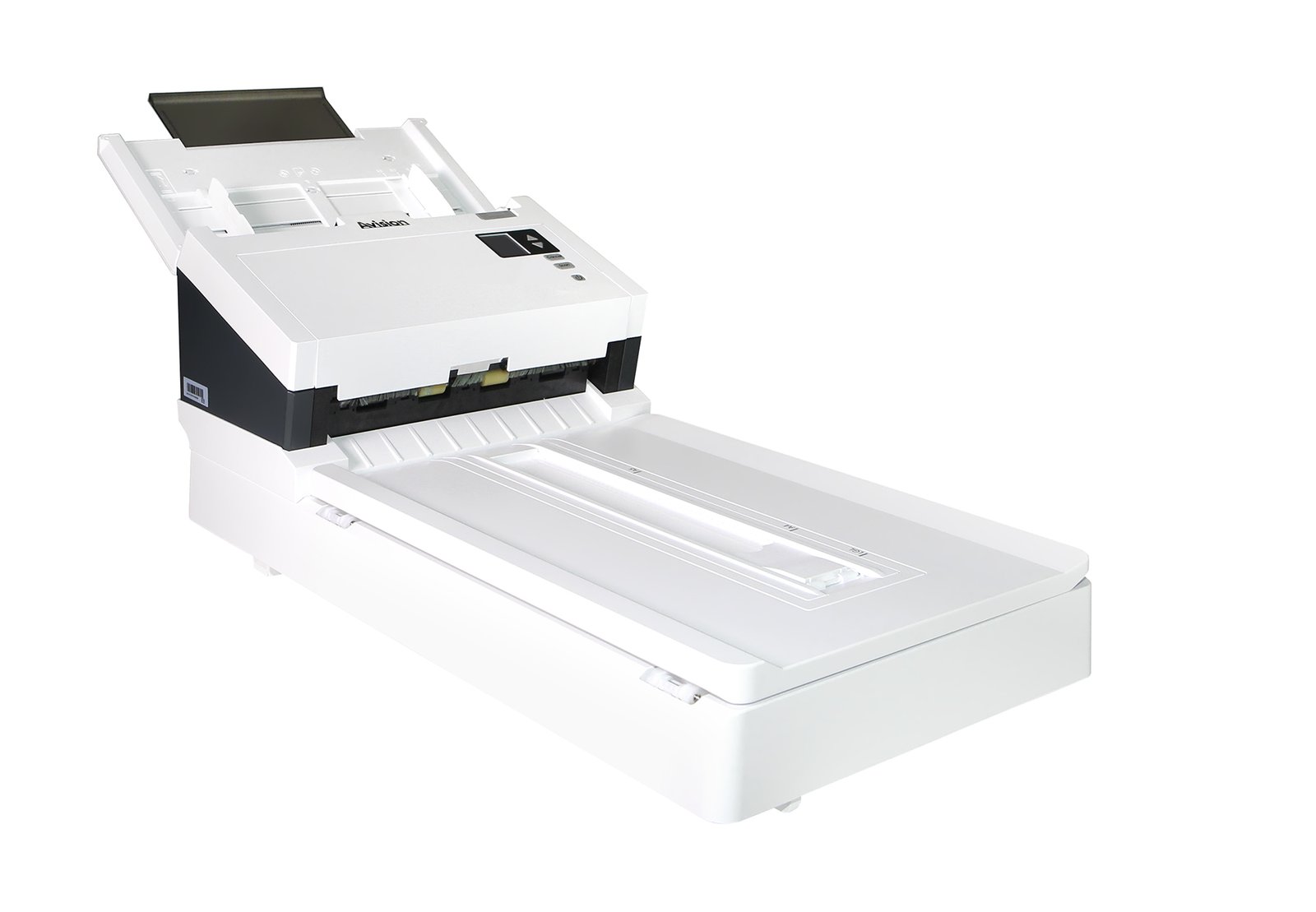

Avision AD345GFWN Wireless Network Flatbed Scanner
The Avision AD345GFWN combines high-speed duplex document scanning with a convenient Legal-size flatbed. It captures black-and-white documents at up to 60 ppm and 120 ipm, helping businesses process large document batches efficiently while retaining the flexibility to scan delicate and irregular originals.
Built-in Wi-Fi, Gigabit Ethernet and USB 3.2 connectivity allow the scanner to support direct computer connections and shared network workflows. It is suitable for banks, healthcare facilities, schools, law firms, government departments and businesses in Pakistan.
Fast Duplex Scanning with a 100-Sheet ADF
The 100-sheet automatic document feeder captures both sides of each document in one pass. Black-and-white scanning reaches 60 ppm and 120 ipm at 200 dpi and 300 dpi, while colour scanning reaches 60 ppm and 120 ipm at 200 dpi.
Legal-Size Flatbed for Irregular Originals
The integrated flatbed accommodates originals up to 216 x 356 mm, making it suitable for photographs, books, fragile papers and documents that cannot pass through an automatic feeder. It provides 1200 x 1200 dpi optical resolution for detailed flatbed scanning.
Flexible Document and Card Handling
The ADF accepts documents from 50 x 50 mm up to Legal size and handles paper weights from 27 to 413 g/m². It can also scan embossed cards up to 1.25 mm thick. Long-paper mode supports documents measuring up to 240 inches at 200 dpi colour duplex scanning.
Reliable Feeding and Wireless Connectivity
Avision’s image-processing technology can automatically crop, straighten and optimise scanned images. Ultrasonic double-feed detection helps identify overlapping sheets, while Wi-Fi and Gigabit Ethernet connectivity make the scanner convenient for shared departmental use.
Contact Tescom Engineering for the latest Avision AD345GFWN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | Wireless Network Flatbed and ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Flatbed and Automatic Document Feeder |
| Black-and-White Speed | Up to 60 ppm simplex / 120 ipm duplex at 200 and 300 dpi |
| Colour Speed at 200 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Colour Speed at 300 dpi | Up to 45 ppm simplex / 90 ipm duplex |
| ADF Capacity | 100 sheets of A4 80 g/m² paper |
| ADF Optical Resolution | 600 x 600 dpi |
| Flatbed Optical Resolution | 1200 x 1200 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512 MB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps and Wi-Fi |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| ADF Minimum Size | 50 x 50 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| Flatbed Maximum Size | 216 x 356 mm (Legal) |
| ADF Paper Width | Up to 242 mm |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic paper jam detection |
| Recommended Daily Volume | Up to 10,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Maximum Dimensions | 754 x 321 x 301.4 mm |
| Minimum Dimensions | 545 x 321 x 231.3 mm |
| Weight | 6.9 kg |
| Power Consumption | Operation: <37.22 W; Ready: <8.11 W; Sleep: <2.17 W; Off: <0.1 W |
| Acoustical Noise | Operation: <52 dB; Ready: <25 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, PDF, multi-page PDF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and WorldCard Team |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
