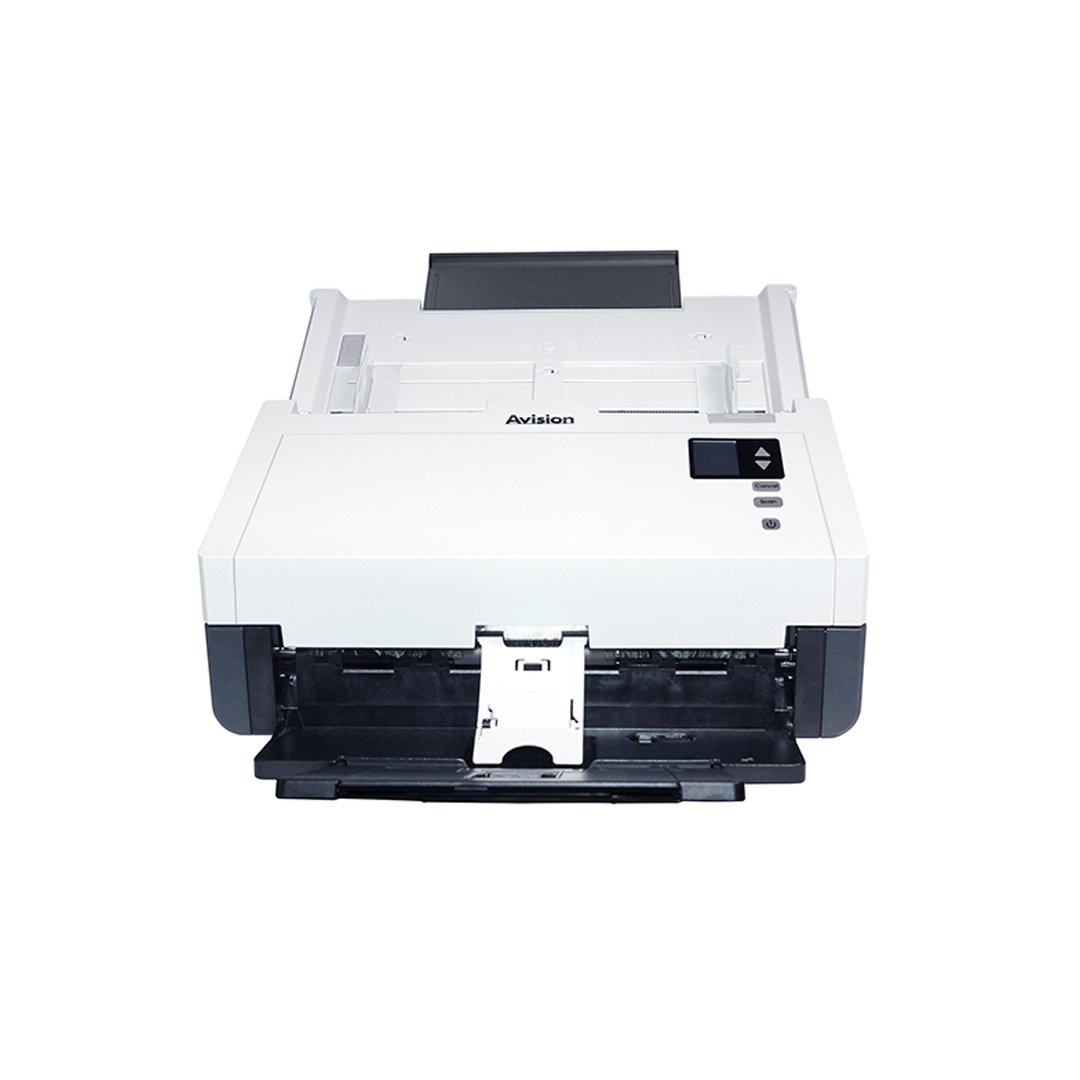

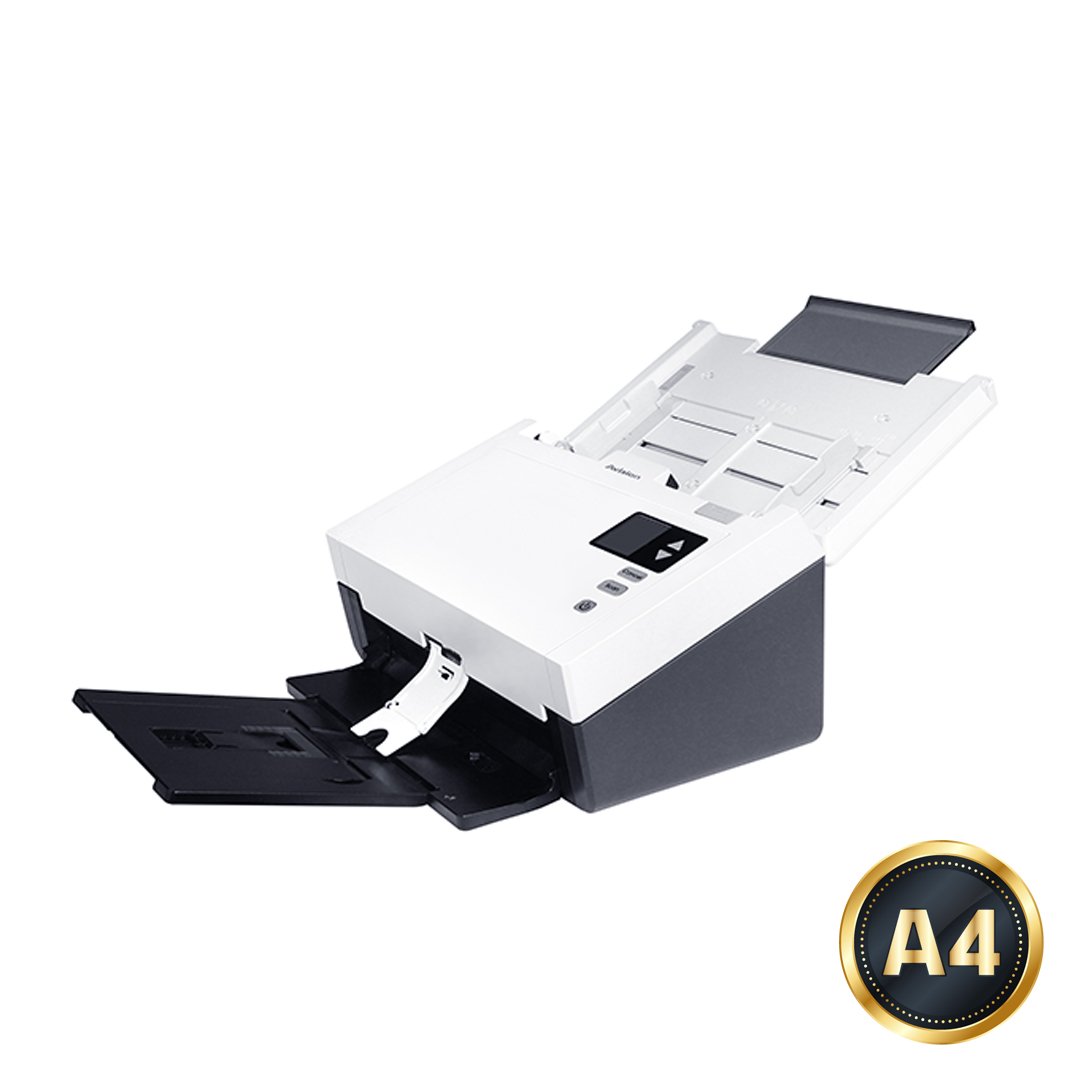

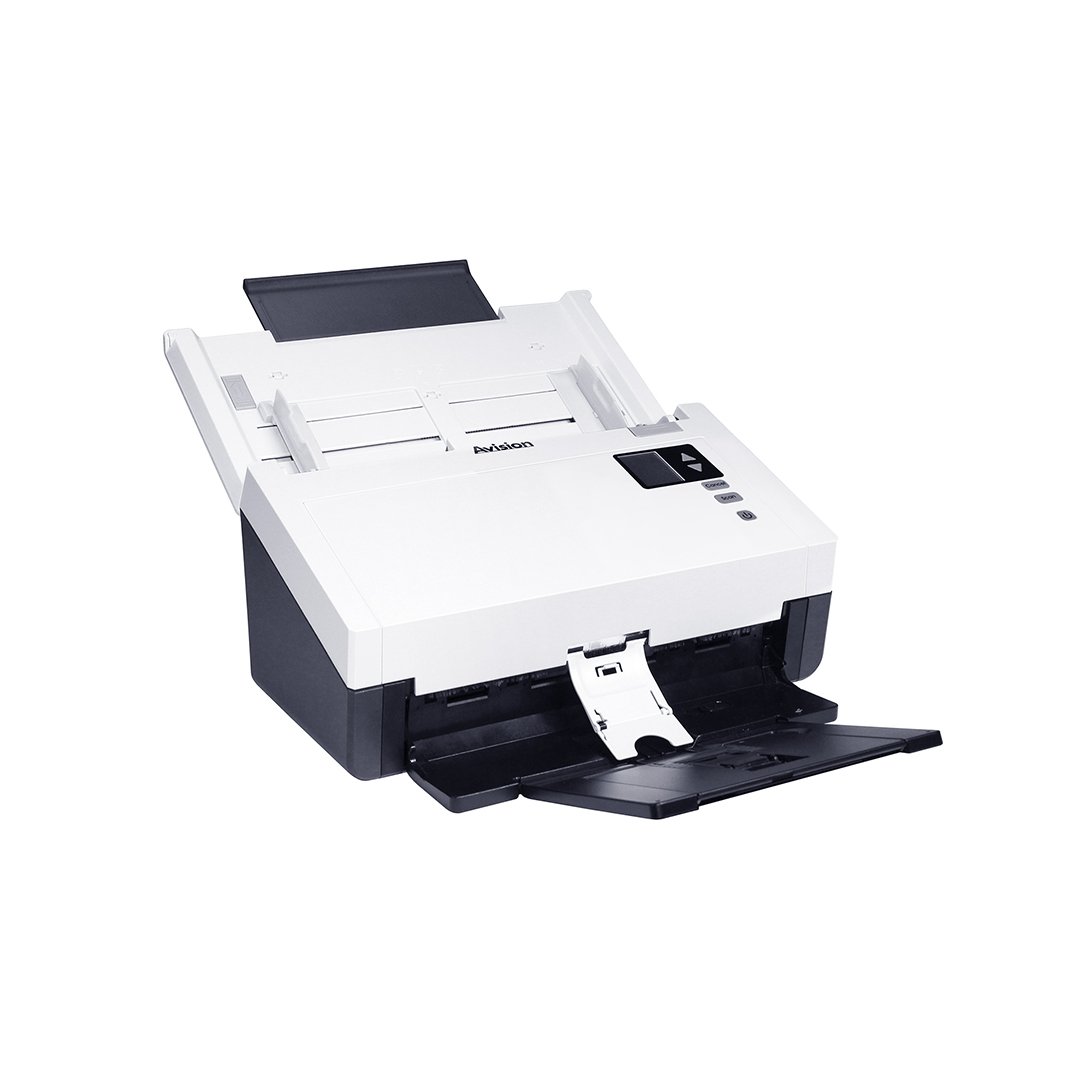

Avision AD345GN Network Document Scanner
- High-speed scanning up to 60 ppm / 120 ipm
- 100-sheet automatic document feeder
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical and 1200 dpi output resolution
- Supports documents, business cards and embossed ID cards
- Ultrasonic double-feed detection
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 10,000 pages
Avision AD345GN High-Speed Network Document Scanner
The Avision AD345GN is a reliable ADF document scanner for offices that need fast document capture with flexible connectivity. It scans up to 60 ppm and 120 ipm, allowing users to capture both sides of a document in one pass for efficient batch processing.
With USB 3.2 and built-in Gigabit Ethernet, the AD345GN can be used as a direct desktop scanner or deployed on a network for shared departmental workflows. It is suitable for business offices, banks, healthcare facilities, schools, law firms and government departments in Pakistan.
Fast Duplex Scanning
The 100-sheet automatic document feeder supports high-speed duplex scanning of black-and-white and colour documents at up to 60 ppm and 120 ipm at 200 dpi and 300 dpi. Its recommended daily volume of up to 10,000 pages makes it suitable for busy workgroups.
Flexible Document and Card Handling
The scanner supports documents from 50 x 50 mm up to Legal size. It accepts paper weights from 27 to 413 g/m² and can scan embossed cards up to 1.25 mm thick. Long-paper mode supports documents up to 240 inches at 200 dpi colour duplex scanning.
Clear Images and Reliable Feeding
Avision’s image-processing technology automatically crops, straightens and optimises scanned images for cleaner files. Ultrasonic double-feed detection helps identify overlapping pages during batch scanning, reducing the risk of missed documents.
Network-Ready Document Capture
Connect via USB 3.2 for direct scanning or RJ-45 Gigabit Ethernet for shared network access. The AD345GN supports popular file formats including PDF, JPEG, TIFF, Word, Excel, RTF and HTML for archiving, OCR and document-management applications.
Contact Tescom Engineering for the latest Avision AD345GN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed Network ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 60 ppm simplex / 120 ipm duplex |
| ADF Capacity | 100 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512MB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 50 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic detection |
| Recommended Daily Volume | Up to 10,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Maximum Dimensions | 316 x 680 x 239 mm |
| Minimum Dimensions | 316 x 191 x 168 mm |
| Weight | 4.3 kg |
| Power Consumption | Operation: <37.22W; Ready: <8.11W; Sleep: <2.17W; Off: <0.1W |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort and AVScan |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
