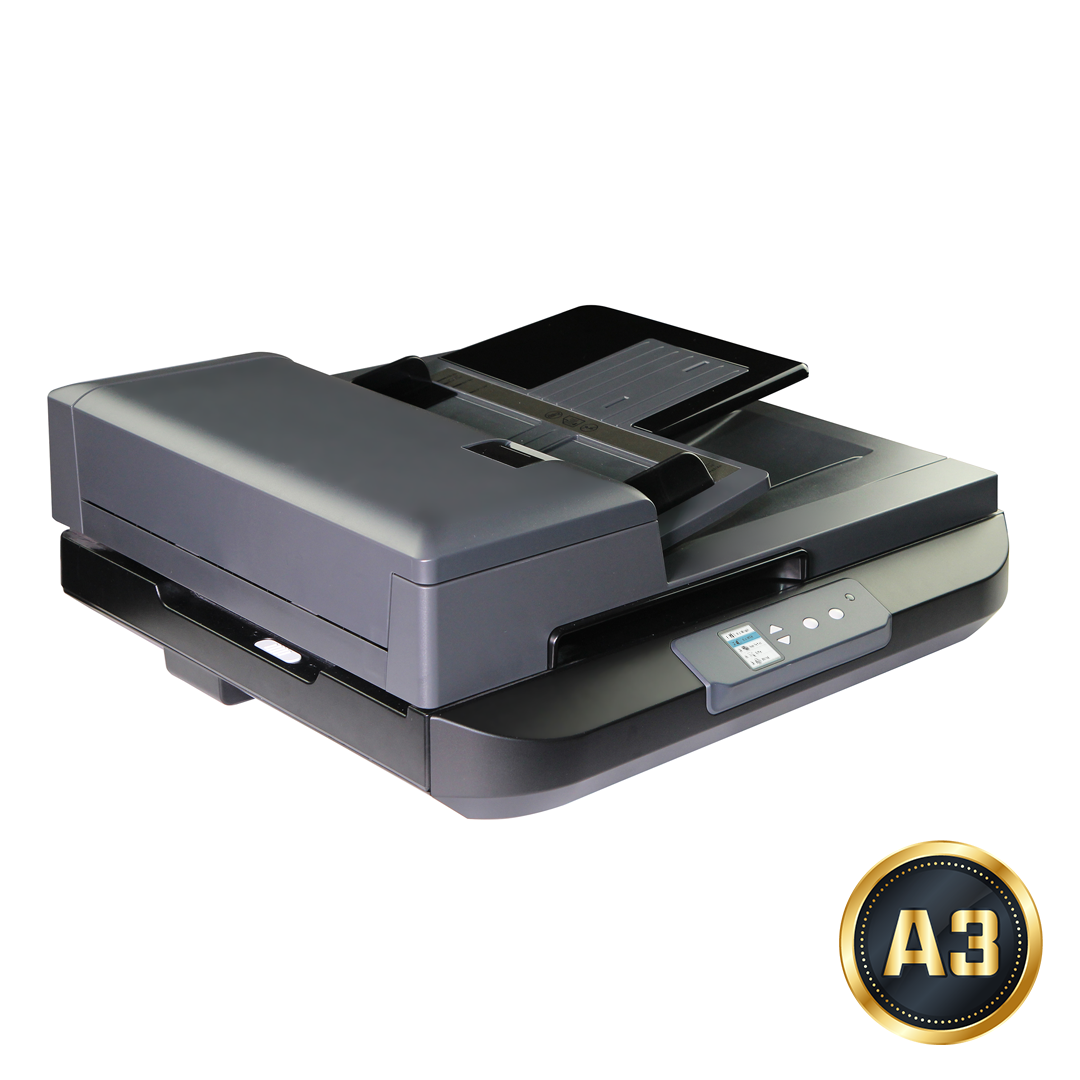

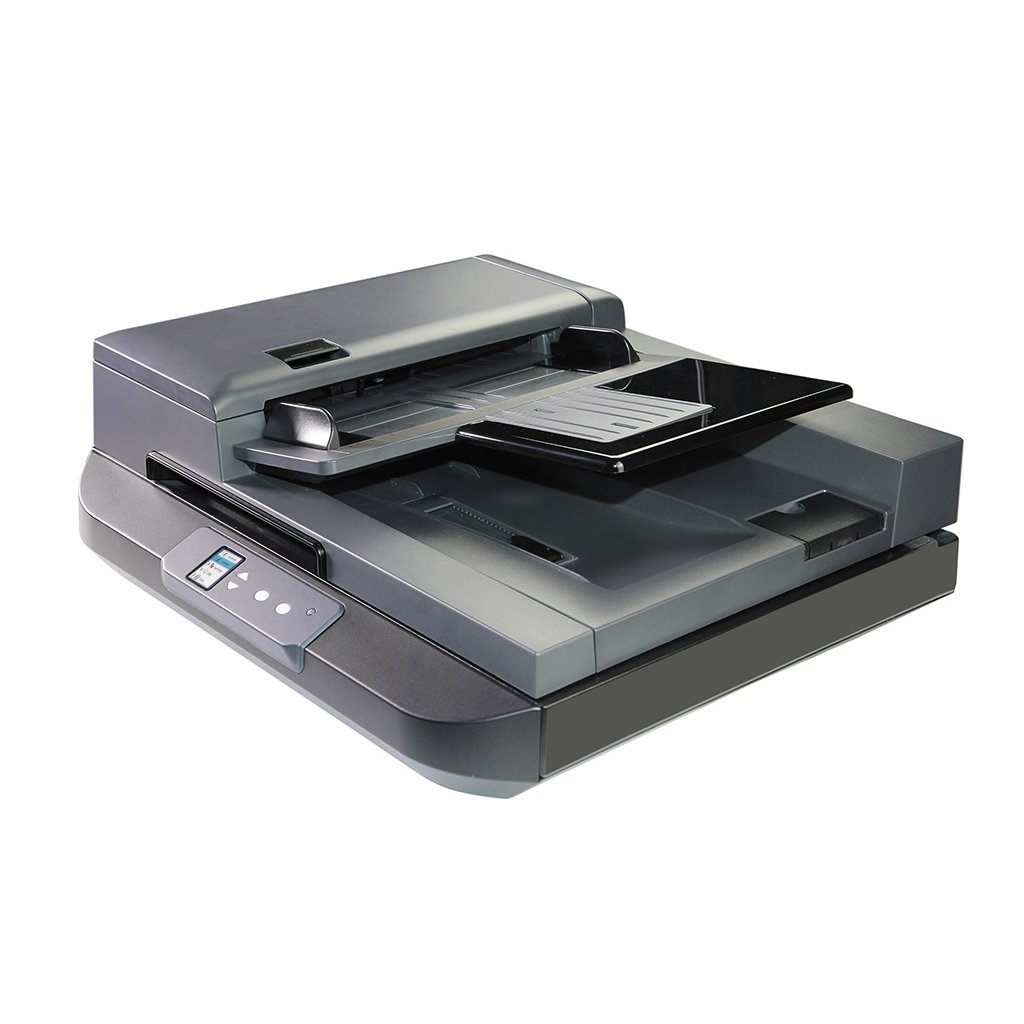

Avision AD5800 A3 Flatbed Production Scanner
- High-speed scanning up to 80 ppm / 160 ipm
- Integrated A3 flatbed and automatic document feeder
- Large 100-sheet ADF for batch scanning
- 600 x 600 dpi optical resolution
- Fast flatbed scanning in approximately 2 seconds
- Ultrasonic double-feed detection for reliable feeding
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 15,000 pages
Avision AD5800 High-Speed A3 Flatbed Scanner
The Avision AD5800 is a high-volume A3 document scanner that combines a fast automatic document feeder with a convenient flatbed. It scans colour, grayscale and monochrome documents at up to 80 ppm and 160 ipm, helping organisations process large document batches efficiently.
The integrated A3 flatbed makes the AD5800 suitable for books, photographs, fragile papers and bound or irregular originals that cannot pass through an automatic feeder. It is an effective document-digitisation solution for banks, government departments, educational institutions, healthcare organisations and large businesses in Pakistan.
Fast Duplex Batch Scanning
The 100-sheet automatic document feeder captures both sides of a document in one pass at up to 80 ppm and 160 ipm. It maintains the same rated speed for black-and-white and colour scanning at 200 dpi and 300 dpi, supporting consistent high-volume workflows.
Integrated A3 Flatbed
The built-in flatbed accommodates originals measuring up to 297 x 420 mm, while the ADF handles documents up to 297 x 432 mm. With a flatbed scan time of approximately two seconds, individual pages and delicate originals can be captured quickly.
Reliable Document Feeding
Ultrasonic double-feed detection helps identify overlapping pages during batch scanning and reduces the risk of missed documents. The ADF supports paper weights from 60 to 105 g/m², while long-paper mode accommodates documents measuring up to 240 inches at 200 dpi colour duplex scanning.
Flexible Digital File Creation
The AD5800 connects directly to a computer through USB 3.2. Scanned documents can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel, RTF and HTML for archiving, OCR and document-management workflows.
Contact Tescom Engineering for the latest Avision AD5800 scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed A3 Flatbed and ADF Production Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Flatbed and Automatic Document Feeder |
| Scanning Speed | Up to 80 ppm simplex / 160 ipm duplex |
| Flatbed Scan Time | Approximately 2 seconds |
| ADF Capacity | 100 sheets |
| ADF Optical Resolution | 600 x 600 dpi |
| Flatbed Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 1 GB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| ADF Minimum Size | 105 x 149 mm |
| ADF Maximum Size | 297 x 432 mm (A3) |
| Flatbed Maximum Size | 297 x 420 mm (A3) |
| Paper Weight | 60–105 g/m² |
| Long-Paper Mode | Up to 240 in. / 6096 mm at 200 dpi colour duplex |
| Double-Feed Detection | Ultrasonic paper jam detection |
| Recommended Daily Volume | Up to 15,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Dimensions (W x D x H) | 585 x 574 x 497 mm |
| Weight | 11 kg |
| Power Consumption | Operation: <50 W; Ready: <15 W; Sleep: <2.9 W; Off: <0.3 W |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort and AVScan |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
