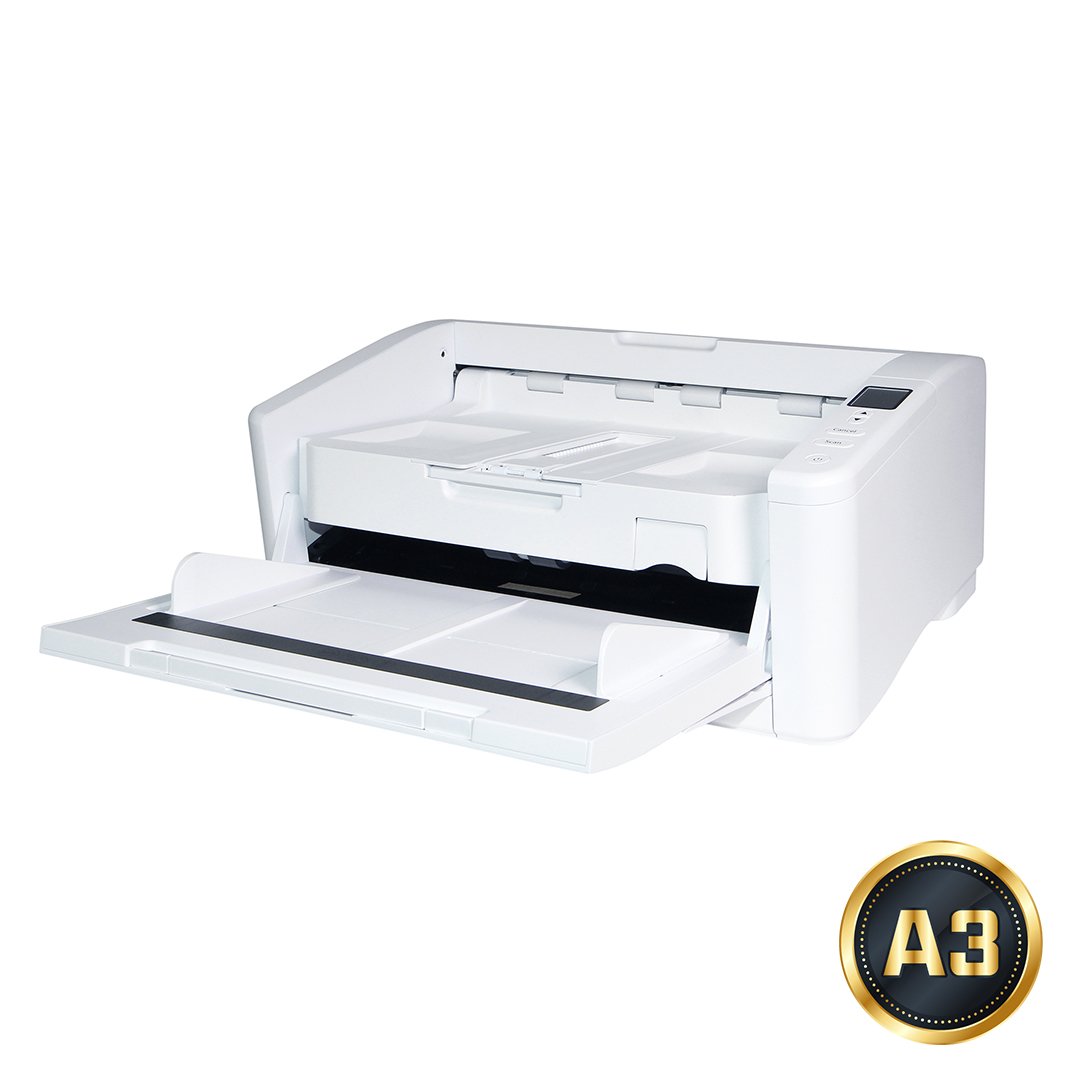

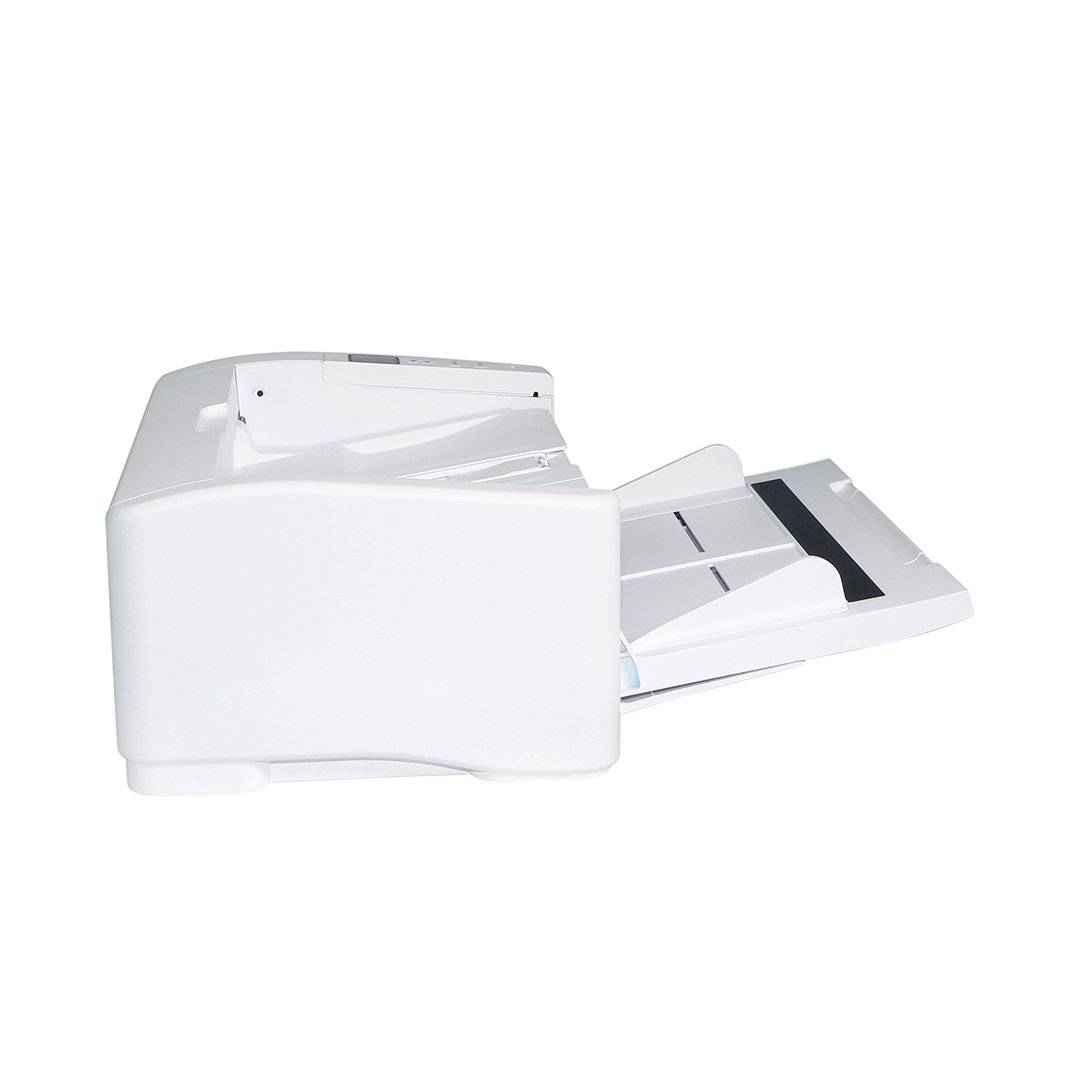

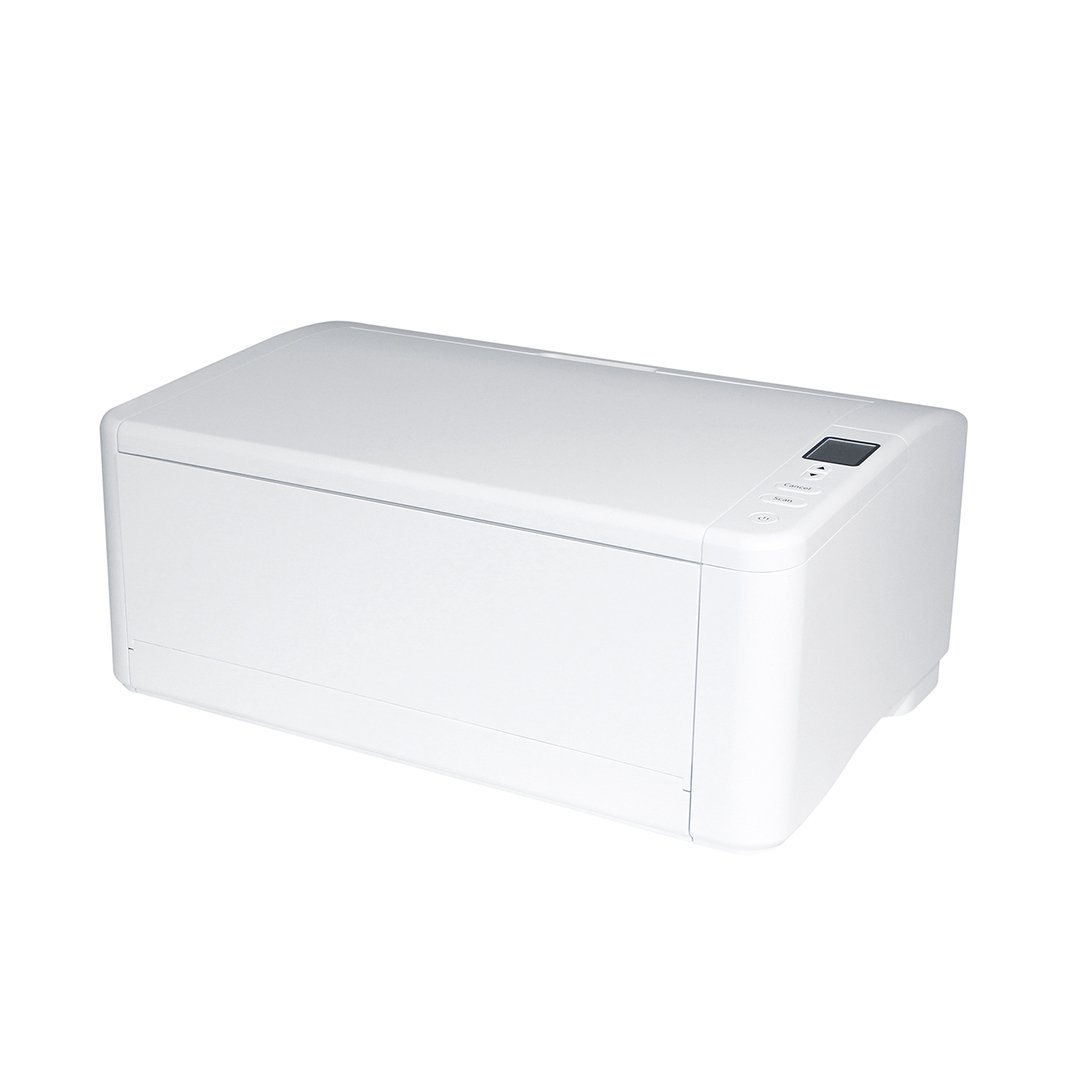

Avision AD6090N A3 Network Production Scanner
- High-speed scanning up to 90 ppm / 180 ipm
- Large 150-sheet automatic document feeder
- Supports documents up to A3 size
- Gigabit Ethernet and USB 3.2 connectivity
- 600 dpi optical and 1200 dpi output resolution
- Paper protection and ultrasonic double-feed detection
- Scans cards up to 1.44 mm thick
- Recommended daily volume of up to 25,000 pages
Avision AD6090N High-Speed A3 Network Scanner
The Avision AD6090N is a high-volume production scanner designed for organisations that need fast and dependable A3 document capture. It scans colour, grayscale and monochrome documents at up to 90 ppm and 180 ipm, helping teams process large batches efficiently.
Built-in Gigabit Ethernet and USB 3.2 connectivity support both shared network deployment and direct computer use. The AD6090N is suitable for banks, government departments, educational institutions, healthcare organisations, service bureaus and large businesses in Pakistan.
Fast Duplex Production Scanning
The AD6090N captures both sides of documents in one pass at up to 90 ppm and 180 ipm at 200 dpi and 300 dpi. Its 150-sheet automatic document feeder reduces interruptions during large scanning jobs, while the recommended daily volume of up to 25,000 pages supports demanding workflows.
A3 Document and Card Support
The scanner accepts documents up to 308 x 432 mm (A3). Its straight paper path supports media from 40 to 413 g/m², while the U-turn path accepts paper weights up to 210 g/m². Cards up to 1.44 mm thick can also be scanned.
Reliable Paper Handling
Paper-protection technology and ultrasonic double-feed detection help identify feeding problems and reduce the possibility of missed documents. Long-paper mode supports documents up to 240 inches at 200 dpi colour duplex scanning.
Network-Ready Document Capture
Connect the scanner directly through USB 3.2 or deploy it on a compatible network using RJ-45 Gigabit Ethernet. Scanned documents can be saved in PDF, JPEG, TIFF, Word, Excel, RTF, HTML and other popular formats.
Contact Tescom Engineering for the latest Avision AD6090N scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed A3 Network Production Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 90 ppm simplex / 180 ipm duplex |
| ADF Capacity | 150 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 1GB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 65 mm for single pages; 50 x 85 mm for multiple pages |
| ADF Maximum Size | 308 x 432 mm (A3) |
| Straight-Path Paper Weight | 40–413 g/m² |
| U-Turn-Path Paper Weight | 40–210 g/m² |
| Card Scanning | Cards up to 1.44 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic detection |
| Recommended Daily Volume | Up to 25,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Dimensions (W x D x H) | 460 x 680 x 198 mm |
| Weight | 12 kg |
| Power Consumption | Operation: <48W; Ready: <14W; Sleep: <3.1W; Off: <0.2W |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and Virtual Scanner Link |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
