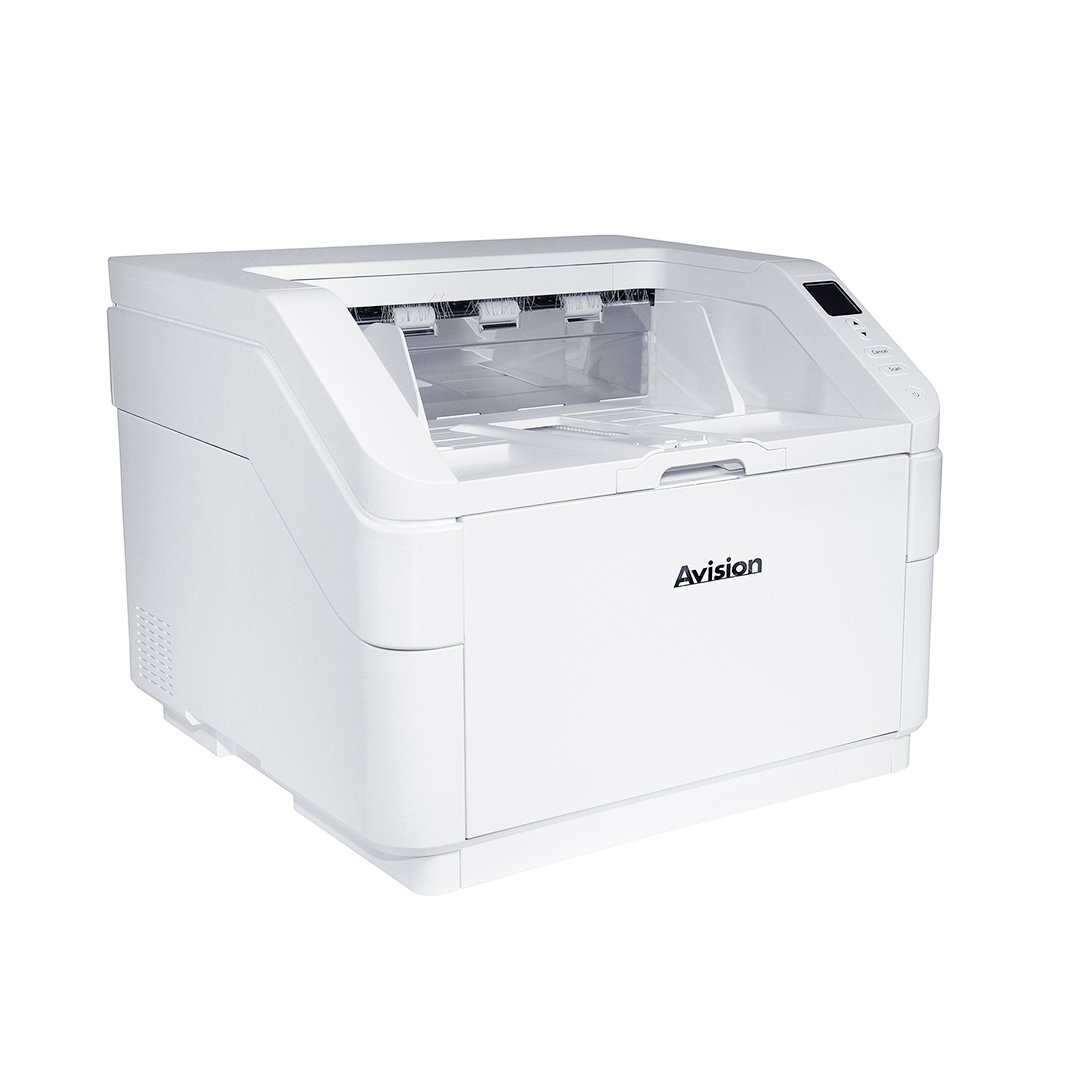

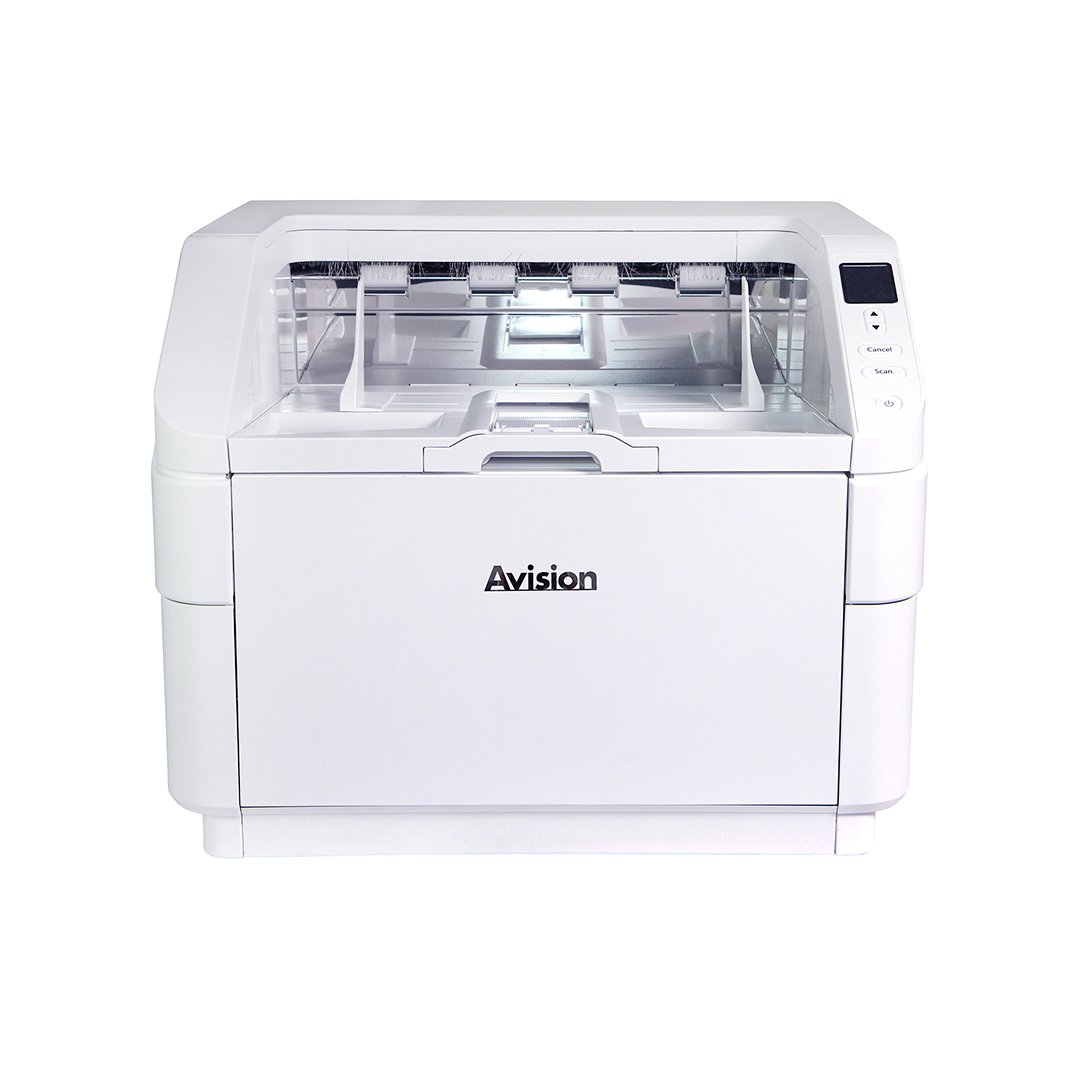

Avision AD8120U A3 Production Document Scanner
- High-speed scanning up to 120 ppm / 240 ipm
- Extra-large 500-sheet automatic document feeder
- Supports documents up to A3 size
- Fast USB 3.2 Gen 1×1 connectivity
- 600 dpi optical and 1200 dpi output resolution
- Paper protection and triple ultrasonic double-feed detection
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 100,000 pages
Avision AD8120U High-Volume A3 Production Scanner
The Avision AD8120U is a high-volume A3 production scanner designed for organisations that process extremely large quantities of documents. It scans colour, grayscale and monochrome documents at up to 120 ppm and 240 ipm, helping teams complete demanding digitisation projects efficiently.
Its extra-large 500-sheet automatic document feeder and USB 3.2 connectivity make the AD8120U suitable for dedicated production scanning workstations. It is an excellent choice for banks, government departments, service bureaus, educational institutions, healthcare organisations and large businesses in Pakistan.
High-Speed Duplex Production Scanning
The AD8120U captures both sides of a document in a single pass at up to 120 ppm and 240 ipm. It maintains this performance in black-and-white and colour at both 200 dpi and 300 dpi, providing consistent throughput for intensive scanning projects.
Extra-Large 500-Sheet ADF
The robust 500-sheet automatic document feeder reduces the need to reload paper during large scanning jobs. Combined with a recommended daily volume of up to 100,000 pages, it provides the capacity required for centralised scanning departments and continuous production workflows.
A3 Document and Card Support
The scanner accepts documents up to 308 x 432 mm (A3). Its straight paper path handles media from 20 to 413 g/m², while the U-turn path supports paper weights from 20 to 210 g/m². Embossed plastic cards up to 1.25 mm thick can also be scanned.
Reliable Feeding and Paper Protection
Paper-protection technology and triple ultrasonic double-feed detection help identify feeding problems, overlapping sheets and potential paper damage. These features improve feeding reliability and reduce the risk of missing pages during critical scanning jobs.
Long-Paper Scanning and USB Connectivity
Long-paper mode supports documents up to 240 inches at 200 dpi, 218 inches at 300 dpi and 59 inches at 600 dpi. USB 3.2 Gen 1×1 provides fast direct connectivity to a compatible production workstation.
Scanned documents can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel, RTF, XPS and HTML.
Contact Tescom Engineering for the latest Avision AD8120U scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Volume A3 Production Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 120 ppm simplex / 240 ipm duplex |
| ADF Capacity | 500 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 1GB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| ADF Minimum Size | 50 x 65 mm for single pages; 50 x 85 mm for multiple pages |
| ADF Maximum Size | 308 x 432 mm (A3) |
| Straight-Path Paper Weight | 20–413 g/m² |
| U-Turn-Path Paper Weight | 20–210 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Feed Protection | Paper-protection technology |
| Double-Feed Detection | Triple ultrasonic detection |
| Recommended Daily Volume | Up to 100,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Dimensions (W x D x H) | 460 x 784 x 362 mm |
| Weight | 25 kg |
| Power Consumption | Operation: <92W; Ready: <17W; Sleep: <2.9W; Off: <0.28W |
| Acoustical Noise | Operation: <55 dB; Ready: <25 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan and WIA Driver |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
