Avision AD8130zNP A3 Network Production Scanner
- High-speed scanning up to 150 ppm / 300 ipm
- Extra-large 600-sheet automatic document feeder
- Supports documents up to A3 size
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical and 1200 dpi output resolution
- Paper protection and triple ultrasonic double-feed detection
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 100,000 pages

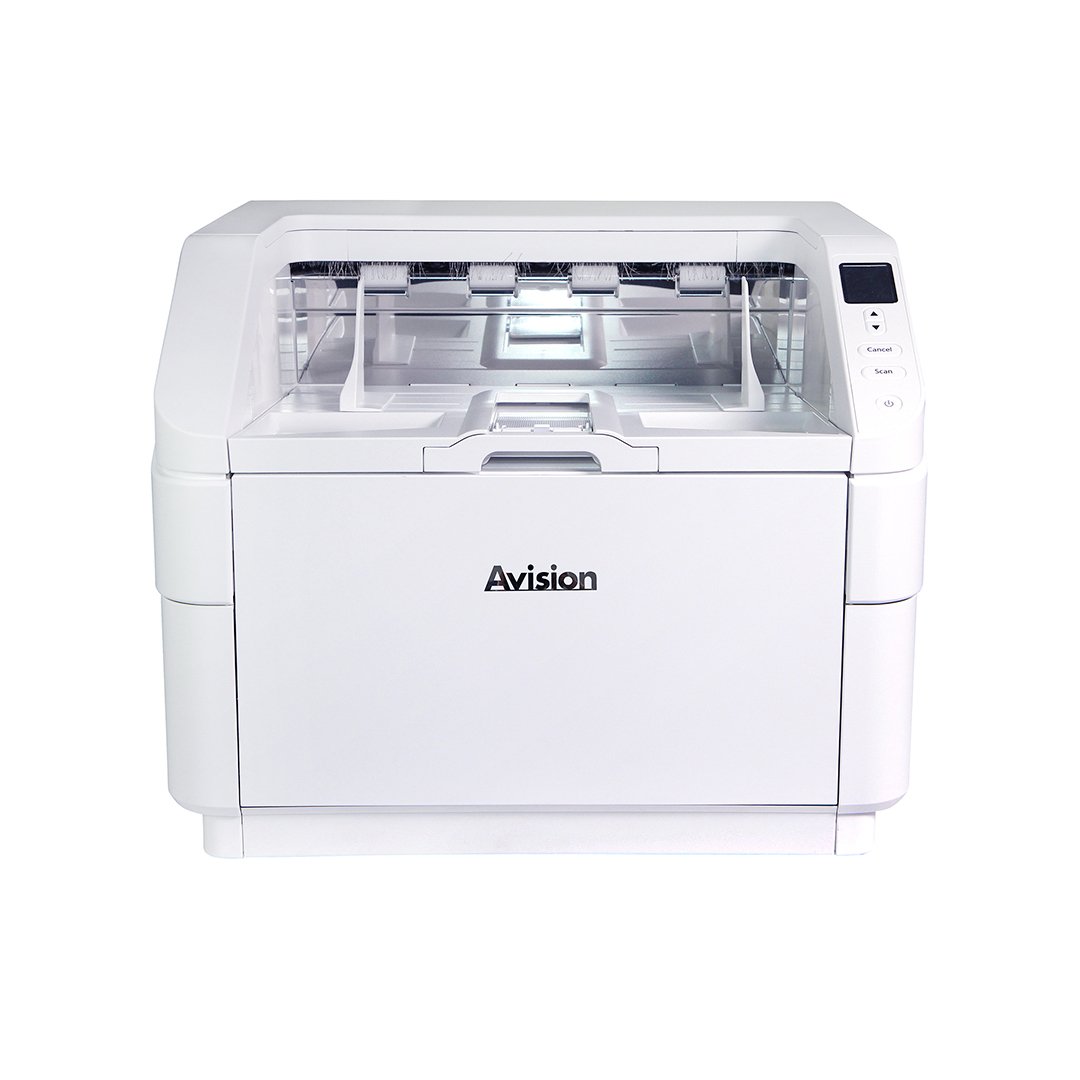

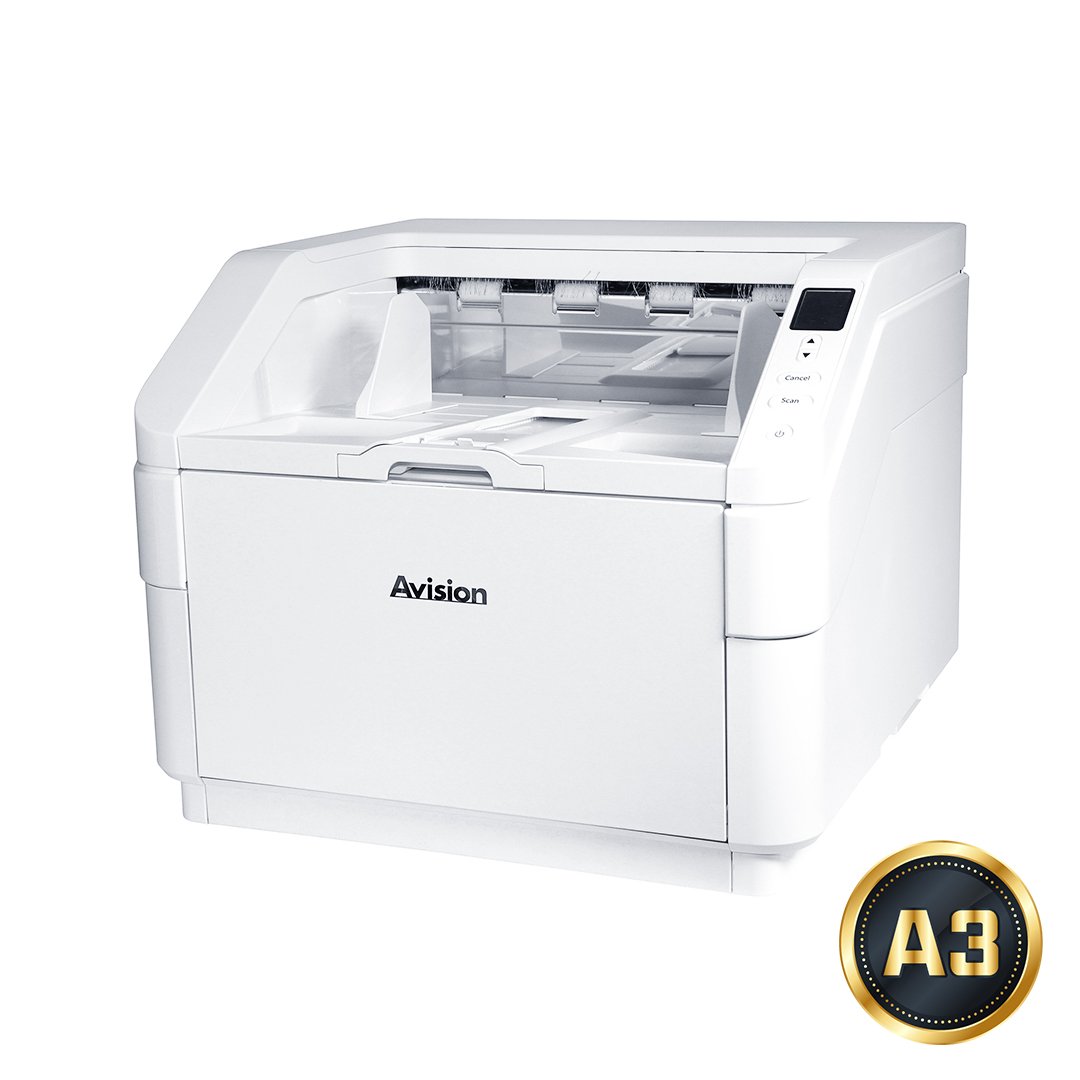

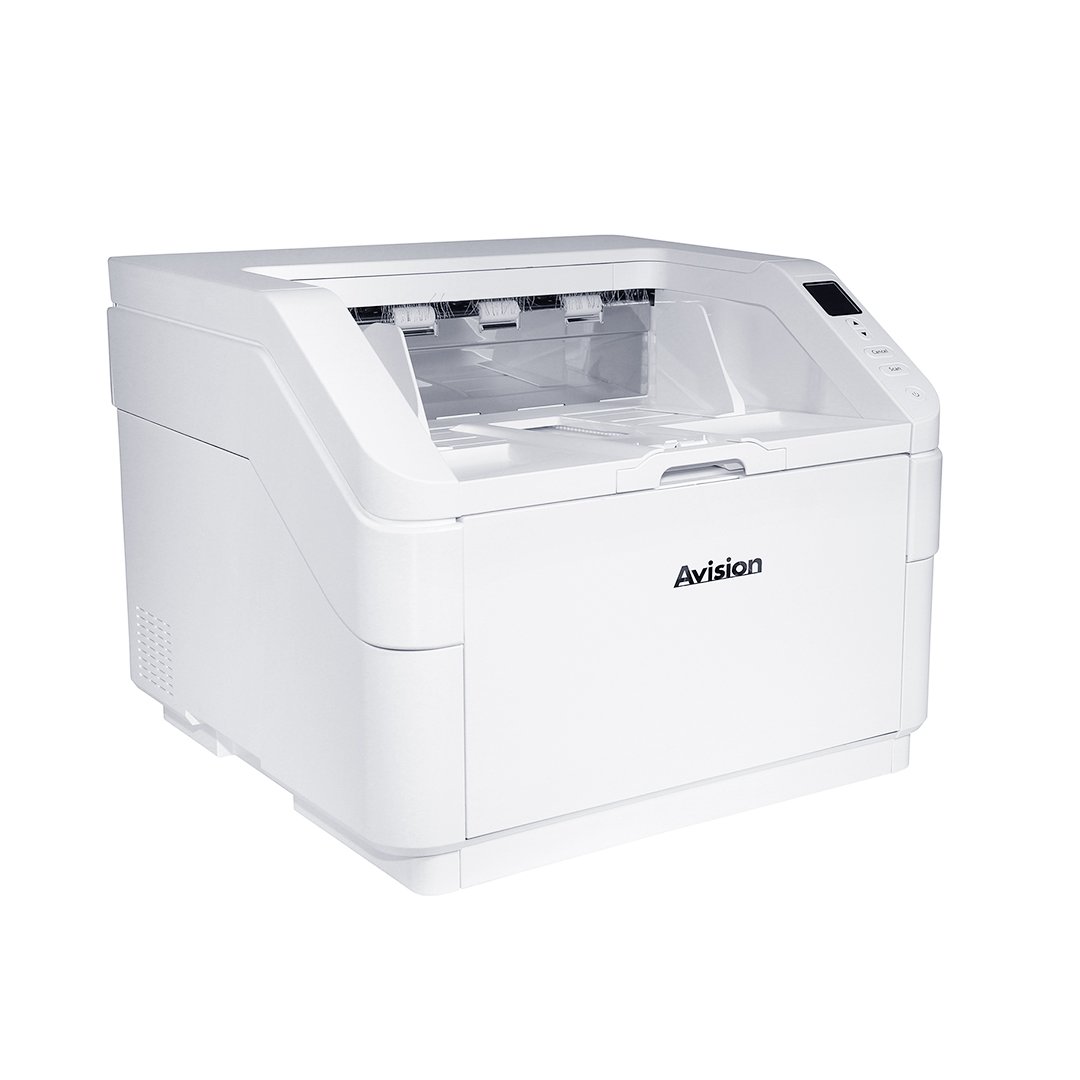

Avision AD8130zNP High-Volume A3 Production Scanner
The Avision AD8130zNP is a high-performance A3 production scanner designed for organisations that process extremely large quantities of documents. It scans colour, grayscale and monochrome documents at up to 150 ppm and 300 ipm, making it suitable for centralised scanning departments and demanding digitisation projects.
With an extra-large 600-sheet automatic document feeder, USB 3.2 and built-in Gigabit Ethernet, the AD8130zNP supports efficient direct and network-based scanning. It is an excellent choice for banks, government departments, service bureaus, educational institutions, healthcare organisations and large businesses in Pakistan.
High-Speed Duplex Production Scanning
The AD8130zNP captures both sides of a document in a single pass. It scans at up to 150 ppm and 300 ipm at 200 dpi, while performance at 300 dpi reaches 130 ppm and 260 ipm. Its recommended daily volume of up to 100,000 pages makes it suitable for continuous high-volume workflows.
Extra-Large 600-Sheet ADF
The robust 600-sheet automatic document feeder reduces the need to reload paper during large scanning jobs. It supports documents up to 308 x 432 mm in A3 size, helping organisations digitise mixed batches of standard office documents, large forms and business records.
Flexible Paper and Card Handling
The straight paper path handles media from 27 to 413 g/m², while the U-turn path supports paper weights from 27 to 210 g/m². The scanner also accepts embossed plastic cards up to 1.25 mm thick. Long-paper mode supports documents up to 240 inches at 200 dpi, 218 inches at 300 dpi and 59 inches at 600 dpi.
Reliable Feeding and Paper Protection
Paper-protection technology and triple ultrasonic double-feed detection help identify feeding problems, overlapping sheets and potential paper damage. These features provide dependable document handling and reduce the risk of missing pages during critical production scanning tasks.
USB and Network Connectivity
Connect the scanner directly to a workstation through USB 3.2 or deploy it across a compatible network using RJ-45 Gigabit Ethernet. Scanned documents can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel, RTF, XPS and HTML.
Contact Tescom Engineering for the latest Avision AD8130zNP scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Volume A3 Network Production Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed at 200 dpi | Up to 150 ppm simplex / 300 ipm duplex |
| Scanning Speed at 300 dpi | Up to 130 ppm simplex / 260 ipm duplex |
| ADF Capacity | 600 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 1GB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 65 mm for single pages; 50 x 85 mm for multiple pages |
| ADF Maximum Size | 308 x 432 mm (A3) |
| Straight-Path Paper Weight | 27–413 g/m² |
| U-Turn-Path Paper Weight | 27–210 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Feed Protection | Paper-protection technology |
| Double-Feed Detection | Triple ultrasonic detection |
| Recommended Daily Volume | Up to 100,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Dimensions (W x D x H) | 460 x 784 x 362 mm |
| Weight | 22.4 kg |
| Power Consumption | Operation: <73W; Ready: <14W; Sleep: <2.7W; Off: <0.2W |
| Acoustical Noise | Operation: <55 dB; Ready: <25 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and Virtual Scanner Link |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
