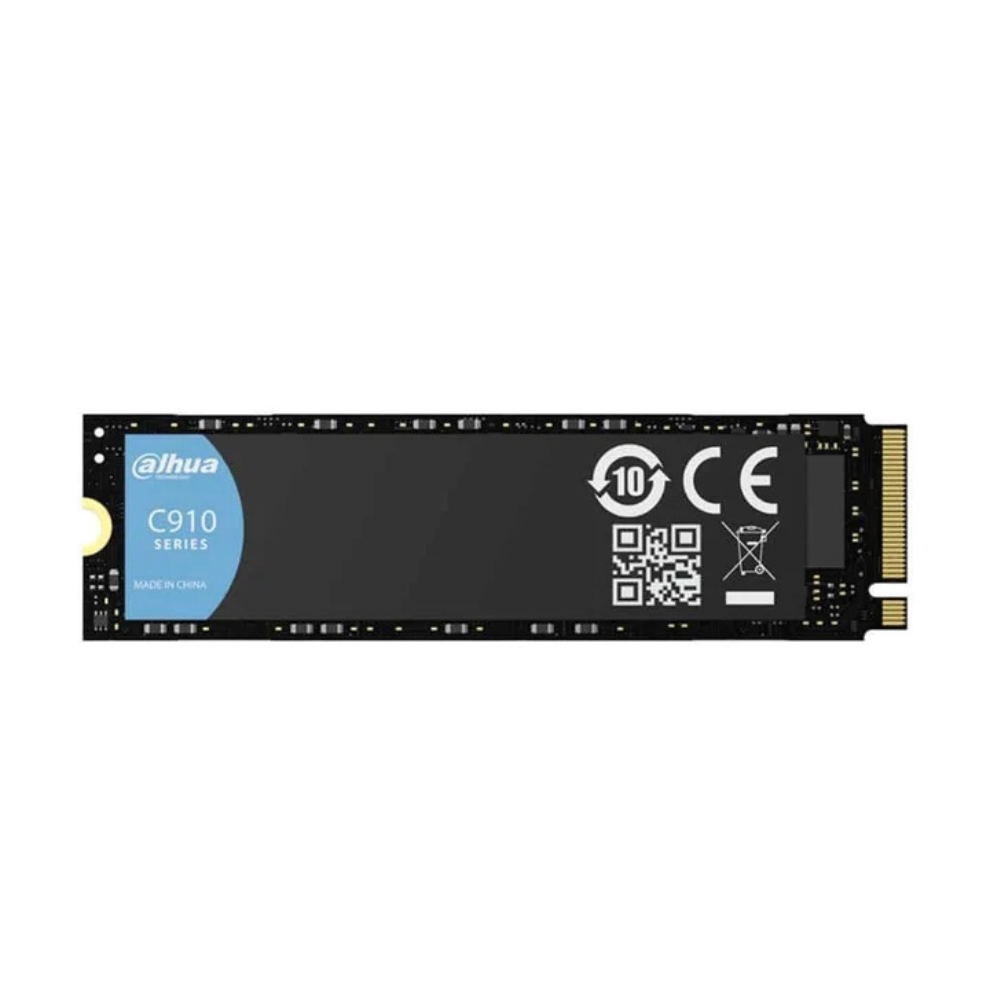

Dahua C910 256GB PCIe Gen3 x4 NVMe M.2 SSD DHI-SSD-C910N256G
- 256GB NVMe SSD with PCIe Gen3 x4 Interface & NVMe 1.4 Protocol
- Sequential Read Speed Up to 2500MB/s & Write Speed Up to 2000MB/s
- M.2 2280 Form Factor with 3D NAND Flash & SLC Cache
- Supports S.M.A.R.T, TRIM, LDPC ECC & 3-Year Limited Warranty
Dahua C910 256GB PCIe Gen3 x4 NVMe M.2 SSD DHI-SSD-C910N256G
Product Features
256GB NVMe Storage: The Dahua C910 DHI-SSD-C910N256G provides 256GB of solid-state storage for compatible laptops, desktop computers and other systems equipped with an M.2 PCIe NVMe slot.
PCIe Gen3 x4 Interface: The C910 uses a PCIe Gen 3.0 x4 interface to provide high-speed data transfer and low-latency storage performance.
NVMe 1.4 Protocol: Compatibility with the NVMe 1.4 protocol enables efficient communication between the SSD and compatible computer systems.
Up to 2500MB/s Sequential Read: The 256GB C910 delivers sequential read speeds of up to 2500MB/s for faster access to operating systems, applications and stored files.
Up to 2000MB/s Sequential Write: Sequential write speeds reach up to 2000MB/s, providing efficient performance when transferring or writing data.
Random Read & Write Performance: The 256GB version delivers 4K random read performance of up to 88K IOPS and random write performance of up to 95K IOPS.
3D NAND Flash: The Dahua C910 uses 3D NAND Flash memory for solid-state data storage in its compact M.2 form factor.
SLC Cache: High-performance SLC caching is supported to help improve storage performance during applicable read and write operations.
S.M.A.R.T Support: S.M.A.R.T functionality allows compatible monitoring software to access drive information and monitor SSD operating status.
TRIM Support: TRIM functionality helps maintain efficient read and write performance by allowing the operating system to identify storage blocks that are no longer required.
LDPC ECC: LDPC error correction technology helps improve data reliability by detecting and correcting applicable data errors.
Low Power Consumption: The 256GB model is rated at approximately 0.53W idle power consumption and up to 2.95W maximum power consumption.
Compact M.2 2280 Design: Measuring 80 × 22 × 2.25 mm and weighing a maximum of 8g, the C910 is suitable for compatible compact laptops and desktop systems.
128TBW Endurance: The 256GB version has a specified endurance rating of 128TBW.
3-Year Limited Warranty: The Dahua C910 is covered by a 3-year limited warranty or until the specified maximum TBW is reached, whichever occurs first.
Product Specifications
| Brand | Dahua |
| Series | C910 |
| Model | DHI-SSD-C910N256G |
| Product Type | Internal NVMe Solid State Drive |
| Capacity | 256GB |
| Interface | PCIe Gen 3.0 x4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Memory Component | 3D NAND Flash |
| Sequential Read Speed | Up to 2500MB/s |
| Sequential Write Speed | Up to 2000MB/s |
| 4K Random Read | Up to 88K IOPS |
| 4K Random Write | Up to 95K IOPS |
| S.M.A.R.T | Supported |
| TRIM | Supported |
| Garbage Collection | Supported |
| Error Correction | LDPC ECC |
| SLC Cache | Supported |
| Idle Power Consumption | 0.53W |
| Maximum Power Consumption | 2.95W |
| TBW | 128TB |
| MTBF | 1,500,000 Hours |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% Non-Condensing |
| Vibration Resistance | 10–200Hz, 0.5G |
| Dimensions | 80 × 22 × 2.25 mm |
| Net Weight | Maximum 8g |
| Warranty | 3-Year Limited Warranty / 128TBW, Whichever Comes First |
Ideal For
- Laptop Storage Upgrades
- Desktop PC Storage Upgrades
- Operating System Installation
- Applications & Everyday Computing
- Replacing Compatible SATA Storage
- Fast File Access & Data Transfers
Frequently Asked Questions
What is the capacity of the Dahua C910 SSD?
This Dahua C910 model provides 256GB of NVMe solid-state storage.
What is the model number of the Dahua C910 256GB?
The product model is DHI-SSD-C910N256G.
What is the read speed of the Dahua C910 256GB?
The Dahua C910 256GB provides sequential read speeds of up to 2500MB/s.
What is the write speed of the Dahua C910 256GB?
The drive provides sequential write speeds of up to 2000MB/s.
Is the Dahua C910 a PCIe Gen3 NVMe SSD?
Yes. It uses a PCIe Gen 3.0 x4 interface and supports the NVMe 1.4 protocol.
What form factor does the Dahua C910 use?
The C910 uses the M.2 2280 form factor and measures 80 × 22 × 2.25 mm.
Does the Dahua C910 support TRIM and S.M.A.R.T?
Yes. The C910 supports both TRIM and S.M.A.R.T functionality, along with Garbage Collection and LDPC ECC.
What is the endurance rating of the Dahua C910 256GB?
The 256GB version has a specified endurance rating of 128TBW.
What is the warranty for the Dahua C910 256GB?
The drive carries a 3-year limited warranty or coverage until 128TBW is reached, whichever occurs first.
