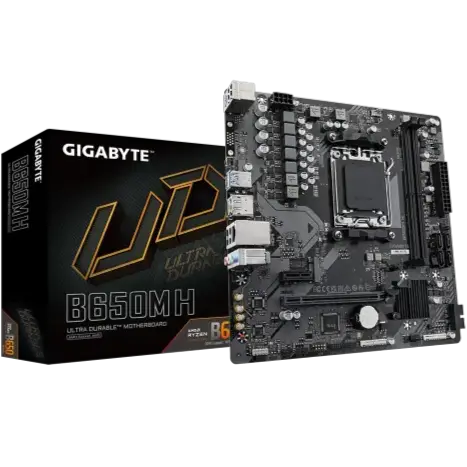

GIGABYTE B650M H AMD B650 AM5 DDR5 Motherboard

AMD B650 Motherboard for Ryzen 7000, 8000 and 9000 Series

The GIGABYTE B650M H is a Micro ATX motherboard based on the AMD B650 chipset and AM5 socket. It supports compatible AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors, providing a modern platform for gaming, productivity, content creation and everyday desktop systems.

Featuring dual-channel DDR5 memory, a 5+2+2 phase digital VRM solution, PCIe 4.0 x4 M.2 storage, GbE LAN and GIGABYTE technologies including Smart Fan 6, EZ-Latch and Q-Flash Plus, the B650M H provides essential performance and connectivity in a compact motherboard design.

Product Features

AMD AM5 Socket: Supports compatible AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors using the modern AM5 platform.

AMD B650 Chipset: The AMD B650 chipset provides a capable foundation for modern Ryzen desktop systems with DDR5 memory and high-speed storage support.

5+2+2 Phase Digital VRM: The digital power design provides stable power delivery for compatible AMD Ryzen processors and system components.

Dual-Channel DDR5: Two SMD DDR5 DIMM slots provide dual-channel memory support for modern desktop PC configurations.

DDR5-6400 (OC): Supports high-speed DDR5 memory configurations up to 6400MHz (OC), depending on the installed processor, memory modules and system configuration.

AMD EXPO Support: Compatible AMD EXPO memory profiles provide convenient configuration and optimization of supported DDR5 memory kits.

Intel XMP Support: The motherboard also supports compatible Intel XMP memory modules, providing additional flexibility when selecting DDR5 RAM.

PCIe 4.0 x4 M.2: A high-speed PCIe 4.0 x4 M.2 connector provides support for compatible NVMe SSDs.

PCIe x16 Expansion: A PCIe x16 slot provides connectivity for compatible dedicated graphics cards and other supported expansion devices.

EZ-Latch: GIGABYTE EZ-Latch provides a quick-release design for the PCIe x16 slot, helping simplify graphics card removal during upgrades and maintenance.

GbE LAN: Integrated Gigabit Ethernet provides reliable wired networking for internet access, gaming, streaming and local network transfers.

HDMI and DisplayPort: HDMI and DisplayPort provide digital display connectivity when used with a compatible processor supporting integrated graphics output.

Smart Fan 6: Smart Fan 6 combines multiple temperature sensors and hybrid fan headers to provide flexible system cooling management.

FAN STOP: Supported fans can be configured to stop under suitable operating conditions, helping reduce unnecessary system noise.

Q-Flash Plus: Q-Flash Plus enables supported BIOS updates without requiring the CPU, memory or graphics card to be installed.

Product Specifications

*Processor compatibility and supported memory speeds may depend on the motherboard revision, installed BIOS version, processor and memory configuration.

Ryzen 7000, 8000 and 9000 Series Support

The GIGABYTE B650M H uses the AMD AM5 socket and supports compatible Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors. This provides flexibility for users building or upgrading a modern AMD desktop PC.

DDR5 Memory with EXPO and XMP

Two SMD DDR5 DIMM slots provide dual-channel memory support. Compatible AMD EXPO and Intel XMP profiles provide additional flexibility when configuring supported high-speed DDR5 memory.

5+2+2 Phase Digital VRM

The 5+2+2 phase digital VRM solution is designed to provide stable power delivery to the processor and other critical motherboard components during everyday and demanding workloads.

PCIe 4.0 x4 M.2 NVMe Storage

The PCIe 4.0 x4 M.2 connector supports compatible high-speed NVMe SSDs, helping deliver responsive system startup, fast application loading and efficient file transfers.

PCIe x16 with EZ-Latch

The motherboard provides a PCIe x16 slot for compatible graphics cards. GIGABYTE EZ-Latch adds a quick-release mechanism that helps simplify graphics card removal during maintenance or hardware upgrades.

Smart Fan 6 Cooling Management

Smart Fan 6 uses multiple temperature sensors and hybrid fan headers to provide flexible cooling management. FAN STOP functionality can stop compatible fans when operating conditions allow, helping reduce system noise.

HDMI and DisplayPort Connectivity

HDMI and DisplayPort provide flexible digital display connectivity. Availability and capabilities of motherboard display outputs depend on the graphics functionality of the installed AMD processor.

Q-Flash Plus BIOS Update

GIGABYTE Q-Flash Plus allows supported BIOS updates without installing the CPU, memory or graphics card. This can be particularly useful when preparing the motherboard for a newer supported processor.

Important Compatibility Information

Before purchasing, confirm compatibility between your intended AMD Ryzen processor, motherboard revision and installed BIOS version. Ryzen 9000 Series processors may require an appropriate BIOS version depending on the motherboard revision and manufacturing date.

DDR5 memory speed depends on the processor, installed memory modules, BIOS and system configuration. Speeds listed as OC require compatible memory and appropriate configuration.
