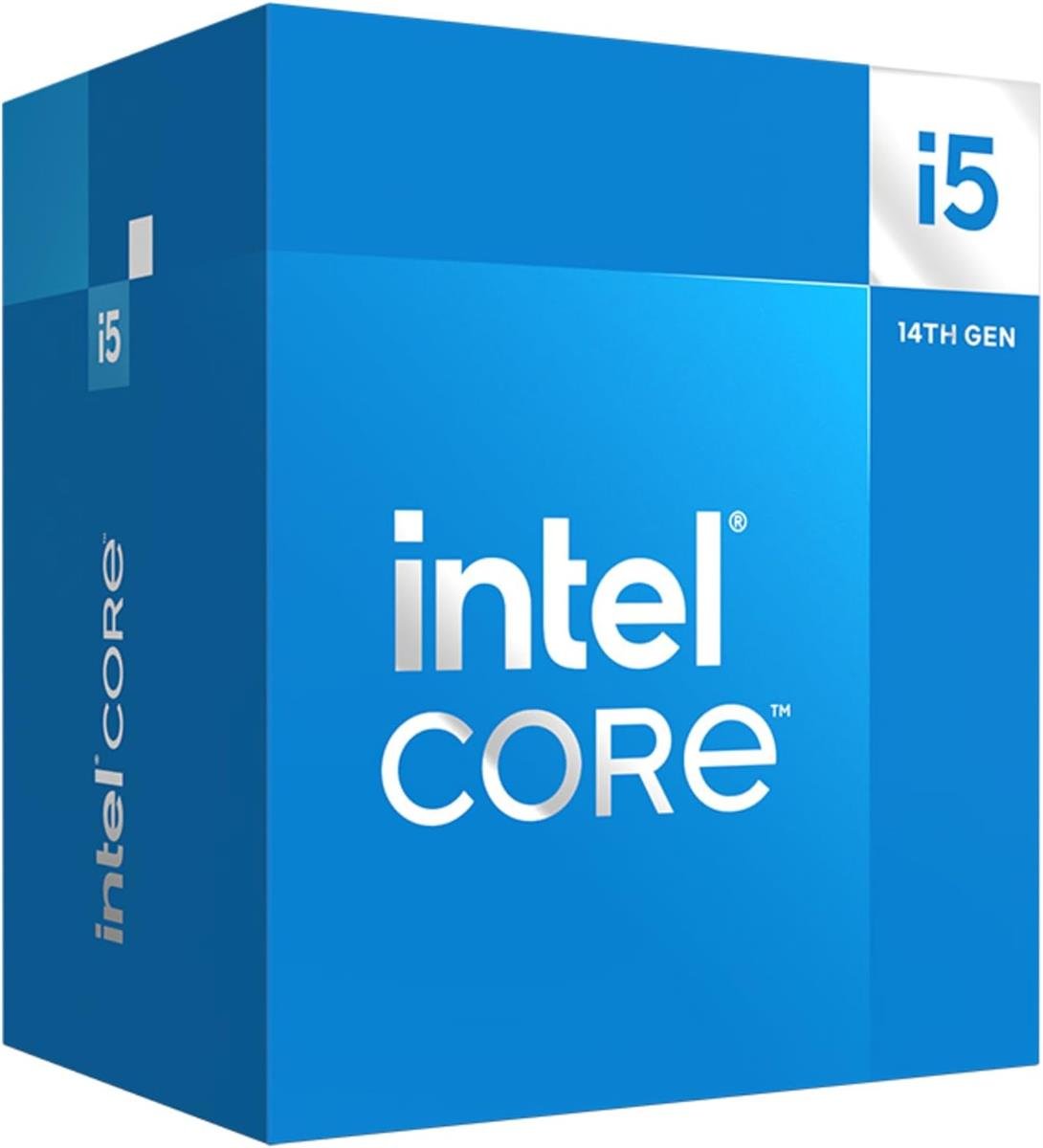

Intel Core i5-14500 14th Gen Desktop Processor

14th Generation Intel Core i5 Processor for Gaming and Productivity

The Intel Core i5-14500 is a 14th Generation desktop processor designed for compatible LGA1700 systems. It combines 6 Performance-cores and 8 Efficient-cores for a total of 14 cores and 20 threads, providing strong performance for gaming, productivity, content creation, multitasking and general desktop workloads.

With a maximum turbo frequency of up to 5.00GHz, 24MB Intel Smart Cache, support for DDR5 and DDR4 memory, PCIe 5.0 connectivity and integrated Intel UHD Graphics 770, the Core i5-14500 provides a balanced platform for modern desktop PC builds.

Product Features

14-Core Hybrid Architecture: Combines 6 Performance-cores with 8 Efficient-cores for a total of 14 physical cores.

20 Processing Threads: Intel Hyper-Threading support helps provide up to 20 threads for multitasking and multi-threaded applications.

Up to 5.00GHz Turbo: Performance-cores can reach a maximum turbo frequency of up to 5.00GHz for demanding applications and lightly threaded workloads.

Efficient-Core Performance: The eight Efficient-cores can boost up to 3.70GHz to handle background and highly parallel workloads efficiently.

24MB Intel Smart Cache: Shared Intel Smart Cache helps improve processor responsiveness and data access across supported workloads.

11.5MB L2 Cache: Additional L2 cache contributes to efficient data handling and performance across multi-threaded applications.

DDR5 & DDR4 Support: Supports up to DDR5-4800 and DDR4-3200 memory, giving users flexibility when selecting a compatible LGA1700 motherboard.

Dual-Channel Memory: Supports two memory channels with maximum memory bandwidth up to 76.8GB/s.

Up to 192GB Memory: Supports memory capacities up to 192GB depending on motherboard, memory type and configuration.

ECC Memory Support: ECC memory is supported when paired with a compatible motherboard platform and memory configuration.

PCIe 5.0 & 4.0: Supports PCI Express 5.0 and PCIe 4.0 with up to 20 PCIe lanes for compatible graphics cards and high-speed storage devices.

Intel UHD Graphics 770: Integrated graphics provide display capability without requiring a dedicated graphics card for supported workloads.

Intel Quick Sync Video: Hardware-accelerated video processing can improve supported media encoding, transcoding and streaming workloads.

Intel Thread Director: Helps supported operating systems assign workloads intelligently between Performance-cores and Efficient-cores.

Intel Turbo Boost 2.0: Dynamically increases processor frequency when additional performance is required and thermal and power conditions allow.

65W Processor Base Power: The processor has a base power rating of 65W and can reach up to 154W maximum turbo power.

LGA1700 Socket: Designed for compatible Intel 600-series and 700-series motherboards with appropriate chipset and BIOS support.

Product Specifications

*Maximum memory capacity, ECC support and available features depend on motherboard chipset, BIOS version and memory configuration.

14 Cores and 20 Threads

The Intel Core i5-14500 combines six Performance-cores and eight Efficient-cores, providing 14 total cores and 20 threads. This makes it suitable for users who need strong multitasking capability alongside gaming and everyday desktop performance.

Up to 5.00GHz Turbo Performance

The Performance-cores can boost up to 5.00GHz when thermal and power conditions allow, providing responsive performance for games, office software, creative applications and other demanding workloads.

DDR5 and DDR4 Memory Support

Support for DDR5-4800 and DDR4-3200 provides flexibility when selecting a compatible motherboard. Users can choose a newer DDR5 platform or a more cost-effective DDR4 configuration depending on system requirements.

Intel UHD Graphics 770

The integrated Intel UHD Graphics 770 allows display output without requiring a dedicated graphics card. It also supports Intel Quick Sync Video and multiple displays depending on motherboard connectivity.

PCIe 5.0 Connectivity

PCI Express 5.0 and PCIe 4.0 support provides high-bandwidth connectivity for compatible graphics cards and storage devices. The processor supports up to 20 PCIe lanes.

65W Base Power

The processor has a base power rating of 65W and can reach up to 154W maximum turbo power. A suitable motherboard power design and compatible CPU cooling solution should be used for stable sustained performance.

Important Compatibility Information

The Intel Core i5-14500 requires a compatible LGA1700 motherboard. Some Intel 600-series and 700-series motherboards may require a BIOS update before supporting 14th Generation processors.

Memory speed, ECC support, integrated graphics output and PCIe functionality depend on the selected motherboard and overall system configuration.
