KODAK S2085f ADF Flatbed Document Scanner
- Scanning Speed: Up to 85 ppm / 170 ipm for fast duplex scanning.
- Feeder Capacity: 300-sheet automatic document feeder.
- Integrated Flatbed: Built-in A4 flatbed for books, passports and fragile documents.
- Daily Volume: Recommended for up to 20,000 pages per day.
- Resolution: 600 dpi optical resolution with image output up to 1200 dpi.
- Connectivity: USB 3.2 Gen 1×1 and Gigabit Ethernet.
- Display: 3.5-inch color touchscreen with operator control buttons.
- Image Capture: Dual Light Illumination and intelligent document protection.
KODAK S2085f ADF Flatbed Document Scanner
The KODAK S2085f Scanner combines high-capacity batch scanning with an integrated A4 flatbed. It supports businesses in Pakistan processing loose paperwork alongside books, passports and fragile originals requiring individual placement.
85 ppm Duplex Scanning with a 300-Sheet Feeder
Scan at up to 85 pages per minute or 170 images per minute in duplex mode. The automatic document feeder holds up to 300 sheets of 80 g/m² paper, reducing frequent loading during large scanning jobs.

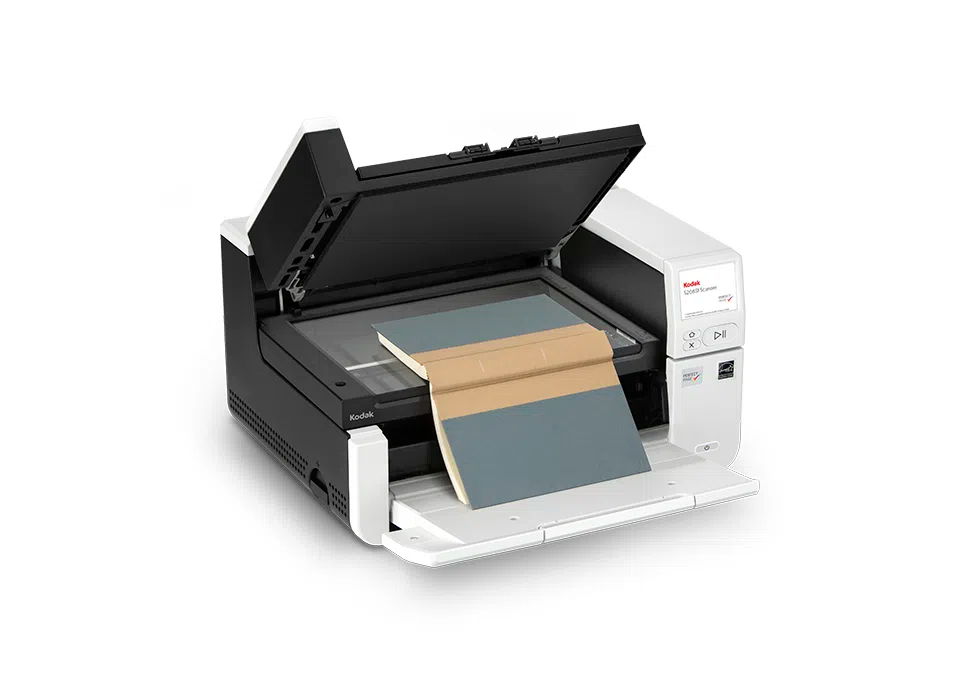

Flexible Document Handling
Use the ADF for batches of loose pages and the flatbed for originals unsuitable for automatic feeding. A manually selected rear straight-through paper path provides an alternative to the front output tray. Controlled stacking, ultrasonic multifeed detection and Intelligent Document Protection help manage feeding issues.
Clear Images and Flexible Output
Dual Light Illumination supports clear capture at an optical resolution of 600 dpi. Image output is available up to 1200 dpi. Supported applications provide formats including searchable PDF, TIFF, JPEG, Word and Excel for different document storage and processing requirements.
Network Connectivity and Touchscreen Operation
Gigabit Ethernet supports a shared departmental scanning setup, while USB 3.2 Gen 1×1 provides direct computer connectivity. Operators can access scanning functions through the 3.5-inch color touchscreen. Scanned image data is processed through volatile memory and effectively erased from the scanner upon shutdown; exported files remain in their storage destinations.
Technical Specifications
| Brand | KODAK |
|---|---|
| Model | S2085f |
| Scanner Type | A4 document scanner with ADF and integrated flatbed |
| Scanning Speed | Up to 85 ppm / 170 ipm |
| Recommended Daily Volume | Up to 20,000 pages |
| Feeder Capacity | Up to 300 sheets of 80 g/m² paper |
| Recommended PC Configuration | Intel Core i3 at 3.5 GHz or higher; USB 3.0 or 2.0; 3.43 GB RAM or more |
| Maximum ADF Document Size | 216 mm × 4.06 m; supported size depends on resolution and compression |
| Maximum Integrated Flatbed Scan Size | 220.7 × 304.8 mm |
| Minimum Document Size | 63.5 × 71.1 mm |
| Paper Weight | 34–433 g/m²; use rear exit for paper above 200 g/m² |
| Continuous Cropping Mode | Supports documents of unlimited length in the applicable scanning mode |
| Paper Path Options | Front output tray or manually selected rear straight-through path |
| Paper Handling Features | Controlled stacking, enhanced jam recovery, Intelligent Document Protection, interactive multifeed with image display, ultrasonic multifeed detection, continuous scanning mode, Snap to Size and rear exit |
| Optical Resolution | 600 dpi |
| Image Output Resolution | Up to 1200 dpi |
| Scanning Technology | Dual RGB LED illumination; CIS (CMOS); 8-bit grayscale; 24-bit color output; 48-bit color capture |
| Output Formats | BMP, JPEG, PDF, PNG, multipage TIFF, single-page TIFF, searchable PDF, Microsoft Word, Microsoft Excel and RTF; availability depends on software |
| Connectivity | USB 3.2 Gen 1×1; USB 2.0 compatible; 10/100/1000 Ethernet |
| Network Protocols | DHCP or static IP; TCP/IP |
| Control Panel | 3.5-inch (89 mm) graphical color touchscreen LCD with operator control buttons |
| Bundled Software Options | Capture Pro Limited Edition or Smart Touch; choose and download from Kodak |
| Optional Software | Capture Pro Software and Info Input Solution |
| Drivers | TWAIN, ISIS, WIA; Linux TWAIN and SANE |
| Software Certifications | Citrix certified and KOFAX certified |
| Windows Compatibility | Windows 10 (32/64-bit), Windows 11 Pro (64-bit), Windows Server 2016/2019/2022 LTSC (64-bit) |
| Linux Compatibility | Ubuntu 18.04/20.04/22.04 (64-bit) and selected openSUSE/SUSE Linux Enterprise versions; Linux network scanning is not supported |
| Supported Barcodes | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A and UPC-E |
| Archival Standard | FADGI 2023: Documents (Unbound): Modern Textual Records |
| Dimensions with Tray Upright (W × D × H) | 457.2 × 370.84 × 254 mm |
| Weight | 17 kg |
| Electrical Requirements | 100–240V; 50–60Hz |
| Power Consumption | Running: <70W; sleep: <4.7W; standby: <0.3W |
| Operating Temperature | 10–35°C |
| Operating Humidity | 15–80% RH |
| Acoustical Noise | Off/ready: <20 dB(A); scanning: <60 dB(A) |
| Data Security | Scanned image data is processed through volatile memory and effectively erased from the scanner upon shutdown |
| Environmental Certifications | ENERGY STAR Qualified, EPEAT Gold and 2008 EuP |
KODAK S2085f Scanner Price in Pakistan
Contact Tescom Engineering for the latest KODAK S2085f Scanner price in Pakistan, current availability and ordering details.
