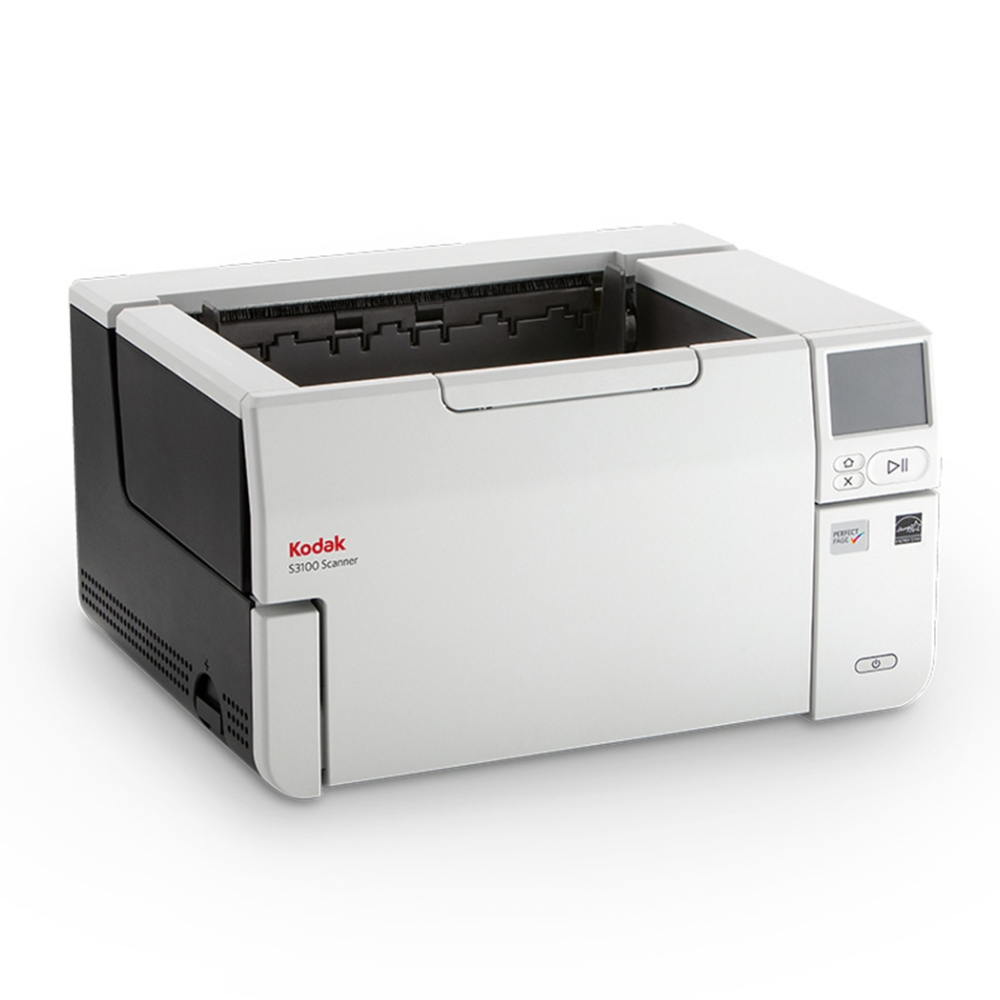

KODAK S3100 A3 High-Speed Document Scanner 100ppm 200ipm 300-Sheet ADF USB Ethernet
- High-Speed A3 Scanning up to 100ppm / 200ipm with 300-Sheet ADF
- 600 dpi Optical Resolution with Dual RGB LED Illumination CIS Technology
- USB 3.2 Gen 1 and 10/100/1000 Ethernet Connectivity
- SurePath Intelligent Document Feed, Straight-Through Paper Path & 45,000 Pages/Day
KODAK S3100 A3 High-Speed Document Scanner 100ppm 200ipm 300-Sheet ADF USB Ethernet
Product Features
The KODAK S3100 is a compact high-speed A3 document scanner designed for demanding document digitization, archival and business scanning environments. It combines a straight-through paper path, high-speed scanning and network connectivity in a professional document scanning platform.
With throughput speeds of up to 100 pages per minute (ppm) and 200 images per minute (ipm), the S3100 is designed for high-volume document processing. Its recommended daily scanning volume is up to 45,000 pages, making it suitable for organizations with substantial document workflows.
The 300-sheet automatic document feeder supports paper weighing from 27 to 433 g/m² and handles documents ranging from small sheets to exceptionally long documents. The straight-through paper path can accommodate documents up to 305 mm × 4.06 m.
SurePath intelligent document feed technology provides controlled stacking, enhanced jam recovery, Intelligent Document Protection, ultrasonic multifeed detection, interactive multifeed detection with image display and Length Multifeed Detection. Continuous scanning and cropping modes support extended document workflows.
Dual RGB LED illumination CIS technology provides up to 600 dpi optical resolution and image output of up to 1200 dpi. The scanner supports 24-bit color output, 8-bit grayscale output and 48-bit color capture for detailed document imaging.
Connectivity includes USB 3.2 Gen 1×1 with USB 2.0 compatibility and 10/100/1000 Ethernet. Network configuration supports DHCP or static IP addressing and TCP/IP, allowing the scanner to be integrated into wired office networks.
The 3.5-inch graphical color touchscreen LCD provides operator control directly from the scanner. Bundled Capture Pro Limited Edition and Smart Touch software, along with TWAIN, ISIS and WIA drivers, support a range of professional document capture workflows.
Technical Specifications
| Brand | KODAK |
| Model | S3100 |
| Product Type | High-Speed A3 Document Scanner |
| Scanning Speed | 100 ppm / 200 ipm |
| Recommended Daily Volume | Up to 45,000 pages per day |
| ADF Capacity | Up to 300 sheets of 80 g/m² paper |
| Maximum Document Size | 305 mm × 4.06 m (12 × 160 inches) |
| Minimum Document Size | 63.5 × 71.1 mm (2.5 × 2.8 inches) |
| Paper Thickness | 27–433 g/m² (7.2–160 lb.) |
| Paper Path | Front Output Tray or Rear Straight-Through Path |
| Optical Resolution | 600 dpi |
| Image Output Resolution | Up to 1200 dpi |
| Scanning Technology | Dual RGB LED Illumination CIS (CMOS) |
| Grayscale Output | 8-bit |
| Color Output | 24-bit |
| Color Capture | 48-bit |
| Operator Display | 3.5-inch Graphical Color Touchscreen LCD |
| USB Connectivity | USB 3.2 Gen 1×1, USB 2.0 Compatible |
| Ethernet | 10/100/1000 Ethernet |
| Network Protocols | DHCP / Static IP, TCP/IP |
| Bundled Software | Capture Pro Limited Edition, Smart Touch |
| Optional Software | Capture Pro Software, Info Input Solution |
| Drivers | TWAIN, ISIS, WIA, Linux TWAIN/SANE |
| Operating Systems | Windows 10/11, Windows Server 2016/2019/2022, Ubuntu 18.04/20.04/22.04, OpenSUSE, SUSE Linux Enterprise |
| Barcode Support | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A, UPC-E |
| SurePath Features | Controlled Stacking, Jam Recovery, Intelligent Document Protection, Multifeed Detection, Continuous Scanning, Snap to Size |
| Dimensions | 457.2 × 370.84 × 254 mm |
| Weight | 15.6 kg |
| Electrical Requirements | 100–240V, 50–60Hz |
| Power Consumption | <70W Running / <4.7W Sleep / 0.3W Standby |
| Operating Temperature | 10–35°C |
| Operating Humidity | 15%–80% RH |
| Acoustical Noise | <20 dB(A) Ready / <60 dB(A) Scanning |
| Data Security | Scanned data processed through volatile memory |
| Environmental Certifications | ENERGY STAR Qualified, EPEAT Gold, 2008 EuP |
Frequently Asked Questions (FAQs)
What is the scanning speed of the KODAK S3100?
The KODAK S3100 provides scanning speeds of up to 100 pages per minute (ppm) or 200 images per minute (ipm).
How many sheets can the KODAK S3100 ADF hold?
The automatic document feeder can hold up to 300 sheets of 80 g/m² paper.
What is the maximum scanning resolution?
The S3100 provides up to 600 dpi optical resolution and image output resolution of up to 1200 dpi.
Does the KODAK S3100 support network connectivity?
Yes. It supports 10/100/1000 Ethernet as well as USB 3.2 Gen 1×1 connectivity with USB 2.0 compatibility.
What size documents can the KODAK S3100 scan?
It supports documents up to 305 mm × 4.06 m and a minimum document size of 63.5 × 71.1 mm. Its straight-through paper path is designed for thick and exceptionally long documents.
What software and drivers are supported?
The scanner includes Capture Pro Limited Edition and Smart Touch software. Standard drivers include TWAIN, ISIS and WIA, with Linux TWAIN/SANE support also specified.
