Logitech Rally Plus 4K Video Conferencing System

Product Features

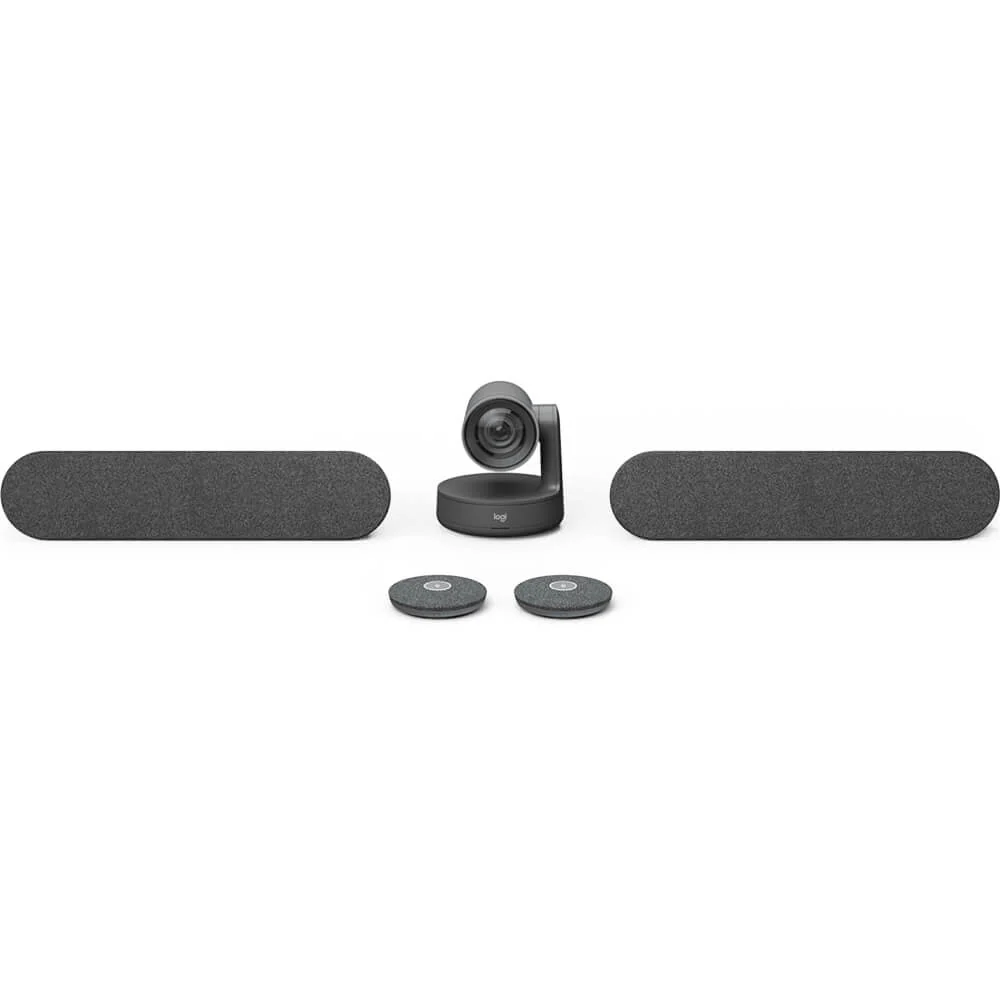

Modular Video Conferencing System: The Logitech Rally Plus is a modular USB-connected video conferencing system designed for large and extra-large meeting rooms. It combines a professional PTZ camera, two speakers, two microphone pods and dedicated table and display hubs into a complete conferencing solution.

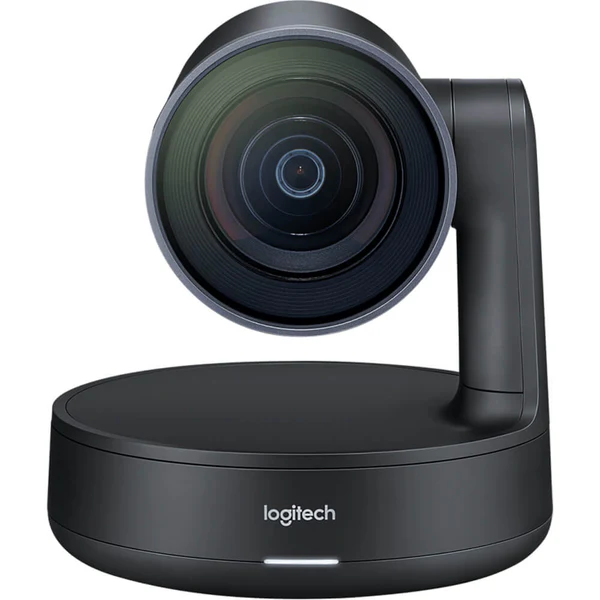

4K Ultra HD Video: The Rally Camera supports 4K Ultra HD video at 30fps along with 1440p, 1080p, 900p, 720p and SD resolutions. It also supports 1080p and 720p video at up to 60fps for compatible systems and applications.

15x HD Zoom: The camera provides up to 15x HD zoom through a combination of 5x optical and 3x digital zoom, allowing users to frame presenters, participants and presentation content across larger rooms.

Motorized Pan & Tilt: The Rally Camera provides smooth motorized movement with 180° pan (±90°) and 140° tilt (+50° / -90°), enabling broad coverage of conference rooms and meeting spaces.

Wide Field of View: The camera provides a 90° diagonal, 82° horizontal and 52° vertical field of view. Combined with motorized pan and tilt, total room coverage reaches up to 262° wide by 192° tall.

RightLight with WDR: Logitech RightLight technology with Wide Dynamic Range helps compensate for challenging lighting conditions. It includes low-light compensation, video noise reduction, low-light saturation optimization and backlight management.

RightSight Auto-Framing: RightSight technology uses human figure detection to automatically frame meeting participants. It can frame participants when meetings begin, on demand and during supported meetings.

RightSound Audio Processing: Logitech RightSound uses audio processing and machine-learning technology to distinguish human speech from other sounds while supporting acoustic echo cancellation, voice activity detection, background noise suppression and automatic voice-level adjustment.

Dual Rally Mic Pods: Rally Plus includes two Rally Mic Pods. Each pod uses four omnidirectional microphones to form eight acoustic beams for focused voice pickup and improved noise reduction.

Expandable Microphone System: The Rally system can support up to seven Rally Mic Pods for expanded audio coverage in larger rooms. Each additional Mic Pod can accommodate approximately six additional participants under recommended configurations.

7-Metre Microphone Coverage: Each Rally Mic Pod provides a pickup range of approximately 7 metres in diameter, helping capture voices around large conference tables.

Dual Rally Speakers: Rally Plus includes two high-performance speakers designed to provide clear audio throughout larger meeting spaces.

Anti-Vibration Speaker Design: Logitech’s speaker suspension system helps reduce vibration transfer through tables, walls and stands, minimizing interference with camera stability and microphone echo cancellation.

Active Speaker Detection: The Rally Table Hub analyzes audio from connected Mic Pods and acoustic beams to help determine the active speaker during compatible conferencing operation.

Rally Table Hub: The Table Hub provides connectivity for Rally Mic Pods, HDMI passthrough, USB and communication with the Display Hub. A single CAT6A cable connects the Table Hub and Display Hub.

Rally Display Hub: The Display Hub connects the Rally Camera, speakers and displays while communicating with the Table Hub, simplifying cable management between the conference table and front-of-room equipment.

Dual Display Support: Two HDMI Type-A connections on the Display Hub allow connection to compatible conference room displays.

RF Remote Control: The included RF remote does not require direct line of sight, allowing convenient camera and meeting control from different positions within the room.

Privacy Protection: When the Rally Camera enters sleep mode, the lens parks at -90° to provide a visible indication that the camera is not directed toward meeting participants.

Flexible Room Deployment: Rally Plus is designed as a modular system, allowing the camera, speakers, microphones and hubs to be positioned according to the layout of the meeting room.

Professional Meeting Room Application: With 4K video, powerful PTZ control, expandable microphone coverage and dual speakers, Logitech Rally Plus is designed for large conference rooms, boardrooms, training facilities and other professional collaboration spaces.

Product Specifications

Component Dimensions

Package Contents

• Logitech Rally Camera
• 2 × Rally Speakers
• 2 × Rally Mic Pods
• Rally Display Hub
• Rally Table Hub
• RF Remote Control
• USB Type-C to USB Type-C Cable
• USB Type-A to USB Type-B Cable
• CAT6A Ethernet Cable
• 2 × HDMI Type-A Cables
• 2 × AC Power Cables
• 2 × Power Supplies
• Documentation
