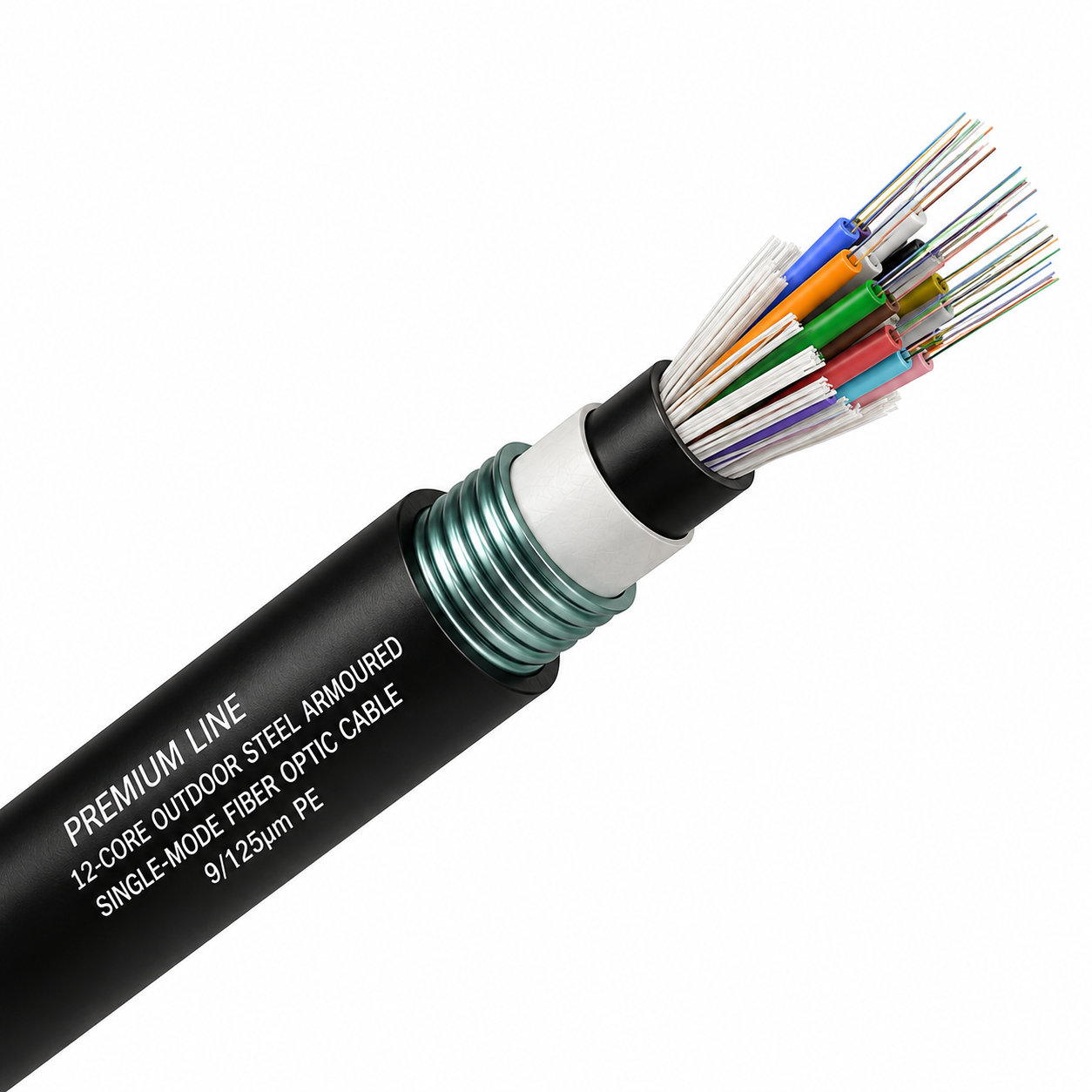

Premium Line 12-Core Outdoor Steel Armoured Single-Mode Fiber Optic Cable 9/125µm PE

Product Overview

The Premium Line 12-Core Outdoor Steel Armoured Fiber Optic Cable is designed for reliable optical data transmission in outdoor telecommunications, enterprise, campus, surveillance and structured fiber network installations.

The cable contains 12 single-mode 9/125µm optical fibers, providing multiple fiber connections within one cable for network backbone links, building-to-building connectivity, telecommunications infrastructure and future network expansion.

The 250µm optical fibers are positioned inside a loose tube manufactured from high-modulus plastic. The loose tube is filled with a water-resistant filling compound to provide additional protection against moisture and environmental exposure.

The tube is wrapped with a layer of corrugated steel tape. Water-blocking material is applied between the corrugated steel tape and loose tube to keep the cable compact and watertight.

Two parallel steel wires are positioned on both sides of the corrugated steel tape. These steel-wire strength members provide additional tensile strength and help protect the optical fibers against pulling forces during installation.

The cable is completed with a durable polyethylene outer sheath suitable for outdoor installations. It can be installed through direct burial, aerial routes or underground ducts, depending on project requirements.

This cable is supplied and priced per meter, allowing customers and installers to order the required cable length according to the project route and installation requirements.

Cable Construction

• 250µm optical fibers
• High-modulus plastic loose tube
• Water-resistant tube filling compound
• Water-blocking material
• Corrugated steel tape armour
• Two parallel steel-wire strength members
• Durable polyethylene outer sheath
• Compact and watertight cable construction

Key Features

• 12 single-mode optical fiber cores
• 9/125µm single-mode fiber specification
• Good mechanical and temperature performance
• High-strength loose tube with hydrolysis resistance
• Special tube filling compound for critical fiber protection
• Water-resistant and moisture-protected construction
• Corrugated steel tape for improved crush resistance
• Flexible cable construction for easier installation
• Steel tape enhances moisture protection
• Two parallel steel wires provide tensile strength
• Small cable diameter
• Lightweight and installation-friendly design
• Suitable for outdoor fiber backbone connections
• Supplied and priced per meter

Applications

• Direct-buried fiber optic installations
• Aerial fiber optic installations
• Underground duct installations
• Outdoor telecommunications networks
• Enterprise fiber backbone networks
• Building-to-building connectivity
• Campus network installations
• Data centre connectivity
• IP CCTV and surveillance networks
• Long-distance optical data transmission
• Structured fiber optic cabling systems

Compliance Standards

• ITU-T G.652D
• ANSI/TIA-568-C.3
• IEC-794
• RoHS compliant

Technical Specifications

Structure and Environmental Characteristics

Mechanical Characteristics

Optical Performance

Note: Part number 267123012 represents the 12-core single-mode 9/125µm version with a PE sheath. Other fiber modes and sheath options may be available under the same product series.

Fiber Colour Code

Ordering Information

Part Number Format: 2671xyzzz

Premium Line outdoor fiber optic cable with steel armour, two parallel steel-wire strength members and uni-tube construction.

Part Number Explanation: 267123012

• 2671: Outdoor steel armoured uni-tube fiber optic cable series
• 2: Single-mode 9/125µm fiber
• 3: PE outer sheath
• 012: 12 fiber cores

Packing Information

• The cable is wound on an iron stand and wooden composite drum.
• The standard drum length is 2000 meters ±1%.
• The cable drum is covered with a protective plastic buffer sheet.
• The drum is sealed with strong wooden battens.
• At least one meter of the inner cable end is reserved for testing.
• A factory test protocol is provided at the side of the cable drum.

Frequently Asked Questions

What does 12-core fiber optic cable mean?

A 12-core fiber optic cable contains 12 individual optical fibers within one cable. These fibers can support multiple network links, communication services, equipment connections or future network expansion.

Is this cable single-mode or multimode?

Part number 267123012 is a single-mode fiber optic cable with a 9/125µm fiber specification. It is suitable for high-bandwidth and long-distance optical connections.

What is the purpose of the loose tube?

The loose tube houses and protects the optical fibers. It allows the fibers to move slightly within the tube, helping reduce the effects of mechanical stress, temperature changes and pulling forces.

Why is the loose tube filled with a water-resistant compound?

The filling compound helps prevent water from entering and moving through the cable. It also provides additional protection to the optical fibers against moisture and environmental exposure.

What is the purpose of the corrugated steel tape?

The corrugated steel tape provides mechanical protection against crushing, compression, impact and external damage. It also improves moisture resistance.

Why are two parallel steel wires included?

The two parallel steel wires provide additional tensile strength and help protect the optical fibers against excessive pulling forces during cable installation.

Is this cable suitable for direct burial?

Yes. The cable is suitable for direct-buried, aerial and underground duct installations, subject to the installation requirements and applicable project standards.

What is the benefit of the PE outer jacket?

The polyethylene outer jacket provides durable protection against moisture, abrasion and general environmental exposure, making it suitable for outdoor cable installations.

What is the maximum attenuation of the single-mode fiber?

The maximum attenuation is ≤0.36 dB/km at 1310nm and ≤0.22 dB/km at 1550nm.

How is this fiber optic cable supplied?

The cable is supplied and priced per meter. Standard factory drum length is 2000 meters ±1%, while customers can order the required quantity according to their project requirements.
