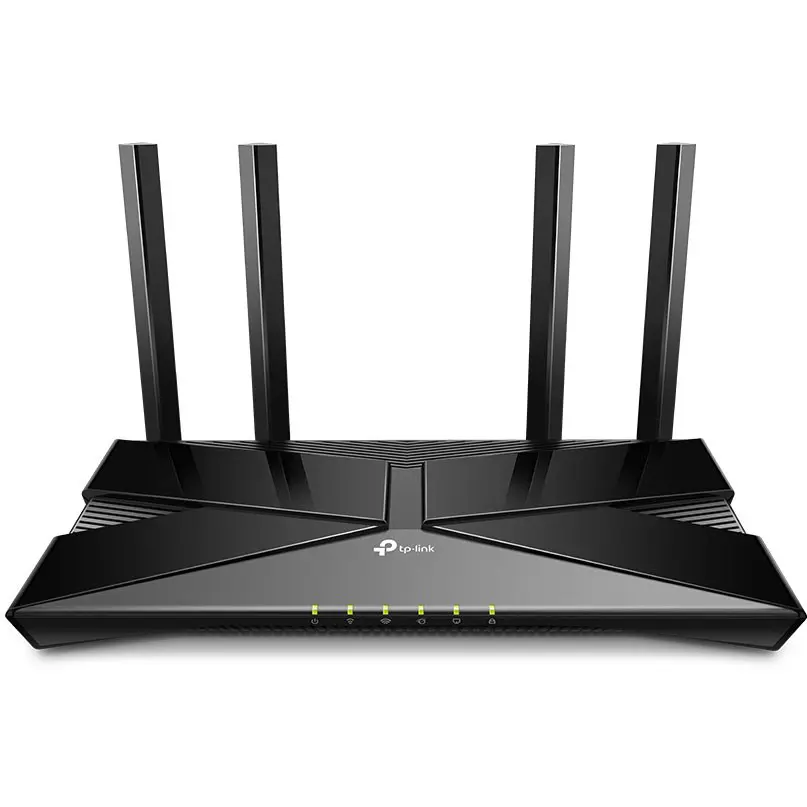

TP-Link XX230v AX1800 Dual-Band Wi-Fi 6 GPON Router

All-in-One GPON Fiber Router with Wi-Fi 6

The TP-Link XX230v is an AX1800 dual-band Wi-Fi 6 GPON router designed for fiber broadband connections. It combines GPON optical access, high-speed Wi-Fi 6, Gigabit Ethernet, VoIP, IPTV and remote management features in a single compact device.

With combined wireless speeds of up to 1.8Gbps, four high-performance antennas, OFDMA, MU-MIMO and Beamforming, the XX230v is designed to deliver efficient wireless connectivity for multiple devices across a home or small office environment.

Product Features

AX1800 Wi-Fi 6: Delivers combined dual-band wireless speeds of up to 1.8Gbps for streaming, downloading, gaming, video calls and everyday internet use.

Dual-Band Wireless: Operates across both 2.4GHz and 5GHz bands, allowing compatible devices to connect according to coverage and performance requirements.

Built-in GPON Connectivity: Designed for GPON fiber broadband networks, allowing the router to connect directly to compatible fiber infrastructure.

Four High-Performance Antennas: Four external antennas help provide broader wireless coverage and stronger signal distribution across supported environments.

Beamforming: Beamforming technology helps direct wireless signals toward connected compatible devices for improved connection quality and coverage.

OFDMA: Wi-Fi 6 OFDMA allows the router to use available wireless resources more efficiently when serving multiple compatible devices.

MU-MIMO: MU-MIMO technology enables simultaneous wireless transmission to multiple compatible devices, helping improve network capacity.

EasyMesh Compatible: EasyMesh support allows the XX230v to participate in a compatible mesh network for wider seamless wireless coverage.

Gigabit Wired Connectivity: One Gigabit WAN/LAN port and three Gigabit LAN ports provide flexible high-speed wired connectivity for desktop PCs, TVs, switches and other network devices.

VoIP Support: Supports multiple VoIP accounts and calling features, allowing compatible internet-based telephone services to be integrated through the router.

IPTV Optimization: IGMP Proxy, IGMP Snooping, Bridge Mode and Tag VLAN support help optimize compatible IPTV services.

WPA3 Security: WPA3 wireless encryption provides modern Wi-Fi security for supported client devices.

Multi-SSID: Multiple SSID support allows separate wireless networks to be created for different users or purposes.

Parental Controls: Built-in parental control tools provide additional options for managing network access and online activity.

Compact Fiber Tray: The integrated fiber tray provides space to store redundant fiber cable and helps protect the fiber connection from excessive bending or damage.

Aginet App: TP-Link’s Aginet app provides guided network setup and convenient management from compatible mobile devices.

Remote Management: The router supports TAUC, TP-Link Aginet Unified Cloud and multiple remote management protocols for ISP and service-provider environments.

Product Specifications

*Maximum wireless speeds are theoretical rates based on Wi-Fi standards. Actual internet and wireless performance depends on the ISP connection, fiber service profile, client devices, interference and network conditions.

AX1800 Dual-Band Wi-Fi 6

The TP-Link XX230v provides AX1800-class wireless performance across the 2.4GHz and 5GHz bands. Wi-Fi 6 technologies are designed to increase network efficiency and improve performance in homes with multiple connected devices.

Built-in GPON Fiber Access

The XX230v combines fiber access and wireless routing in one device. Its GPON functionality is designed for compatible fiber-to-the-home and service-provider deployments, reducing the need for a separate conventional optical network terminal and wireless router in supported installations.

More Efficient Multi-Device Networking

OFDMA and MU-MIMO allow compatible devices to share available wireless resources more efficiently. This is useful in environments with smartphones, laptops, smart TVs, cameras and other connected devices operating simultaneously.

EasyMesh for Expandable Coverage

EasyMesh compatibility provides an upgrade path for larger wireless deployments. Compatible EasyMesh devices can work together to create a broader mesh network and provide smoother roaming across supported areas.

Gigabit Ethernet Connectivity

One Gigabit WAN/LAN interface and three Gigabit LAN interfaces provide high-speed wired connectivity for PCs, smart TVs, network switches and other compatible equipment.

VoIP and IPTV Support

The XX230v is designed for triple-play broadband environments where internet, voice and television services may share the same fiber connection. Multiple VoIP account support and IPTV features such as IGMP Proxy, Snooping, Bridge and VLAN tagging provide flexible service-provider configuration.

Aginet and Remote ISP Management

The TP-Link Aginet platform provides tools for network setup and management. Support for TAUC and industry management protocols such as TR-369, TR-069 and OMCI also makes the XX230v suitable for remotely managed ISP deployments.

Important Compatibility Information

The TP-Link XX230v is a GPON fiber router and should not be treated as a universal plug-and-play replacement for every ISP-provided fiber router. GPON authentication, optical parameters, VLAN settings, OMCI profiles and VoIP credentials may need to be provisioned by the internet service provider.

Before purchasing, confirm that your fiber ISP supports the TP-Link XX230v and can provision the device on its GPON network.
