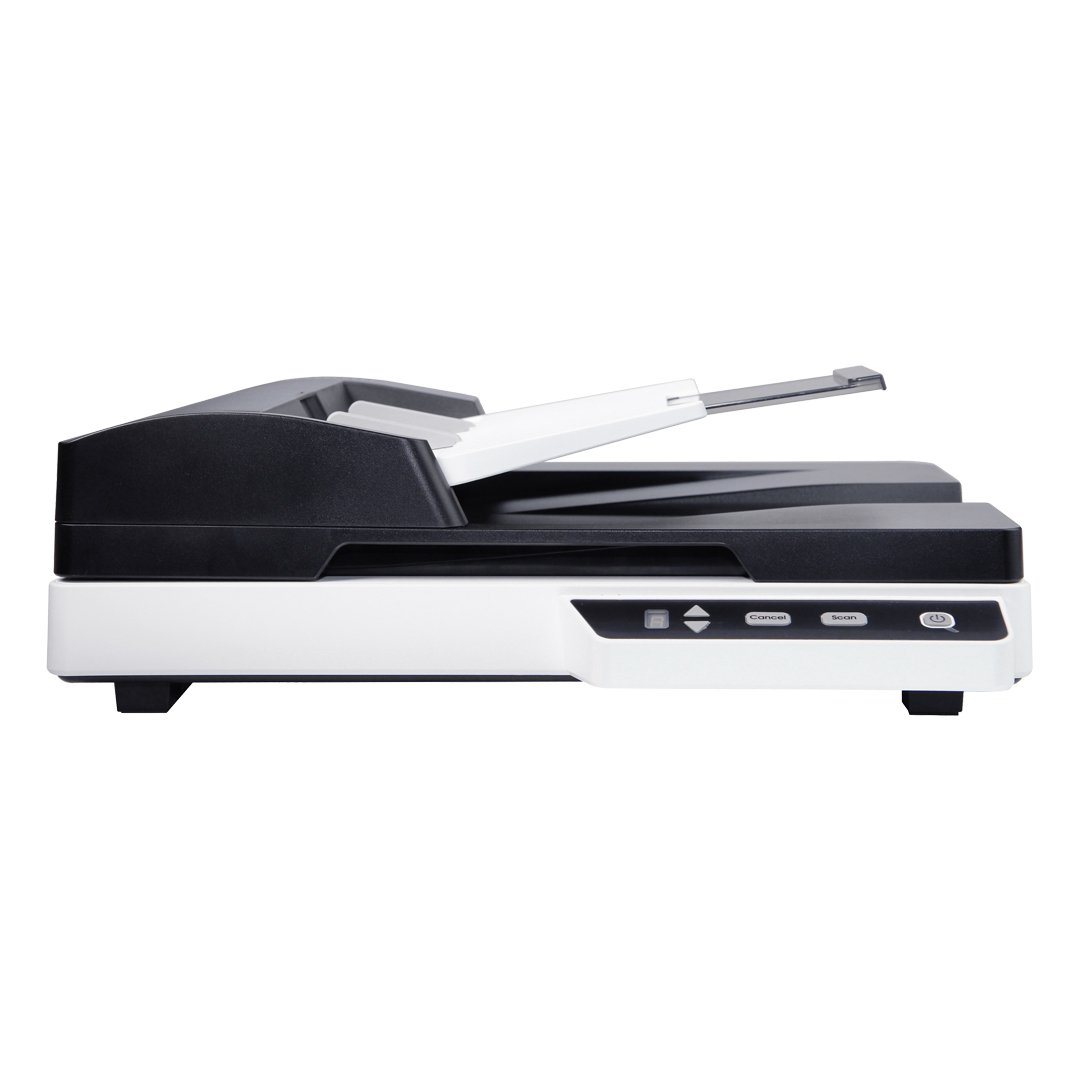

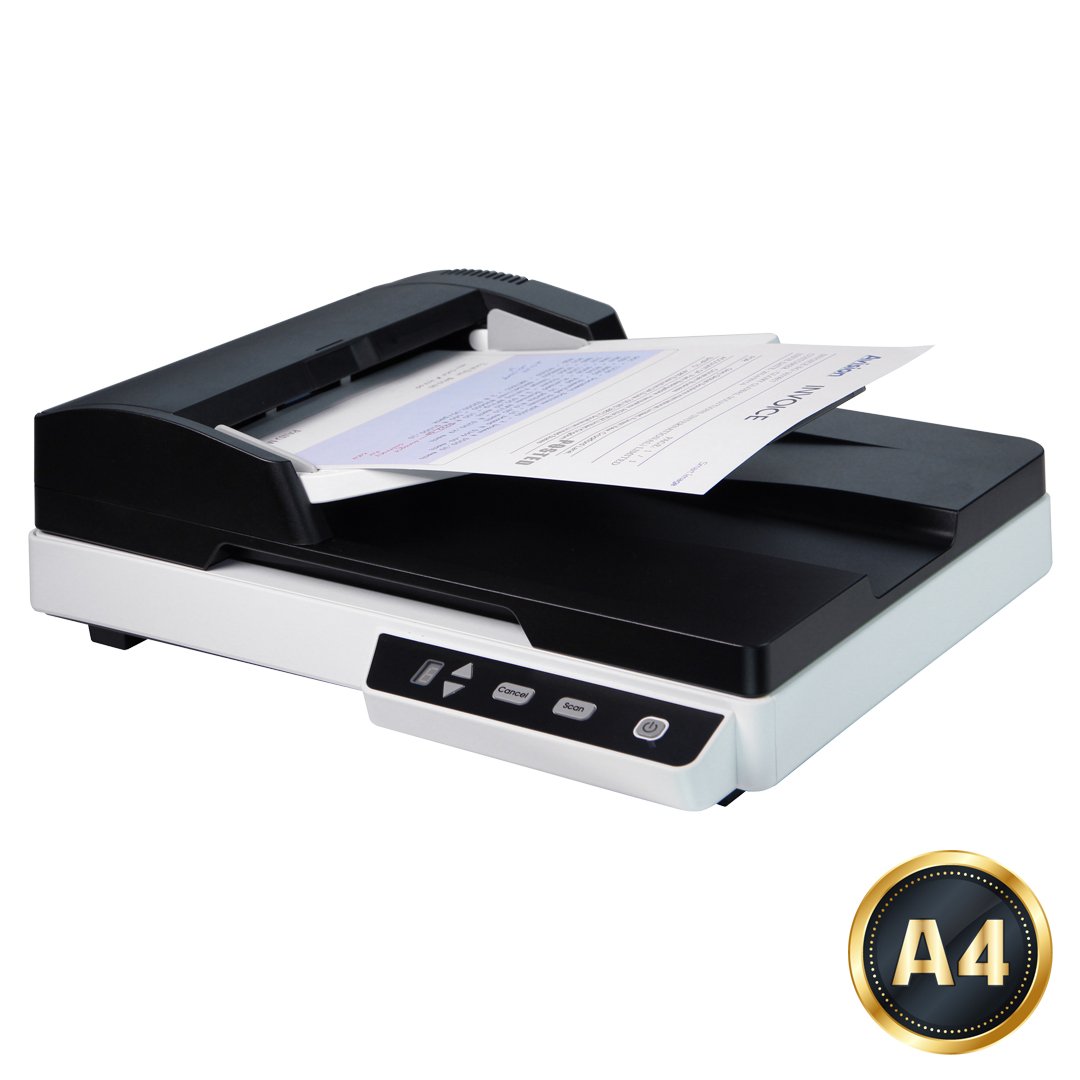

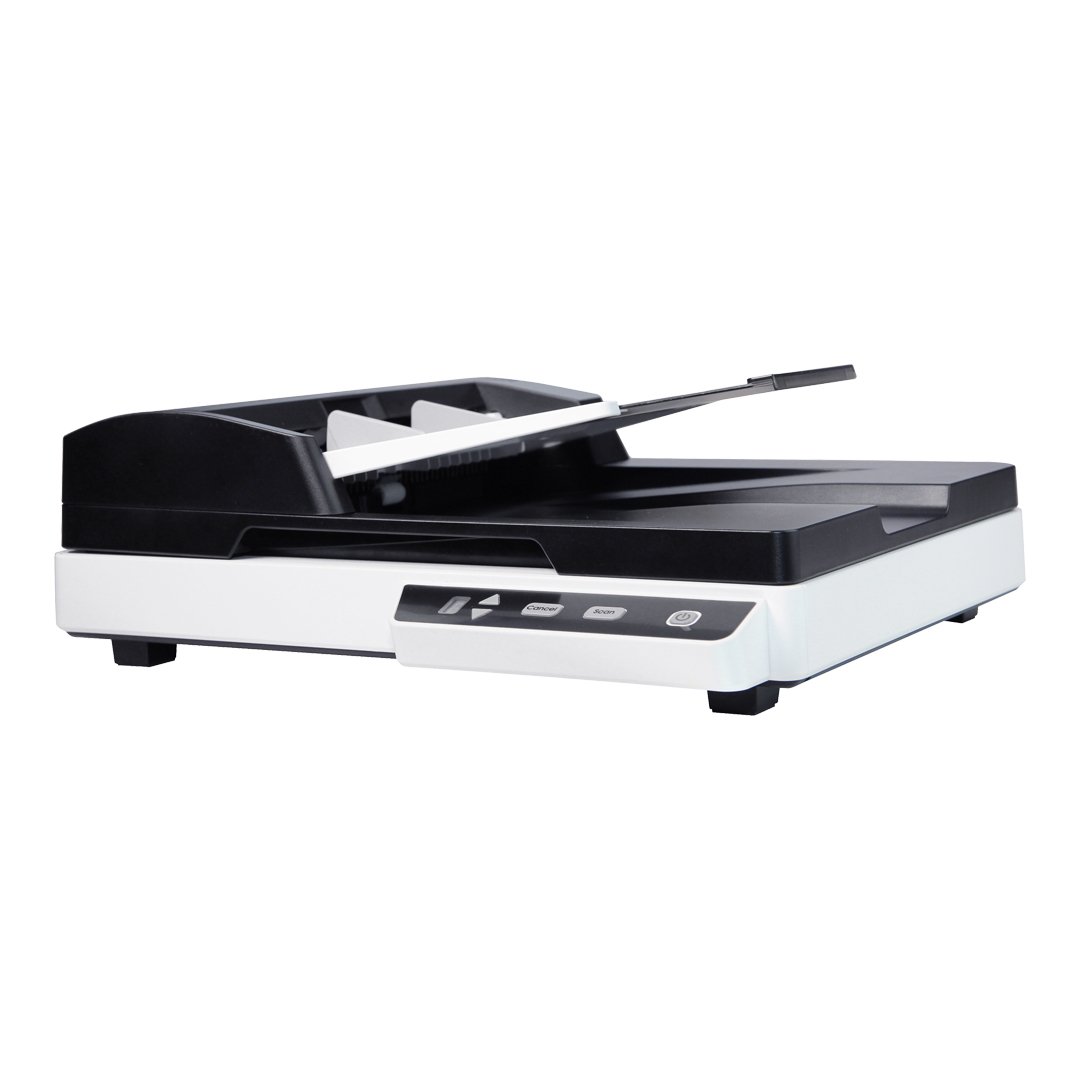

Avision AD120 Duplex ADF & Flatbed Document Scanner
- Scanning Speed: Up to 25 ppm / 50 ipm in color and black and white at 200–300 dpi.
- Scanning Modes: Duplex automatic document feeder and integrated flatbed.
- Feeder Capacity: Up to 50 sheets of 80 g/m² paper.
- Daily Volume: Recommended for up to 3,000 sheets per day.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Connectivity: USB 2.0 interface, compatible with USB 3.0 ports.
- Document Sizes: Legal-size ADF scanning and a flatbed supporting documents up to 216 × 297 mm.
- Compact Design: Weighs 2.7 kg for convenient desktop placement.
Avision AD120 Duplex ADF & Flatbed Document Scanner
The Avision AD120 Scanner combines automatic two-sided document scanning with the flexibility of a flatbed. For businesses in Pakistan digitizing forms, invoices and office records, it provides a compact solution for both loose document batches and originals requiring individual placement.
25 ppm Color and Black-and-White Scanning
Scan A4 documents at up to 25 pages per minute or 50 images per minute in duplex mode. These speeds apply to color and black-and-white scanning at both 200 and 300 dpi. The 50-sheet automatic document feeder reduces manual page loading, while duplex capture scans both sides of suitable documents.
Flatbed and ADF for Different Document Types
The ADF handles standard documents up to legal size at 216 × 356 mm. The integrated flatbed supports documents up to 216 × 297 mm, providing an alternative for originals that should not pass through the feeder. Long paper mode supports lengths up to 118 inches at 300 dpi and 122 inches at 200 dpi.
Compact Design for Everyday Office Use
Measuring 402 × 330 × 112 mm and weighing 2.7 kg, the AD120 fits into desktop scanning setups. Its recommended daily volume is up to 3,000 sheets. A USB 2.0 interface provides direct computer connectivity and is compatible with USB 3.0 ports.
Flexible Digital Output and Capture Software
The scanner provides 600 × 600 dpi optical resolution, with output up to 1200 × 1200 dpi. Listed software includes Button Manager, PaperPort and AVScan, alongside TWAIN and ISIS drivers. Supported applications offer PDF, image, text and Office document formats, with OCR functionality for text recognition. Software availability and functionality depend on the operating system and application used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD120 |
| Scanner Type | Flatbed and ADF document scanner |
| Document Feeding Modes | Flatbed and ADF |
| ADF Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 64 MB SDRAM |
| Black and White Speed | Up to 25 ppm simplex / 50 ipm duplex at 200 or 300 dpi, A4 |
| Color Speed | Up to 25 ppm simplex / 50 ipm duplex at 200 or 300 dpi, A4 |
| Flatbed Scanning Speed | 4.5 seconds; 14.8 seconds including return to home position, at 200 or 300 dpi, A4, in black and white or color |
| Recommended Daily Volume | Up to 3,000 sheets |
| ADF Capacity | Up to 50 sheets of 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Document Size | 76.2 × 148 mm (3 × 5.83 inches) |
| Maximum Standard ADF Document Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| Maximum Flatbed Document Size | 216 × 297 mm (8.5 × 11.7 inches) |
| Long Paper Mode | Up to 118 inches at 300 dpi; up to 122 inches at 200 dpi |
| Paper Weight | 60–110 g/m² |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML, depending on software |
| Text Recognition | OCR through supported software |
| Interface | USB 2.0; compatible with USB 3.0 ports |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, Linux Driver and Mac Driver |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12–10.15, 11 Big Sur, 12 Monterey, 13 Ventura and 14 Sonoma |
| Dimensions (W × D × H) | 402 × 330 × 112 mm |
| Weight | 2.7 kg |
| Power Consumption | Operation: <10W; ready: <5W; sleep: <2.9W; off: <0.23W |
Specifications and scanning performance may vary by computer configuration and sales region. Confirm the supplied configuration when ordering.
Avision AD120 Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD120 Scanner price in Pakistan, current availability and ordering details.
