Avision AD8120UN A3 Network Production Scanner
- Scanning Speed: Up to 120 ppm / 240 ipm in color and black and white at 200–300 dpi.
- Feeder Capacity: 500-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 100,000 pages per day.
- Document Size: Supports A3 documents up to 308 × 432 mm.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Connectivity: USB 3.2 Gen 1×1 and Ethernet.
- Paper Protection: Paper protection technology and triple ultrasonic double-feed detection.
- Flexible Feeding: Straight-through and U-turn paper paths, plus embossed card scanning up to 1.25 mm thick.

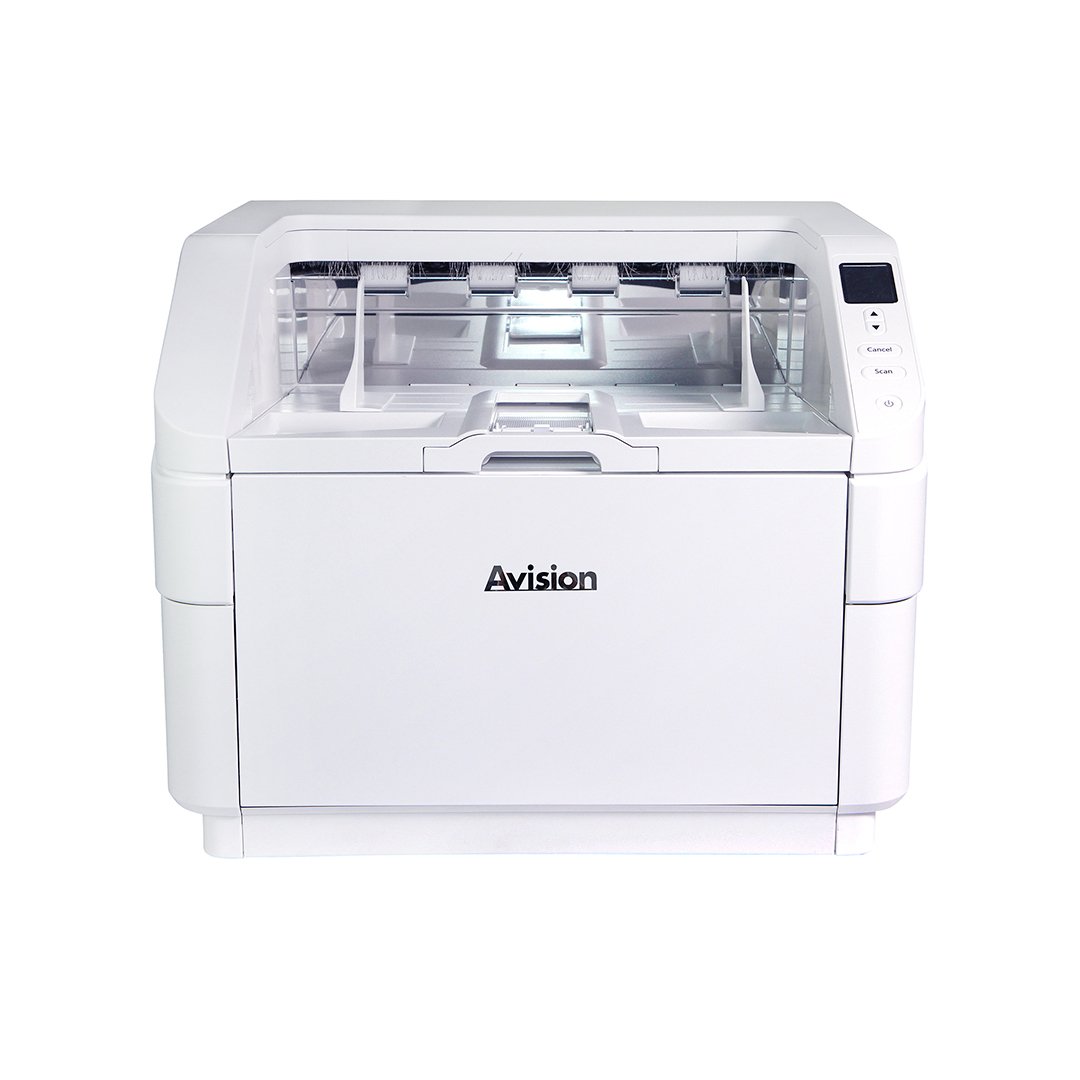

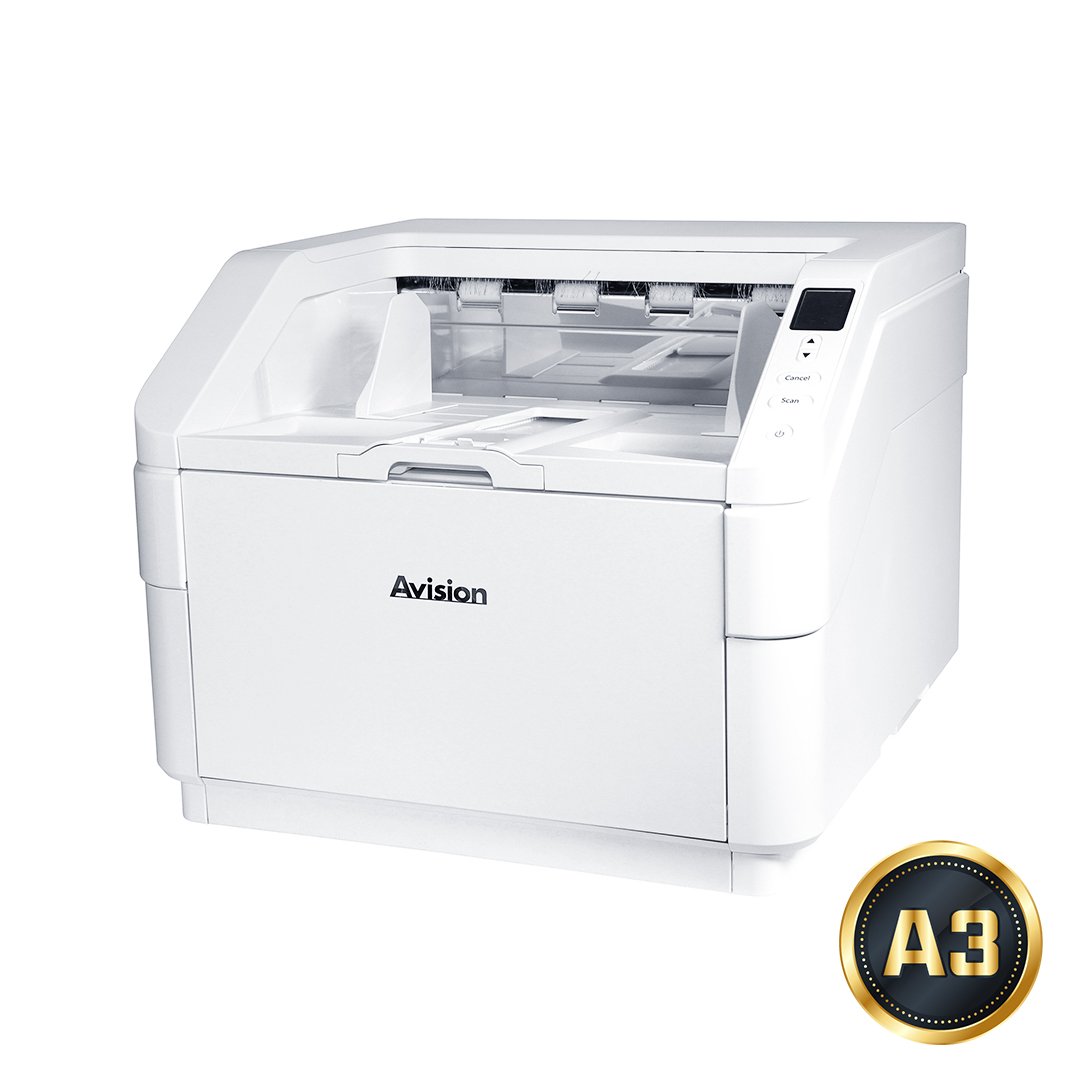

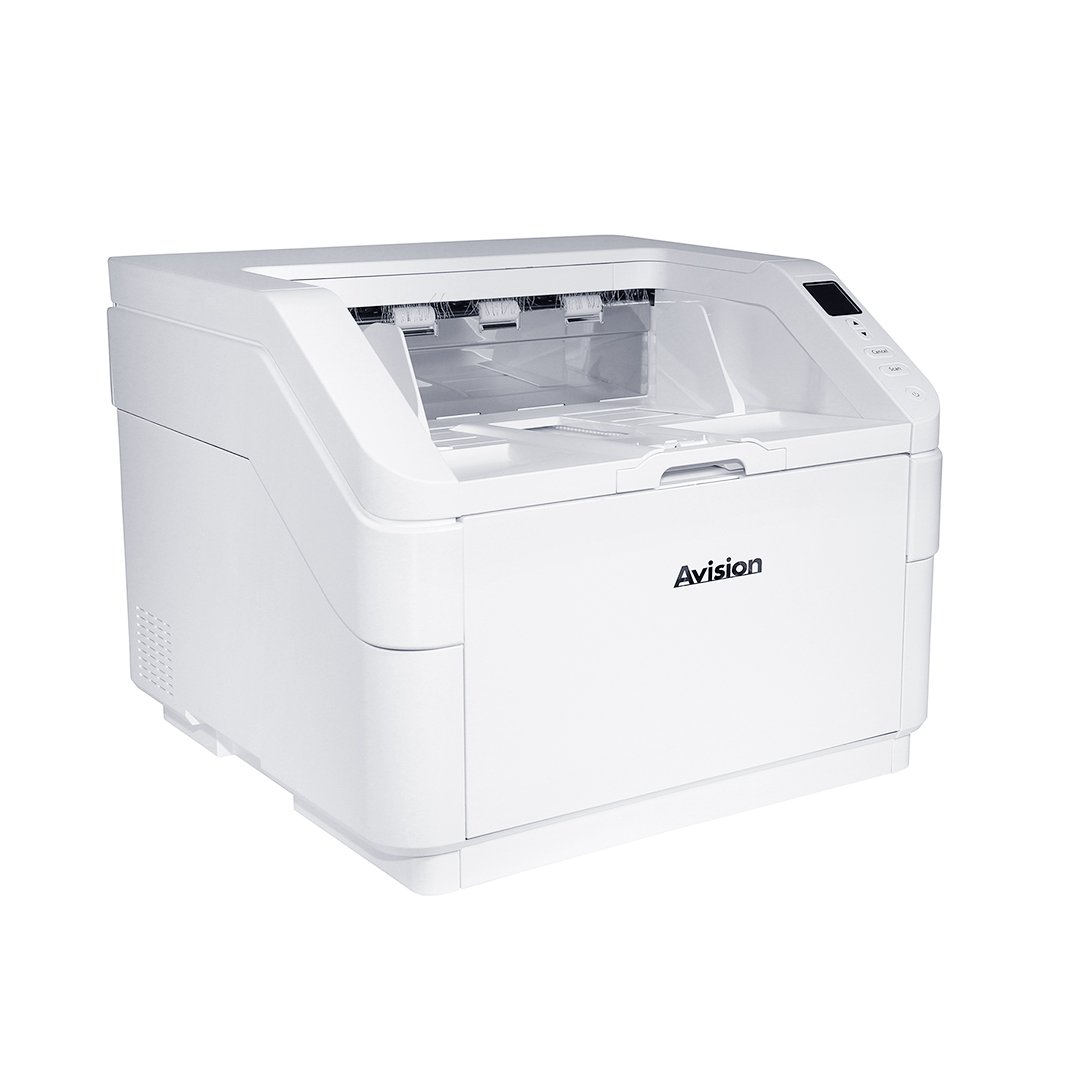

Avision AD8120UN A3 Network Production Scanner
The Avision AD8120UN Scanner combines high-volume document capture with a 500-sheet automatic feeder and wired network connectivity. It supports organizations in Pakistan digitizing large batches of records, forms, invoices and A3 documents through a dedicated scanning setup.
120 ppm Scanning at Both 200 and 300 dpi
Scan A4 documents at up to 120 pages per minute or 240 images per minute in duplex mode. These speeds apply to color and black-and-white scanning at both 200 and 300 dpi. This allows teams to select 300 dpi capture while retaining the same rated scanning throughput.
Large Feeder with Paper Protection
The automatic document feeder holds up to 500 sheets of A4, 80 g/m² paper, reducing the need for frequent loading. A recommended daily volume of up to 100,000 pages supports demanding scanning workloads. Paper protection technology and triple ultrasonic double-feed detection help identify feeding problems during batch processing.
Flexible Paper Paths for Different Originals
The straight-through path supports paper weights from 20 to 413 g/m², while the U-turn path handles 20 to 210 g/m². The AD8120UN accommodates A3 documents, embossed cards up to 1.25 mm thick and long documents at selected resolutions. Minimum document dimensions differ between single-page and multiple-page feeding.
Ethernet, USB and Document Capture Software
Connect through Ethernet for a supported network scanning setup or USB 3.2 Gen 1×1 for direct computer connectivity. Listed software includes Virtual Scanner Link, Button Manager, PaperPort and AVScan, alongside TWAIN, ISIS and WIA drivers. The scanner provides 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi. Software functionality and available file formats depend on the application and operating system used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD8120UN |
| Scanner Type | A3 network production document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 1 GB SDRAM |
| Black and White Speed at 200 dpi | Up to 120 ppm simplex / 240 ipm duplex, A4 |
| Black and White Speed at 300 dpi | Up to 120 ppm simplex / 240 ipm duplex, A4 |
| Color Speed at 200 dpi | Up to 120 ppm simplex / 240 ipm duplex, A4 |
| Color Speed at 300 dpi | Up to 120 ppm simplex / 240 ipm duplex, A4 |
| Recommended Daily Volume | Up to 100,000 pages |
| ADF Capacity | Up to 500 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Size — Single-Page Feeding | 50 × 65 mm |
| Minimum ADF Size — Multiple-Page Feeding | 50 × 85 mm |
| Maximum Standard ADF Document Size | 308 × 432 mm; supports A3 |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight — Straight Path | 20–413 g/m² |
| Paper Weight — U-Turn Path | 20–210 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Paper Protection | Paper protection technology and triple ultrasonic double-feed detection |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| USB Interface | USB 3.2 Gen 1×1 |
| Ethernet Port | RJ-45 Ethernet, listed at 10/100/1000 Mbps |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort, AVScan and Virtual Scanner Link |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 460 × 784 × 362 mm |
| Minimum Dimensions (W × D × H) | 460 × 446 × 362 mm |
| Weight | 25 kg |
| Power Consumption | Operation: <92W; ready: <17W; sleep: <2.9W; off: <0.28W |
| Acoustical Noise | Operation: <55 dB; ready: <25 dB |
Avision AD8120UN Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD8120UN Scanner price in Pakistan, current availability and ordering details.
