Avision AD3100 High-Speed Duplex Document Scanner
- Scanning Speed: Up to 100 ppm / 200 ipm in color and black and white at 200–300 dpi.
- Feeder Capacity: 100-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 15,000 pages per day.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Connectivity: USB 3.2 Gen 1×1 for direct computer connection.
- Document Handling: Supports legal-size documents and embossed cards up to 1.25 mm thick.
- Paper Detection: Ultrasonic paper jam detection.
- Compact Design: Weighs 4.7 kg for practical desktop placement.

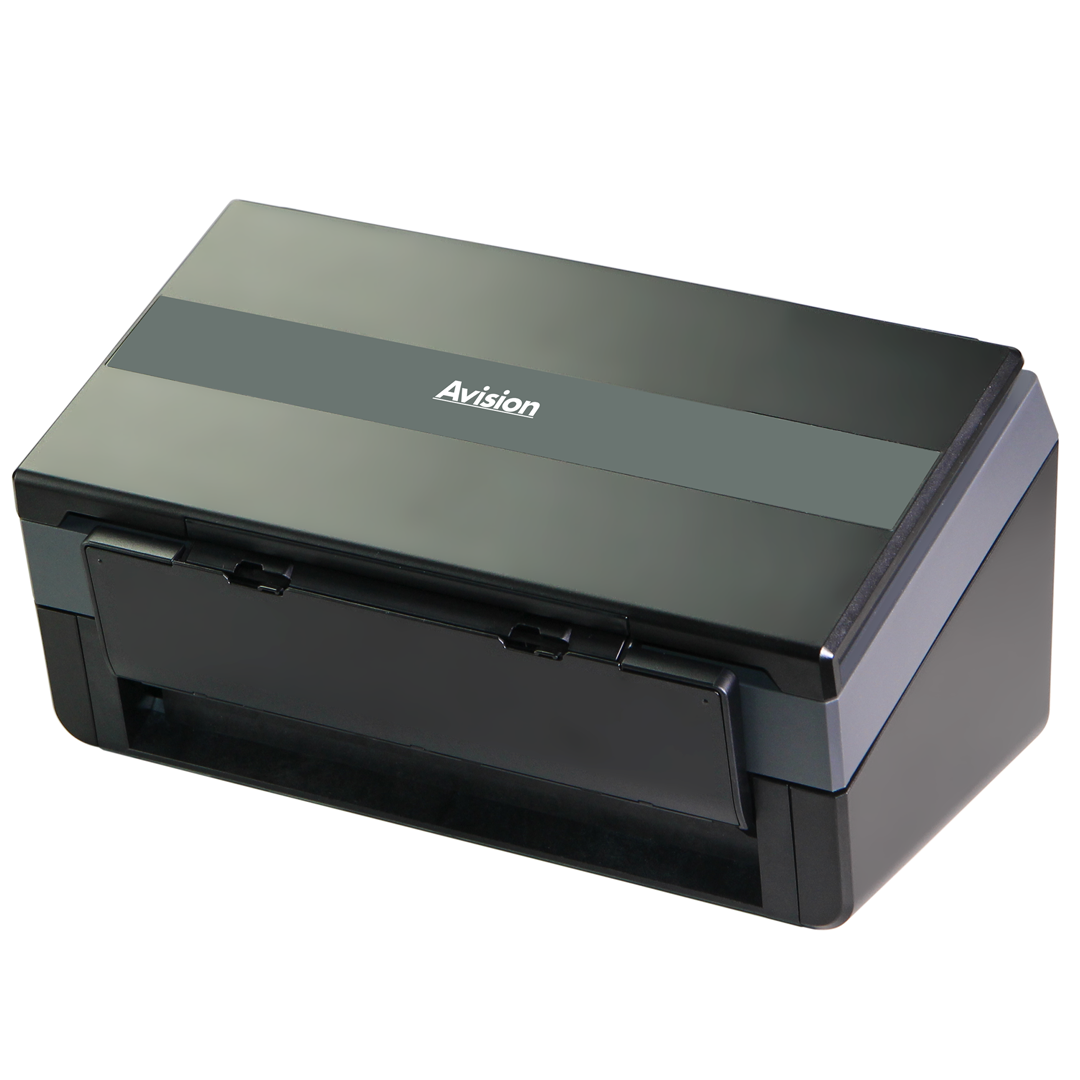

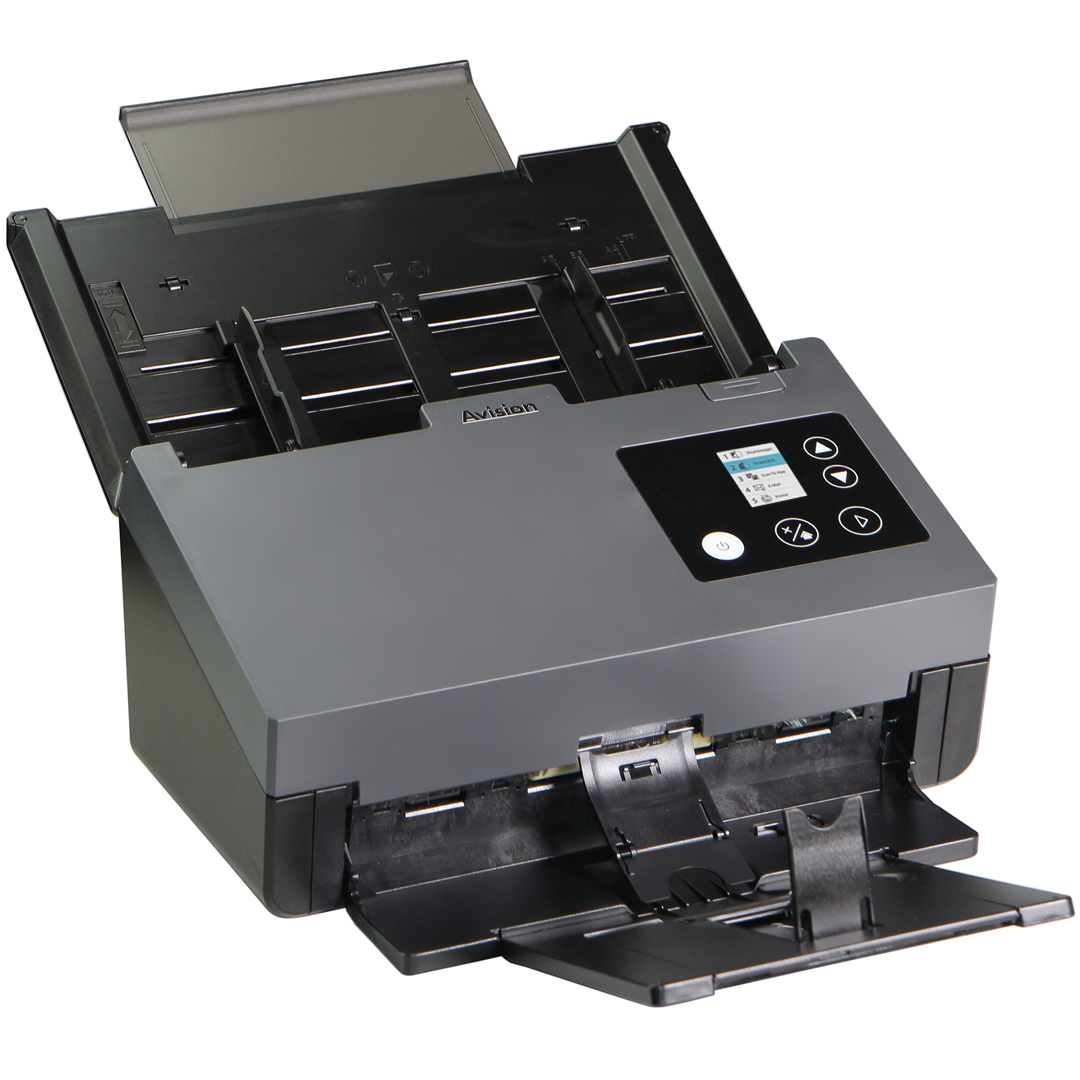

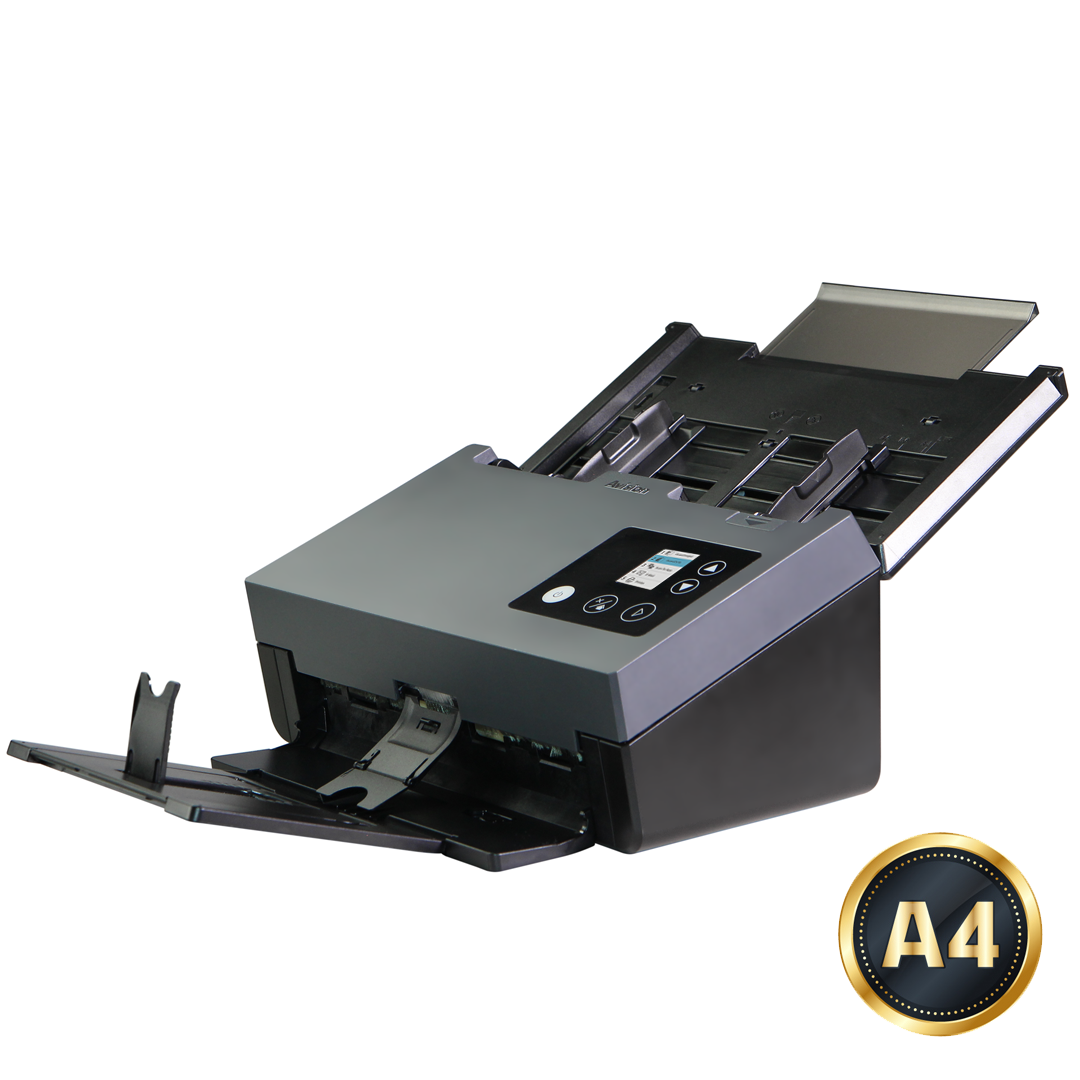

Avision AD3100 High-Speed Duplex Document Scanner
The Avision AD3100 Scanner delivers fast document capture through a direct USB connection. For businesses in Pakistan processing invoices, forms and office records, its 100-sheet automatic document feeder and duplex scanning help handle large batches with less manual page loading.
100 ppm Scanning at Both 200 and 300 dpi
Scan A4 portrait documents at up to 100 pages per minute or 200 images per minute in duplex mode. These speeds apply to both color and black-and-white scanning at 200 and 300 dpi. Operators can select 300 dpi capture while retaining the same rated scanning throughput.
100-Sheet ADF for Daily Office Workloads
The automatic document feeder holds up to 100 sheets of A4, 80 g/m² paper. A recommended daily volume of up to 15,000 pages supports busy departments with regular document processing requirements. Ultrasonic paper jam detection helps identify feeding problems during operation.
Flexible Document, Card and Long Paper Scanning
The AD3100 supports standard document sizes from 50 × 50 mm to legal size at 216 × 356 mm. It handles paper weights from 27 to 413 g/m² and embossed cards up to 1.25 mm thick. Long paper mode accommodates extended documents at selected resolutions.
USB Connectivity and Document Capture Software
Connect the scanner to a compatible computer through USB 3.2 Gen 1×1. Listed software includes Button Manager, PaperPort and AVScan, alongside TWAIN, ISIS and WIA drivers. Optical resolution is 600 × 600 dpi, with output available up to 1200 × 1200 dpi. Supported file formats and software functionality depend on the application and operating system used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD3100 |
| Scanner Type | Sheet-fed document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 512 MB SDRAM |
| Black and White Speed at 200 dpi | Up to 100 ppm simplex / 200 ipm duplex, A4 |
| Black and White Speed at 300 dpi | Up to 100 ppm simplex / 200 ipm duplex, A4 |
| Color Speed at 200 dpi | Up to 100 ppm simplex / 200 ipm duplex, A4 |
| Color Speed at 300 dpi | Up to 100 ppm simplex / 200 ipm duplex, A4 |
| Recommended Daily Volume | Up to 15,000 pages |
| ADF Capacity | Up to 100 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Document Size | 50 × 50 mm |
| Maximum Standard ADF Scan Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| ADF Paper Width Accommodation | Up to 242 mm; listed maximum standard scanning width is 216 mm |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Interface | USB 3.2 Gen 1×1 |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort and AVScan |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12–10.15, 11 Big Sur, 12 Monterey, 13 Ventura and 14 Sonoma |
| Maximum Dimensions (W × D × H) | 316 × 680 × 239 mm |
| Minimum Dimensions (W × D × H) | 316 × 191 × 168 mm |
| Weight | 4.7 kg |
| Power Consumption | Operation: <60W; ready: <15W; sleep: <2.9W; off: <0.3W |
| Acoustical Noise | Operation: <63 dB; ready: <45 dB |
Avision AD3100 Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD3100 Scanner price in Pakistan, current availability and ordering details.
