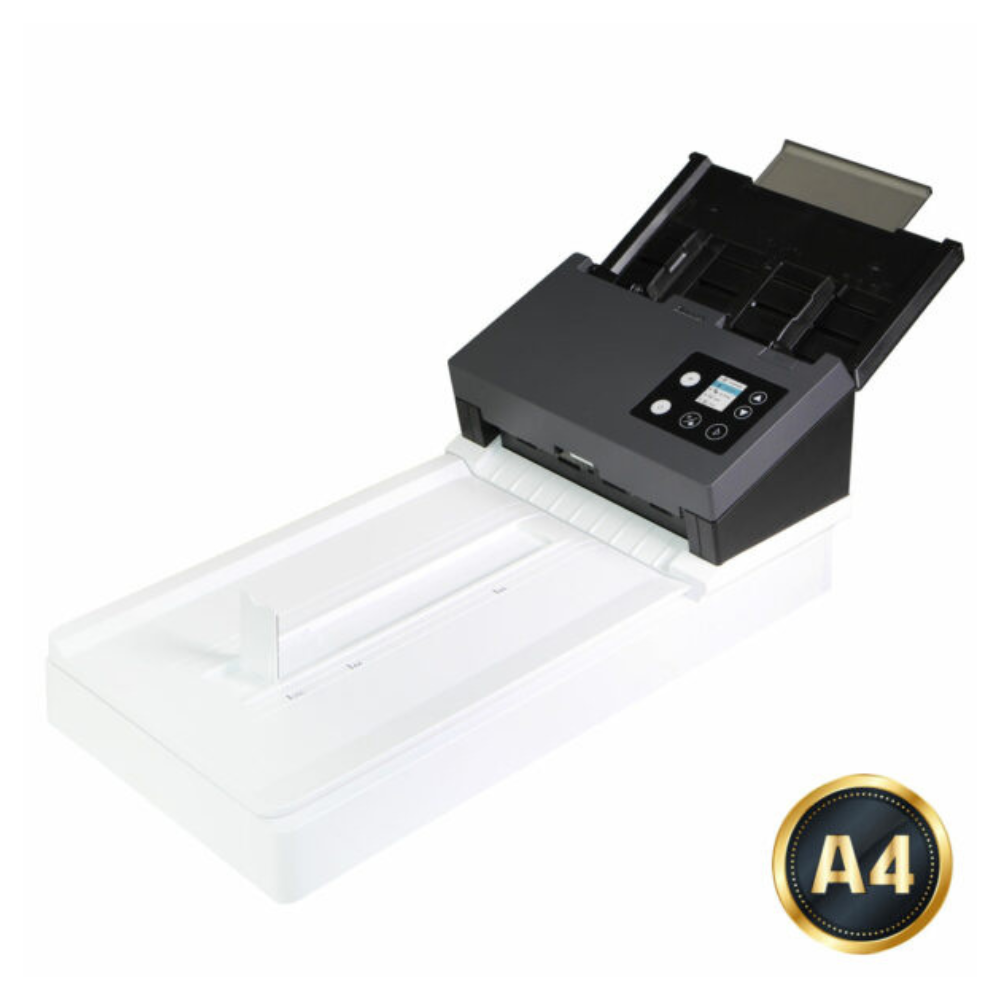

Avision AD3100F ADF & Legal Flatbed Document Scanner
- Scanning Speed: Up to 100 ppm / 200 ipm in color and black and white at 200–300 dpi.
- Scanning Modes: Duplex automatic document feeder and integrated legal-size flatbed.
- Feeder Capacity: 100-sheet ADF for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 15,000 pages per day.
- Optical Resolution: 1200 × 1200 dpi flatbed and 600 × 600 dpi ADF.
- Connectivity: USB 3.2 Gen 1×1.
- Document Handling: Supports legal-size documents and embossed cards up to 1.25 mm thick.
- Paper Detection: Ultrasonic paper jam detection.
Avision AD3100F ADF & Legal Flatbed Document Scanner
The Avision AD3100F Scanner combines fast batch scanning with a legal-size flatbed for documents that need individual placement. It gives businesses in Pakistan a single device for processing loose paperwork, legal-size forms and items unsuitable for automatic feeding.
100 ppm Scanning with a 100-Sheet Feeder
Scan A4 documents at up to 100 pages per minute or 200 images per minute in duplex mode. These speeds apply to color and black-and-white scanning at both 200 and 300 dpi. The ADF holds up to 100 sheets of 80 g/m² paper, with a recommended daily volume of up to 15,000 pages.
Legal-Size Flatbed with 1200 dpi Optical Resolution
The integrated flatbed accommodates documents up to 216 × 356 mm and provides an optical resolution of 1200 × 1200 dpi. This makes it useful for capturing fine details on documents requiring careful placement. The ADF provides 600 × 600 dpi optical resolution, with image output available up to 1200 × 1200 dpi.
Flexible Paper and Card Handling
The automatic feeder supports documents as small as 50 × 50 mm, paper weights from 27 to 413 g/m² and embossed cards up to 1.25 mm thick. Long paper mode handles extended documents at selected resolutions. Ultrasonic paper jam detection helps identify feeding problems during scanning.
USB Connectivity and Document Capture Software
Connect through USB 3.2 Gen 1×1 and use compatible capture applications with TWAIN, ISIS or WIA drivers. Listed software includes Button Manager, PaperPort and AVScan. Supported output formats include PDF, TIFF, JPEG, PNG and Microsoft Office formats, depending on the application used. Software availability and functionality may vary by operating system.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD3100F |
| Scanner Type | ADF and legal-size flatbed document scanner |
| Document Feeding Modes | ADF and flatbed |
| ADF Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 512 MB SDRAM |
| Black and White Speed | Up to 100 ppm simplex / 200 ipm duplex at 200 or 300 dpi, A4 |
| Color Speed | Up to 100 ppm simplex / 200 ipm duplex at 200 or 300 dpi, A4 |
| Flatbed Scanning Speed | 1.5 seconds at 200 or 300 dpi, A4, in black and white or color |
| Recommended Daily Volume | Up to 15,000 pages |
| ADF Capacity | Up to 100 sheets of A4, 80 g/m² paper |
| Flatbed Optical Resolution | 1200 × 1200 dpi |
| ADF Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Document Size | 50 × 50 mm |
| Maximum Standard ADF Scan Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| Maximum Flatbed Scan Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| ADF Paper Width Accommodation | Up to 242 mm; maximum standard scanning width is 216 mm |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Interface | USB 3.2 Gen 1×1 |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort and AVScan |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12–10.15, 11 Big Sur, 12 Monterey, 13 Ventura and 14 Sonoma |
| Dimensions (W × D × H) | 809.4 × 323.2 × 330 mm |
| Weight | 9.1 kg |
| Power Consumption | Operation: <60W; ready: <15W; sleep: <2.9W; off: <0.3W |
| Acoustical Noise | Operation: <63 dB; ready: <45 dB |
Avision AD3100F Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD3100F Scanner price in Pakistan, current availability and ordering details.
