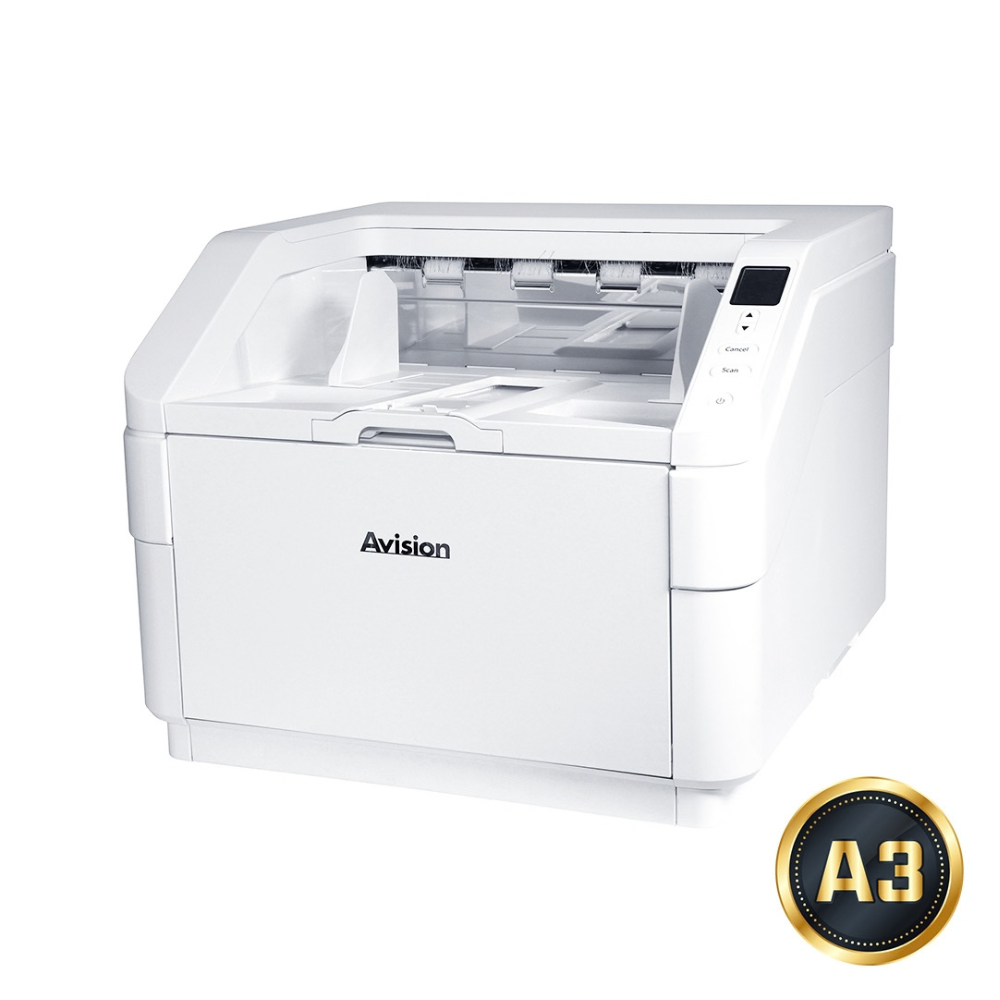

Avision AD8130zN A3 Network Production Scanner
- Scanning Speed: Up to 150 ppm / 300 ipm at 200 dpi and 130 ppm / 260 ipm at 300 dpi.
- Feeder Capacity: 500-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 100,000 pages per day.
- Document Size: Supports A3 documents up to 308 × 432 mm.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Connectivity: USB 3.2 Gen 1×1 and RJ-45 Ethernet.
- Paper Protection: Paper protection technology with triple ultrasonic double-feed detection.
- Flexible Feeding: Straight-through and U-turn paper paths, plus embossed card scanning up to 1.25 mm thick.
Avision AD8130zN A3 Network Production Scanner
The Avision AD8130zN Scanner combines high-volume document capture with USB and wired network connectivity. Its 500-sheet automatic document feeder and A3 scanning capability support organizations in Pakistan digitizing large batches of records, invoices, forms and other business documents.
Fast Duplex Scanning at Different Resolutions
Scan A4 documents at up to 150 pages per minute or 300 images per minute at 200 dpi. At 300 dpi, the scanner delivers up to 130 pages per minute or 260 images per minute. These speeds apply to both color and black-and-white scanning, allowing teams to select the resolution appropriate for each task.
500-Sheet Feeder for Production Workloads
The ADF accommodates up to 500 sheets of A4, 80 g/m² paper, reducing the need for frequent loading. A recommended daily volume of up to 100,000 pages supports demanding digitization projects. Paper protection technology and triple ultrasonic double-feed detection help identify feeding issues during batch processing.
A3 Documents, Long Paper and Card Scanning
The AD8130zN handles documents up to 308 × 432 mm, including A3 sheets. Its straight-through path supports paper weights of 27–413 g/m², while the U-turn path supports 27–210 g/m². Long paper scanning is available at selected resolutions, and embossed cards up to 1.25 mm thick are supported.
Network Connectivity and Document Capture Software
Connect through USB 3.2 Gen 1×1 or the built-in Ethernet interface. Listed software includes Button Manager, PaperPort, AVScan and Virtual Scanner Link, alongside TWAIN, ISIS and WIA drivers. The scanner provides 600 × 600 dpi optical resolution, with output up to 1200 × 1200 dpi. File format availability and software functionality depend on the application and operating system used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD8130zN |
| Scanner Type | A3 network production document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 1 GB SDRAM |
| Black and White Speed at 200 dpi | Up to 150 ppm simplex / 300 ipm duplex, A4 |
| Black and White Speed at 300 dpi | Up to 130 ppm simplex / 260 ipm duplex, A4 |
| Color Speed at 200 dpi | Up to 150 ppm simplex / 300 ipm duplex, A4 |
| Color Speed at 300 dpi | Up to 130 ppm simplex / 260 ipm duplex, A4 |
| Recommended Daily Volume | Up to 100,000 pages |
| ADF Capacity | Up to 500 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Size — Single-Page Feeding | 50 × 65 mm |
| Minimum ADF Size — Multiple-Page Feeding | 50 × 85 mm |
| Maximum Standard ADF Document Size | 308 × 432 mm; supports A3 |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight — Straight Path | 27–413 g/m² |
| Paper Weight — U-Turn Path | 27–210 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Paper Protection | Paper protection technology and triple ultrasonic double-feed detection |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| USB Interface | USB 3.2 Gen 1×1 |
| Ethernet Port | RJ-45 Ethernet, listed at 10/100/1000 Mbps |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort, AVScan and Virtual Scanner Link |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 460 × 784 × 362 mm |
| Minimum Dimensions (W × D × H) | 460 × 446 × 362 mm |
| Weight | 22.4 kg |
| Power Consumption | Operation: <73W; ready: <14W; sleep: <2.7W; off: <0.2W |
| Acoustical Noise | Operation: <55 dB; ready: <25 dB |
Avision AD8130zN Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD8130zN Scanner price in Pakistan, current availability and ordering details.
