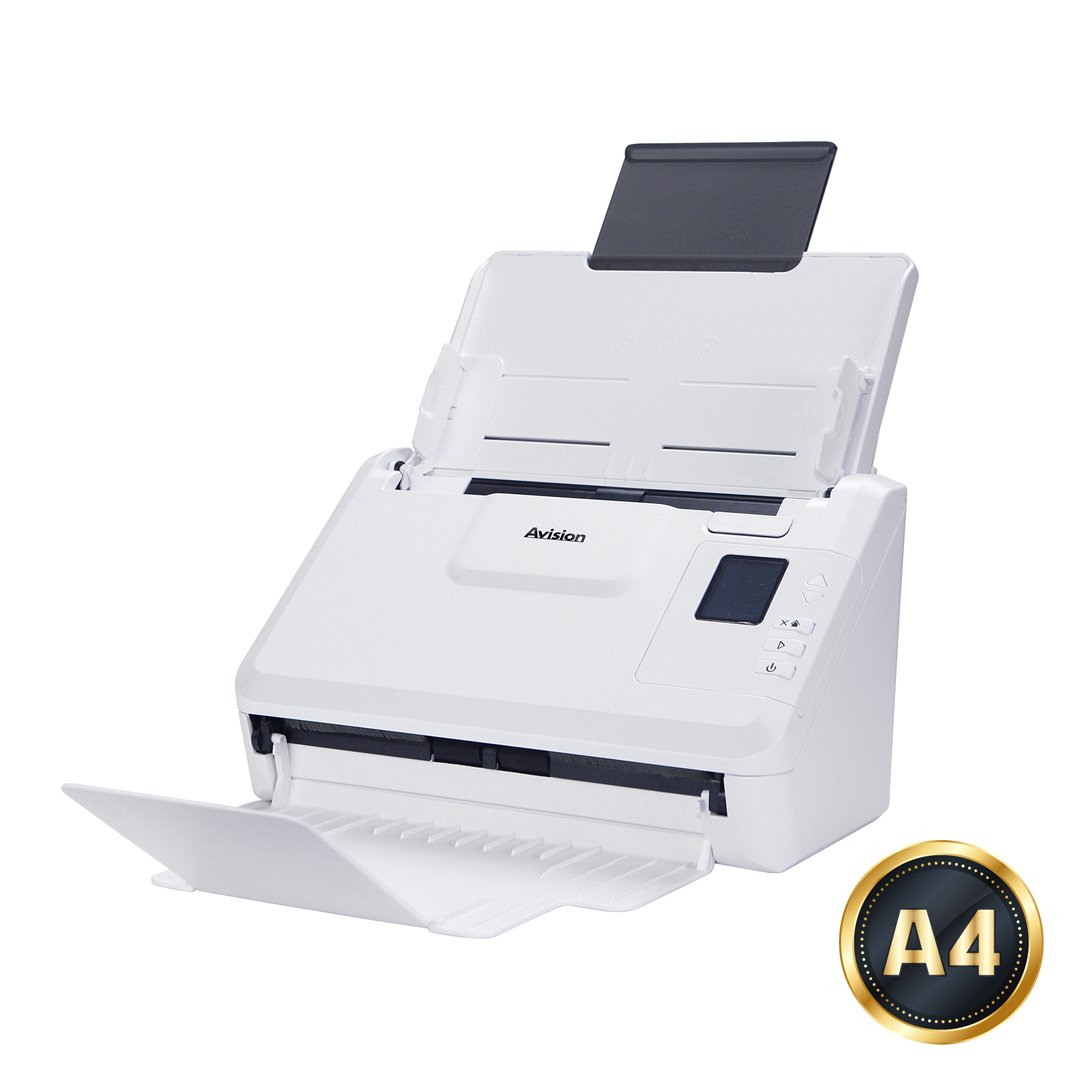

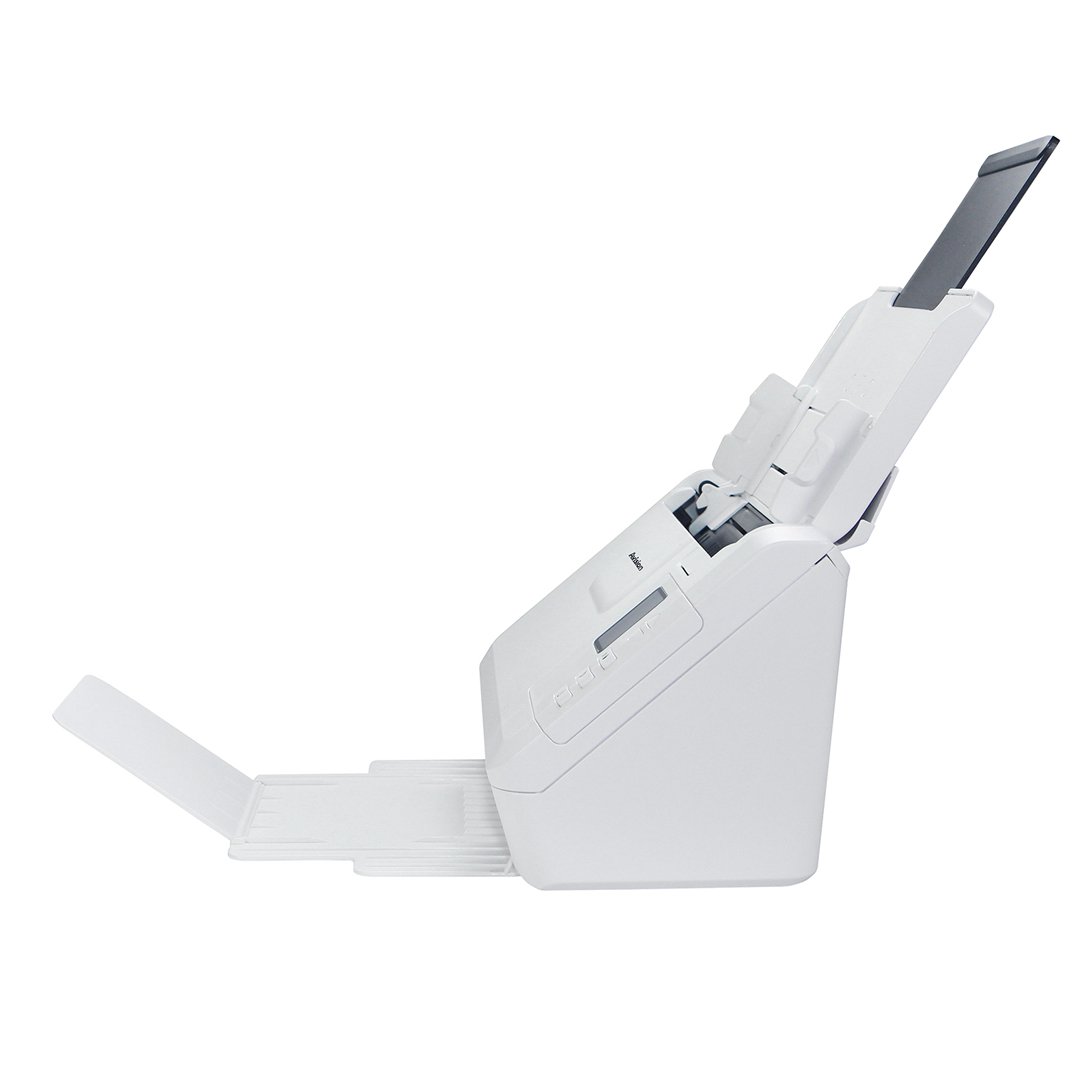

Avision AD340GN Network Document Scanner
- High-speed duplex scanning up to 40 ppm / 80 ipm
- 50-sheet automatic document feeder
- Gigabit Ethernet and USB 3.2 connectivity
- 600 dpi optical and 1200 dpi output resolution
- Supports documents, business cards and embossed ID cards
- Ultrasonic double-feed detection for reliable scanning
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 8,000 pages
Avision AD340GN High-Speed Network Document Scanner
The Avision AD340GN is a compact network document scanner designed for businesses that require fast and reliable document capture. It scans at up to 40 ppm and 80 ipm, capturing both sides of a document in one pass for efficient batch processing.
USB 3.2 and built-in Gigabit Ethernet connectivity allow the AD340GN to operate as a direct desktop scanner or as part of a shared office network. It is suitable for banks, healthcare facilities, educational institutions, law firms, government departments and businesses across Pakistan.
Fast Duplex Scanning with a 50-Sheet ADF
The 50-sheet automatic document feeder supports continuous duplex scanning at up to 40 ppm and 80 ipm in black-and-white or colour at both 200 dpi and 300 dpi. With a recommended daily volume of up to 8,000 pages, the scanner is suitable for busy office and departmental workflows.
Flexible Document and Card Handling
The AD340GN handles documents from 74 x 52 mm (A8) up to 216 x 356 mm (Legal). Its broad paper-weight range of 27–413 g/m² supports standard office documents, business cards, heavy media and embossed plastic ID cards up to 1.25 mm thick.
Reliable Feeding and Long-Paper Scanning
Ultrasonic double-feed detection identifies overlapping sheets during batch scanning and helps reduce the risk of missing pages. Long-paper mode supports documents up to 240 inches at 200 dpi, 218 inches at 300 dpi and 59 inches at 600 dpi.
Gigabit Ethernet and USB Connectivity
Connect the AD340GN directly to a computer through USB 3.2 or deploy it across an office network using RJ-45 Gigabit Ethernet. Scans can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel, RTF, XPS and HTML.
Contact Tescom Engineering for the latest Avision AD340GN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | Compact Network ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 40 ppm simplex / 80 ipm duplex |
| ADF Capacity | 50 sheets of 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512MB SDRAM |
| USB Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 74 x 52 mm (A8) |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic detection |
| Recommended Daily Volume | Up to 8,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Maximum Dimensions | 282 x 457 x 334 mm |
| Minimum Dimensions | 282 x 152 x 165 mm |
| Power Consumption | Operation: <17W; Ready: <6W; Sleep: <1.9W; Off: <0.2W |
| Acoustical Noise | Operation: <52 dB; Ready: <25 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and WorldCard Team |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
