Avision AD7100N A3 Network Production Scanner
- High-speed scanning up to 100 ppm / 200 ipm
- Large 300-sheet automatic document feeder
- Supports documents up to A3 size
- Gigabit Ethernet and USB 3.2 connectivity
- 600 dpi optical and 1200 dpi output resolution
- Paper protection and ultrasonic double-feed detection
- Scans cards up to 1.44 mm thick
- Recommended daily volume of up to 30,000 pages

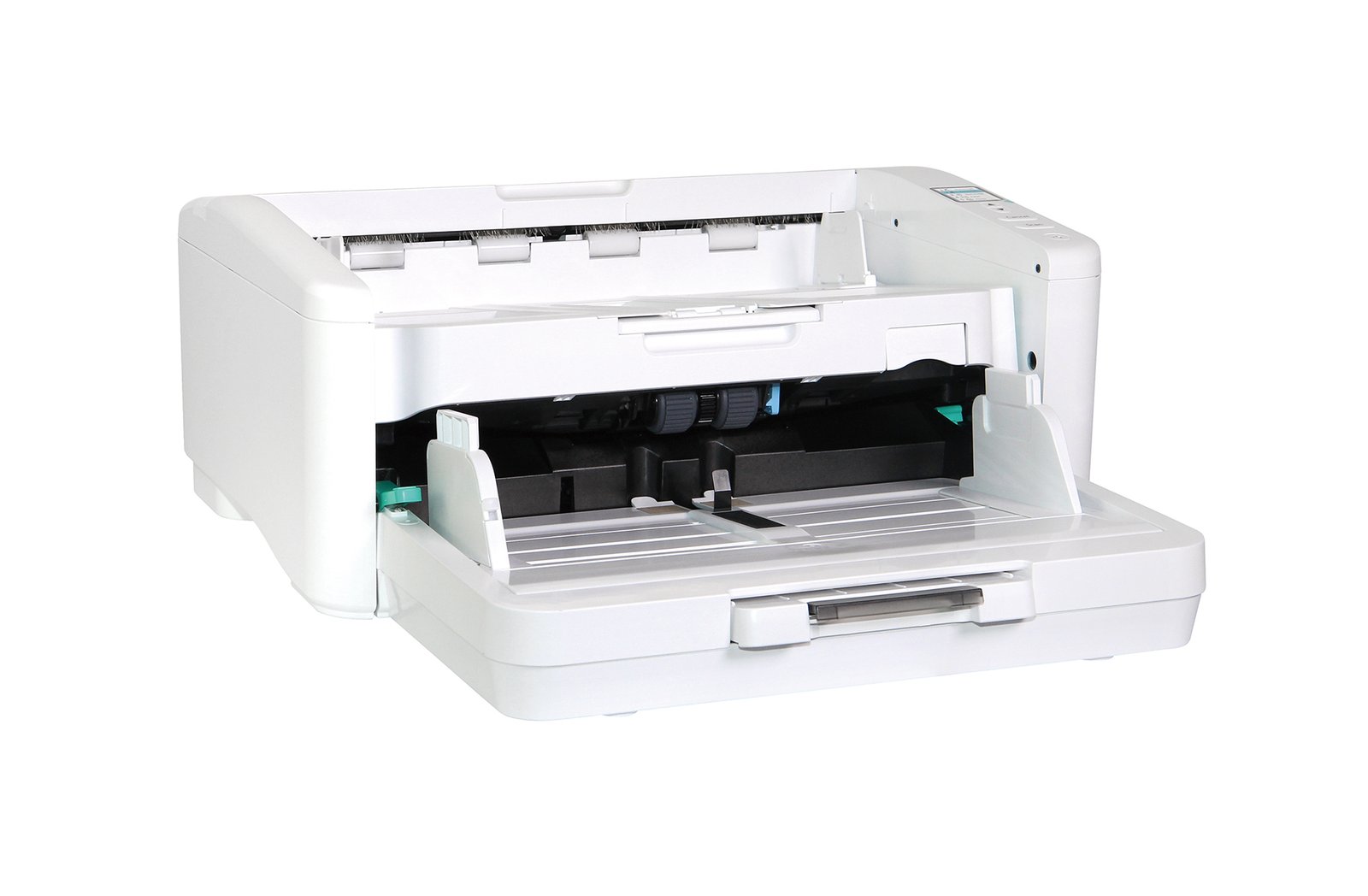

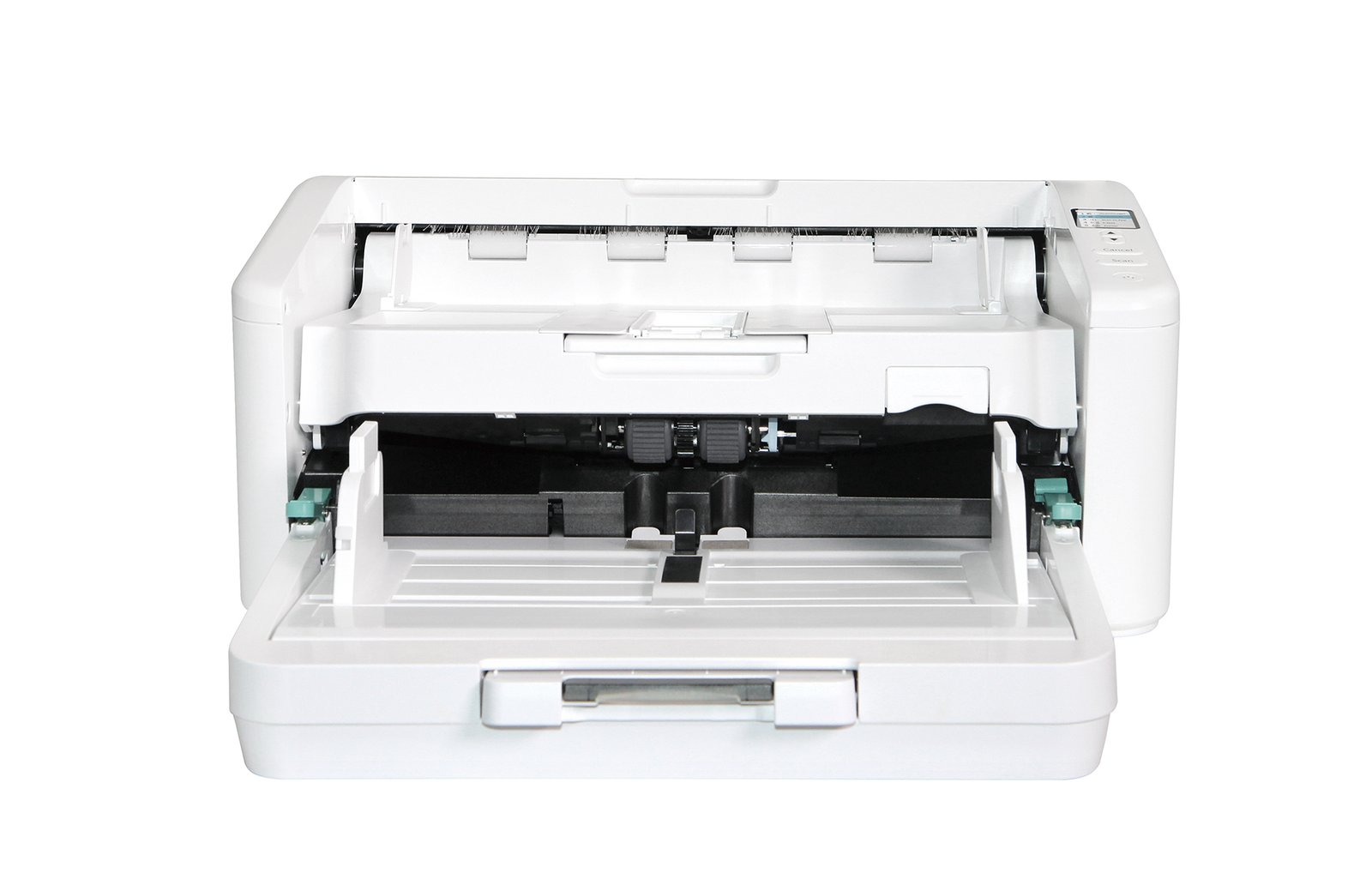

Avision AD7100N High-Speed A3 Network Scanner
The Avision AD7100N is a high-volume production scanner designed for organisations that require fast and dependable A3 document capture. It scans colour, grayscale and monochrome documents at up to 100 ppm and 200 ipm, helping teams process large document batches efficiently.
Built-in Gigabit Ethernet and USB 3.2 connectivity support both shared network deployment and direct computer use. The AD7100N is suitable for banks, government departments, educational institutions, healthcare organisations, service bureaus and large businesses in Pakistan.
High-Speed Duplex Production Scanning
The AD7100N captures both sides of a document in a single pass at up to 100 ppm and 200 ipm. It maintains this performance in black-and-white and colour at both 200 dpi and 300 dpi, providing consistent speed for demanding digitisation projects.
Large 300-Sheet Automatic Document Feeder
The robust 300-sheet automatic document feeder reduces interruptions while processing large scanning jobs. Combined with a recommended daily volume of up to 30,000 pages, it provides the capacity required for busy centralised scanning departments and production workflows.
A3 Document and Card Support
The scanner accepts documents up to 308 x 432 mm (A3). Its straight paper path handles media from 40 to 413 g/m², while the U-turn path supports paper weights from 40 to 210 g/m². Cards up to 1.44 mm thick can also be scanned.
Reliable Paper Handling and Protection
Paper-protection technology and ultrasonic double-feed detection help identify feeding problems, overlapping sheets and potential paper damage. Long-paper mode supports documents up to 240 inches at 200 dpi, 218 inches at 300 dpi and 59 inches at 600 dpi.
Network-Ready Document Capture
Connect the AD7100N directly to a workstation through USB 3.2 or deploy it across a compatible network using RJ-45 Gigabit Ethernet. Scanned documents can be saved in PDF, JPEG, TIFF, Word, Excel, RTF, XPS, HTML and other popular formats.
Contact Tescom Engineering for the latest Avision AD7100N scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Volume A3 Network Production Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 100 ppm simplex / 200 ipm duplex |
| ADF Capacity | 300 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 1GB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 65 mm for single pages; 50 x 85 mm for multiple pages |
| ADF Maximum Size | 308 x 432 mm (A3) |
| Straight-Path Paper Weight | 40–413 g/m² |
| U-Turn-Path Paper Weight | 40–210 g/m² |
| Card Scanning | Cards up to 1.44 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Feed Protection | Paper-protection technology |
| Double-Feed Detection | Ultrasonic detection |
| Recommended Daily Volume | Up to 30,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Dimensions (W x D x H) | 460 x 680 x 198 mm |
| Weight | 12 kg |
| Power Consumption | Operation: <48W; Ready: <14W; Sleep: <3.1W; Off: <0.2W |
| Acoustical Noise | Operation: <58 dB; Standby: <25 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver and Virtual Scanner Link |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
