Avision AD545GN Network Document Scanner
- High-speed scanning up to 60 ppm / 120 ipm
- 100-sheet automatic document feeder
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical and 1200 dpi output resolution
- Supports documents, business cards and embossed ID cards
- Ultrasonic double-feed detection for reliable scanning
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 10,000 sheets

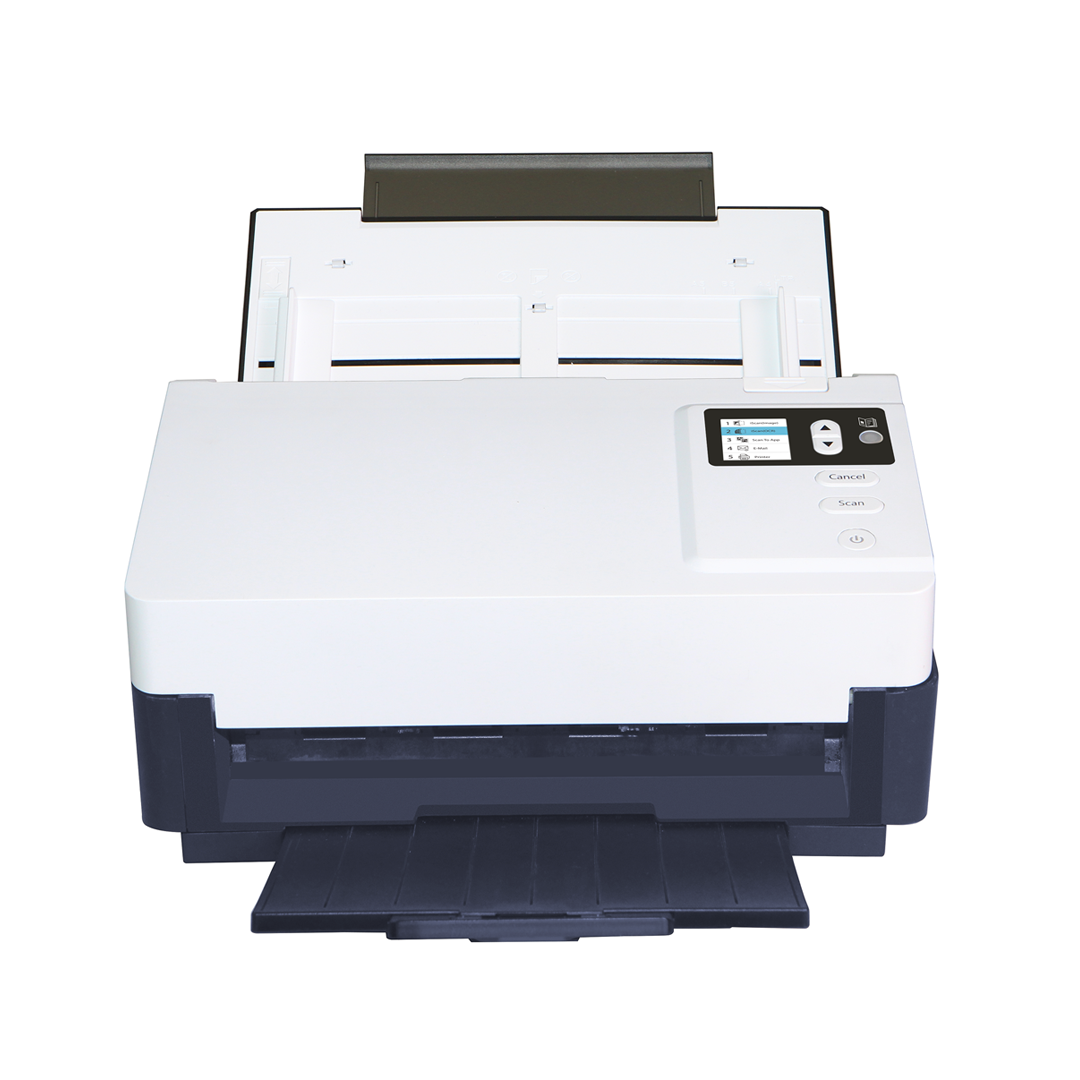

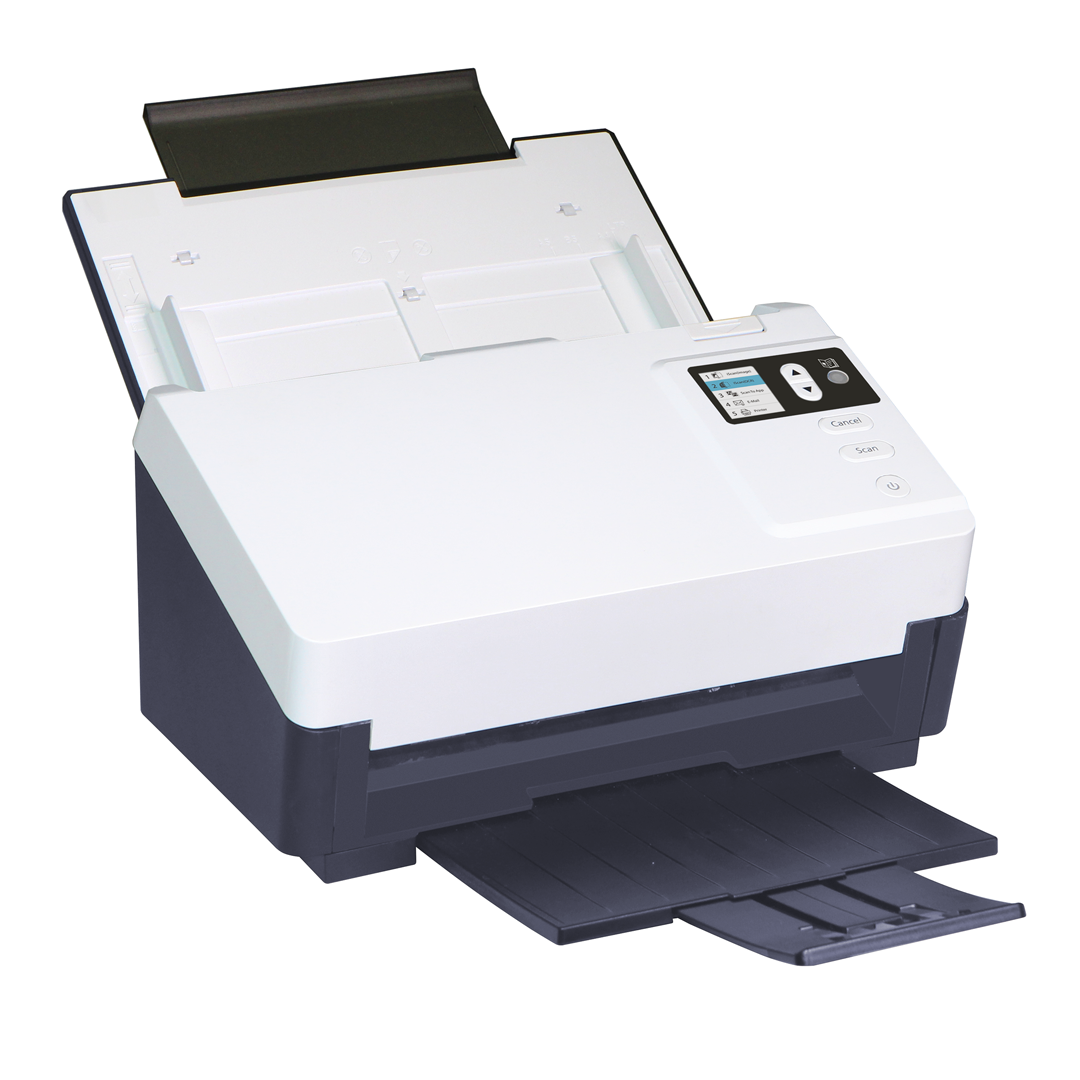

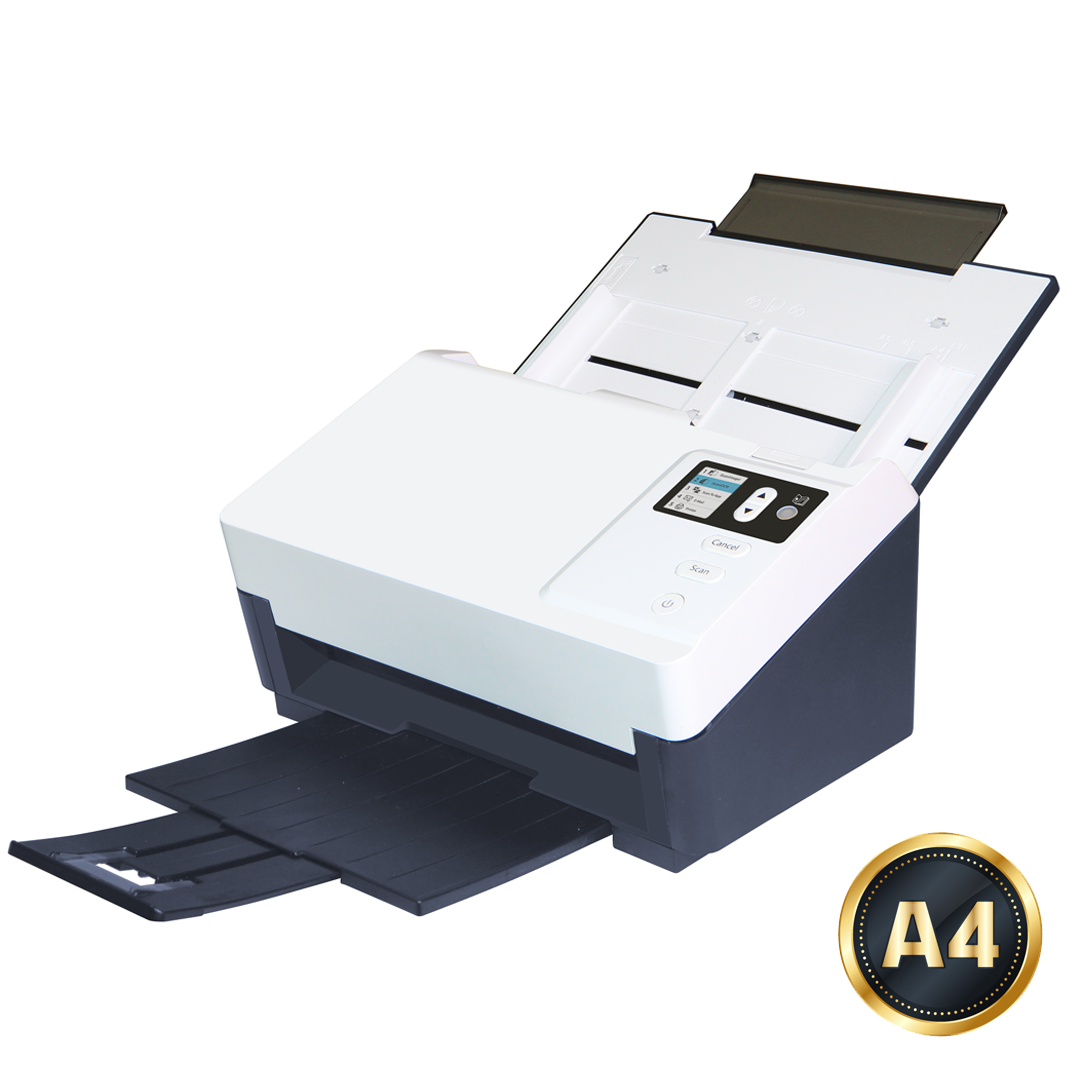

Avision AD545GN High-Speed Network Document Scanner
The Avision AD545GN is a fast and reliable network ADF scanner designed for businesses that require efficient document capture and dependable wired connectivity. It scans at up to 60 ppm and 120 ipm, capturing both sides of a document in one pass for productive batch scanning.
USB 3.2 and built-in Gigabit Ethernet allow the AD545GN to operate as a direct desktop scanner or as part of a shared office network. It is suitable for banks, healthcare facilities, educational institutions, law firms, government departments and businesses across Pakistan.
Fast Duplex Scanning with a 100-Sheet ADF
The 100-sheet automatic document feeder reduces interruptions while processing large document batches. Black-and-white scanning reaches up to 60 ppm and 120 ipm at 200 dpi and 300 dpi. Colour performance reaches 60 ppm and 120 ipm at 200 dpi or 45 ppm and 90 ipm at 300 dpi.
With a recommended daily volume of up to 10,000 sheets, the AD545GN is designed for busy office and departmental scanning workflows.
Flexible Document, Card and Booklet Handling
The scanner supports documents from 50 x 50 mm up to Legal size. It handles paper weights from 27 to 413 g/m², making it suitable for standard documents, business cards and heavy media. Embossed plastic cards up to 1.40 mm thick are supported, along with a dedicated booklet-scanning button.
Reliable Feeding and Image Processing
Ultrasonic double-feed detection identifies overlapping sheets during batch scanning and helps reduce the risk of missed pages. Avision’s image-processing technology automatically crops, straightens and optimises scanned images, producing cleaner digital files with less manual adjustment.
Long-Paper and Network Scanning
Long-paper mode supports documents up to 240 inches at 200 dpi, 218 inches at 300 dpi and 59 inches at 600 dpi. Users can connect directly through USB 3.2 or deploy the scanner across an office network using RJ-45 Gigabit Ethernet.
Scanned documents can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel, RTF, XPS and HTML.
Contact Tescom Engineering for the latest Avision AD545GN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed Network ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| B/W Speed at 200 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| B/W Speed at 300 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Colour Speed at 200 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Colour Speed at 300 dpi | Up to 45 ppm simplex / 90 ipm duplex |
| ADF Capacity | 100 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512MB SDRAM |
| USB Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 50 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| ADF Paper Width | Up to 242 mm |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.40 mm thick |
| Booklet Scanning | Dedicated booklet-scan button supported |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic detection |
| Recommended Daily Volume | Up to 10,000 sheets |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Maximum Dimensions | 669.8 x 316 x 254.9 mm |
| Minimum Dimensions | 216.4 x 316 x 175.9 mm |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver, Virtual Scanner Link, Linux Driver and Mac Driver |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
