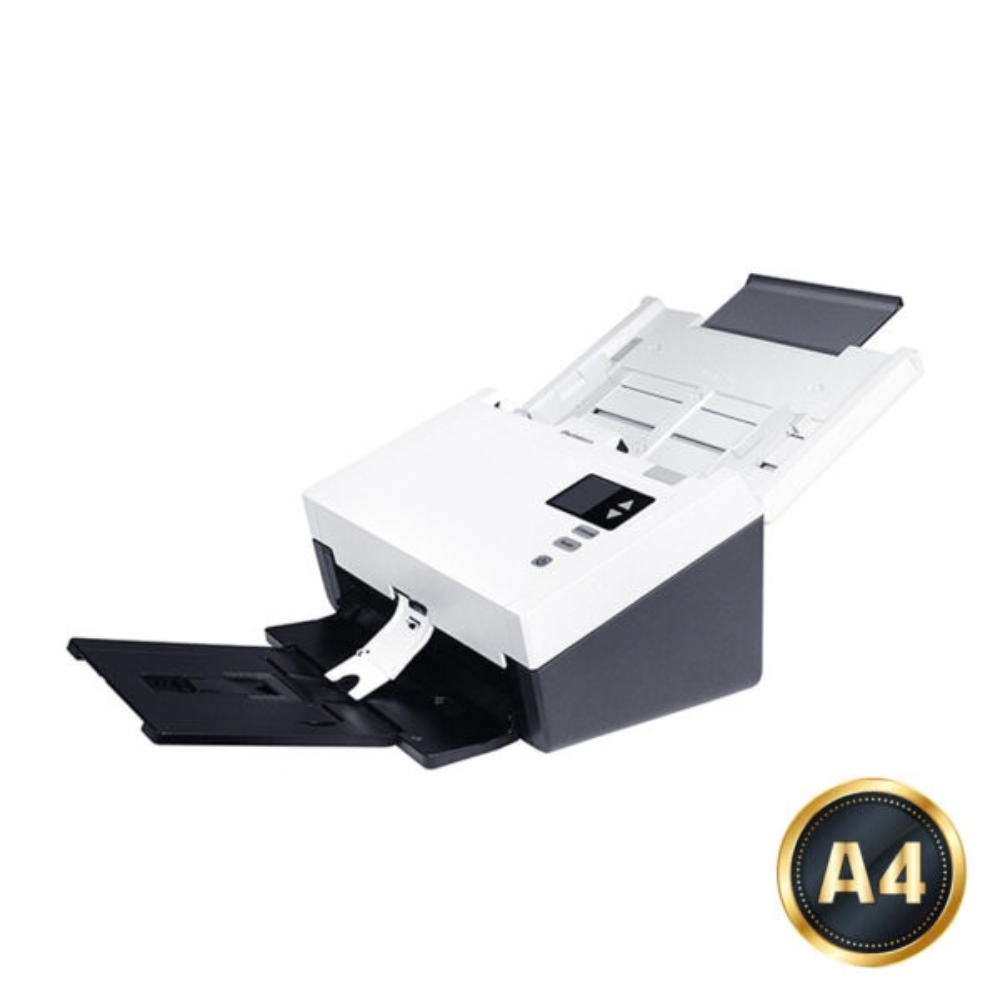

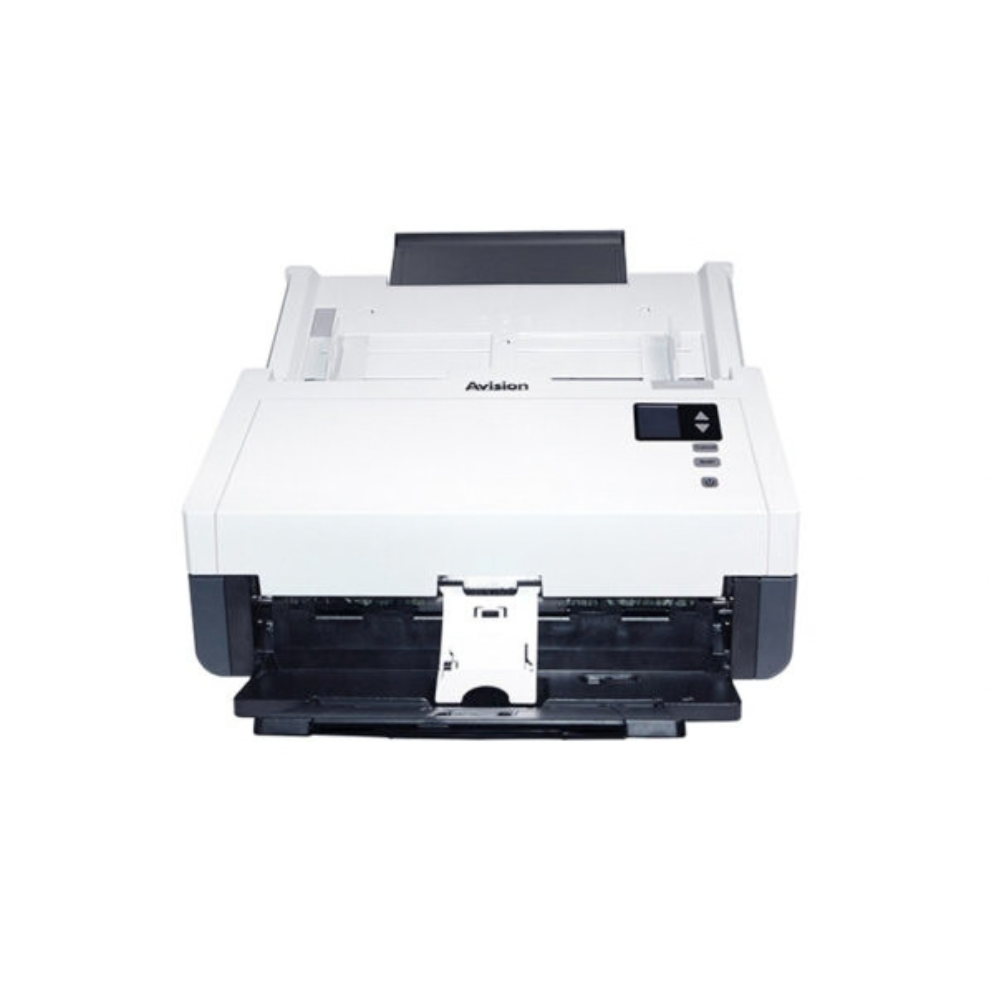

Avision AD345GN-AEG Network Document Scanner
- Scanning Speed: Up to 60 ppm / 120 ipm in black and white at 200–300 dpi and color at 200 dpi.
- Color at 300 dpi: Up to 50 ppm / 100 ipm.
- Feeder Capacity: 100-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 10,000 sheets per day.
- Connectivity: USB 3.2 Gen 1×1 and Gigabit Ethernet.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Image Processing: Automatic cropping, straightening and image optimization.
- Card Scanning: Supports embossed cards up to 1.25 mm thick.
Avision AD345GN-AEG Network Document Scanner
The Avision AD345GN-AEG Scanner combines duplex document capture with USB and wired network connectivity. It supports businesses in Pakistan processing office records, forms, business cards and plastic ID cards, with a 100-sheet feeder for routine batch scanning.
Fast Scanning with Resolution-Specific Performance
Scan black-and-white documents at up to 60 pages per minute or 120 images per minute at 200 and 300 dpi. Color scanning reaches the same speeds at 200 dpi, while color at 300 dpi delivers up to 50 pages per minute or 100 images per minute. These options allow operators to balance image detail and processing speed.
100-Sheet ADF and Flexible Media Handling
The automatic document feeder holds up to 100 sheets of A4, 80 g/m² paper. It accommodates documents from 50 × 50 mm up to legal size, paper weights from 27 to 413 g/m² and embossed cards up to 1.25 mm thick. A recommended daily volume of up to 10,000 sheets supports regular office document processing.
Automatic Image Processing and Feeding Detection
Avision’s embedded image processor automatically crops, straightens and optimizes scanned images. The scanner provides 600 × 600 dpi optical resolution, with output up to 1200 × 1200 dpi. Ultrasonic paper jam detection helps identify feeding problems, while long paper mode supports extended documents at selected resolutions.
Ethernet and USB Connection Options
Connect the AD345GN-AEG through Gigabit Ethernet or USB 3.2 Gen 1×1 to suit your scanning setup. Listed software includes Button Manager, PaperPort and AVScan, alongside TWAIN and ISIS drivers. Software functionality, network scanning support and available output formats depend on the operating system and application used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD345GN-AEG |
| Scanner Type | Sheet-fed network document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 512 MB SDRAM |
| Black and White Speed at 200 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Black and White Speed at 300 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Color Speed at 200 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Color Speed at 300 dpi | Up to 50 ppm simplex / 100 ipm duplex |
| Recommended Daily Volume | Up to 10,000 sheets |
| ADF Capacity | Up to 100 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Image Processing | Embedded Avision image processor with automatic cropping, straightening and image optimization |
| Minimum ADF Document Size | 50 × 50 mm |
| Maximum Standard ADF Document Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| USB Interface | USB 3.2 Gen 1×1 |
| Ethernet Port | RJ-45, 10/100/1000 Mbps |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, Button Manager, PaperPort and AVScan |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 316 × 680 × 239 mm |
| Minimum Dimensions (W × D × H) | 316 × 191 × 168 mm |
| Weight | 4.3 kg |
| Power Consumption | Operation: <37.22W; ready: <8.11W; sleep: <2.17W; off: <0.1W |
| Acoustical Noise | Operation: <56 dB; ready: <45 dB |
Avision AD345GN-AEG Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD345GN-AEG Scanner price in Pakistan, current availability and ordering details.
