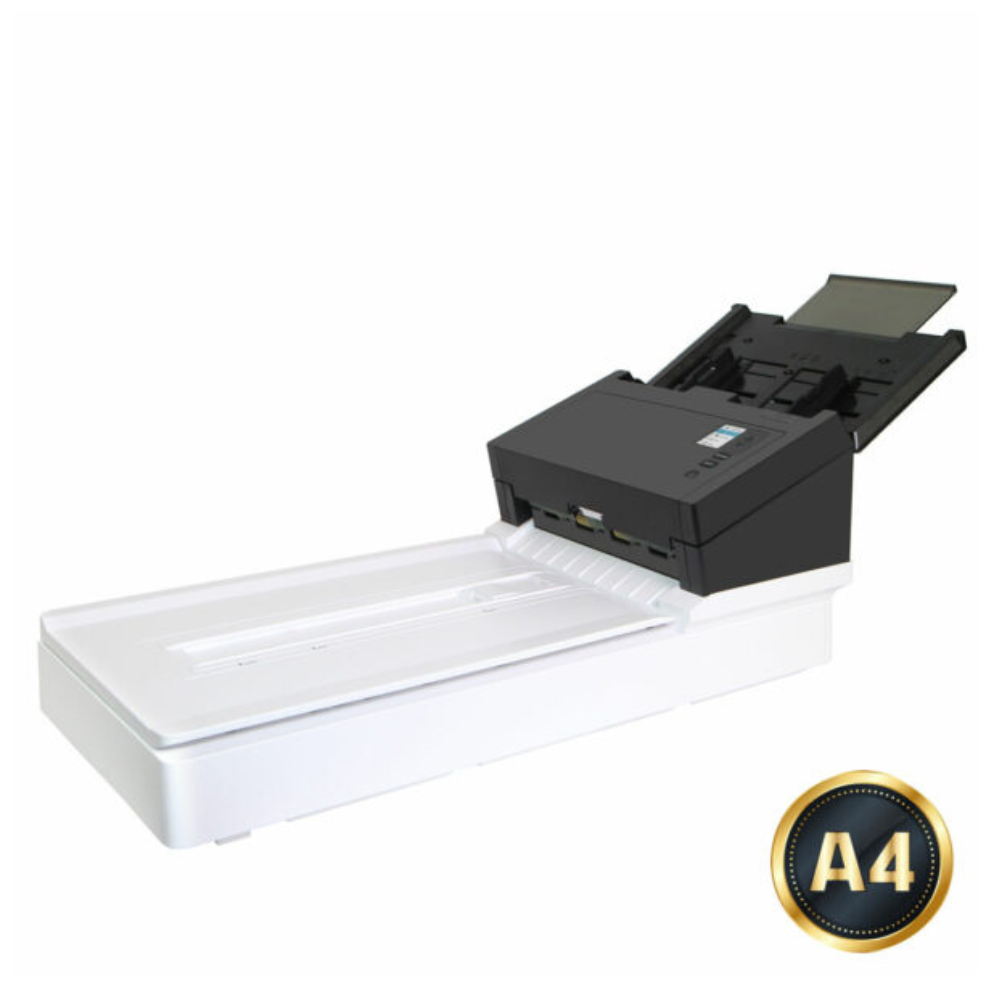

Avision AD360GFWN Wireless ADF & Flatbed Document Scanner
- Scanning Speed: Up to 80 ppm / 160 ipm at 200 dpi and 60 ppm / 120 ipm at 300 dpi.
- Scanning Modes: Duplex automatic document feeder and integrated flatbed.
- Feeder Capacity: 100-sheet ADF for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 10,000 sheets per day.
- Optical Resolution: 1200 × 1200 dpi flatbed and 600 × 600 dpi ADF.
- Connectivity: Wi-Fi, Gigabit Ethernet and USB 3.2 Gen 1×1.
- Image Processing: Automatically crops, straightens and optimizes scanned images.
- Card Scanning: Supports embossed cards up to 1.25 mm thick.
Avision AD360GFWN Wireless ADF & Flatbed Document Scanner
The Avision AD360GFWN Scanner combines wireless connectivity, fast batch scanning and an integrated flatbed in one device. For businesses in Pakistan handling both loose paperwork and documents requiring individual placement, it provides flexible capture options without needing separate ADF and flatbed scanners.
Fast Duplex Scanning with a 100-Sheet ADF
Scan at up to 80 pages per minute or 160 images per minute at 200 dpi. At 300 dpi, the scanner delivers up to 60 pages per minute or 120 images per minute. These speeds apply to color and black-and-white scanning. The 100-sheet feeder and recommended daily volume of up to 10,000 sheets support regular office batch processing.
High-Resolution Flatbed for Individual Documents
The integrated flatbed provides 1200 × 1200 dpi optical resolution for detailed image capture. Use it for originals that require careful placement instead of automatic feeding. The ADF offers 600 × 600 dpi optical resolution, with image output available up to 1200 × 1200 dpi.
Wi-Fi, Ethernet and USB Connectivity
Connect through Wi-Fi, Gigabit Ethernet or USB 3.2 Gen 1×1 to suit your office setup. Listed software includes Virtual Scanner Link, Button Manager, PaperPort and AVScan. Network scanning functionality and software availability depend on the operating system and supported application.
Flexible Paper Handling and Image Processing
The ADF accommodates standard documents from 50 × 50 mm to legal size, with support for paper weights of 27–413 g/m² and embossed cards up to 1.25 mm thick. Ultrasonic paper jam detection helps identify feeding issues. Avision’s image processor automatically crops, straightens and optimizes scanned images to simplify document preparation after capture.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD360GFWN |
| Scanner Type | Wireless network document scanner with ADF and flatbed |
| Document Feeding Modes | Flatbed and ADF |
| ADF Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 512 MB SDRAM |
| Black and White Speed at 200 dpi | Up to 80 ppm simplex / 160 ipm duplex |
| Black and White Speed at 300 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Color Speed at 200 dpi | Up to 80 ppm simplex / 160 ipm duplex |
| Color Speed at 300 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| Flatbed Scanning Speed | 1.5 seconds at 200 or 300 dpi, in black and white or color |
| Recommended Daily Volume | Up to 10,000 sheets |
| ADF Capacity | Up to 100 sheets of A4, 80 g/m² paper |
| Flatbed Optical Resolution | 1200 × 1200 dpi |
| ADF Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Image Processing | Automatic cropping, straightening and image optimization |
| Minimum ADF Document Size | 50 × 50 mm |
| Maximum Standard ADF Scan Size | 216 × 356 mm (Legal; 8.5 × 14 inches) |
| ADF Paper Width Accommodation | Up to 242 mm; listed maximum standard scanning width is 216 mm |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| USB Interface | USB 3.2 Gen 1×1 |
| Wireless Connectivity | Wi-Fi |
| Ethernet Port | RJ-45, 10/100/1000 Mbps |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, Virtual Scanner Link, Linux Driver and Mac Driver |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 754 × 321 × 301.4 mm |
| Minimum Dimensions (W × D × H) | 545 × 321 × 231.3 mm |
| Weight | 6.9 kg |
| Acoustical Noise | Operation: ≤53 dB; ready: <45 dB |
Avision AD360GFWN Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD360GFWN Scanner price in Pakistan, current availability and ordering details.
