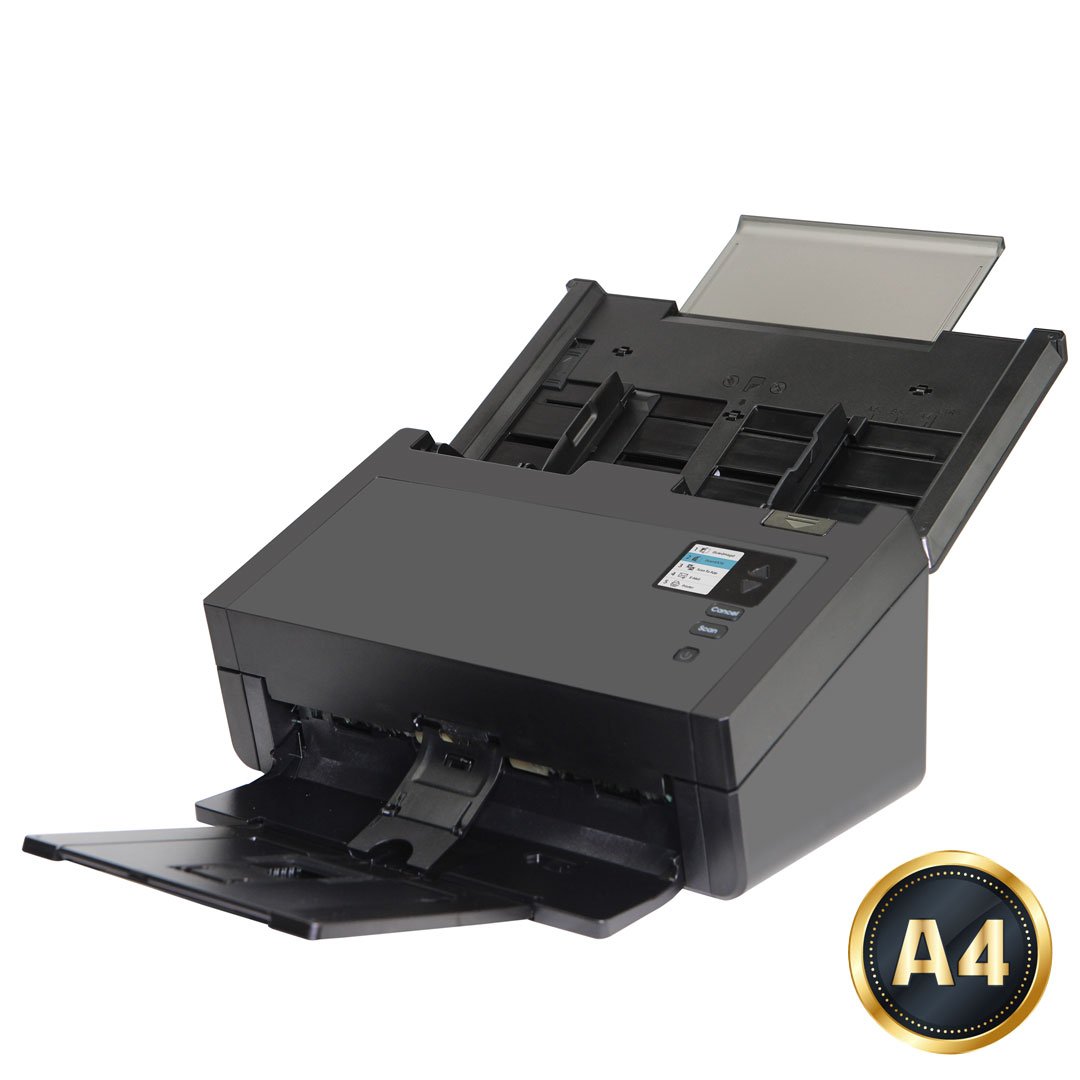

Avision AD360GN Network Document Scanner
- High-speed scanning up to 80 ppm / 160 ipm
- Large 100-sheet automatic document feeder
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical and 1200 dpi output resolution
- Handles documents, business cards and embossed ID cards
- Ultrasonic double-feed detection for reliable scanning
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 15,000 pages
Avision AD360GN High-Speed Network Document Scanner
The Avision AD360GN is a fast and reliable network document scanner designed for businesses with demanding document-capture requirements. It scans black-and-white and colour documents at up to 80 ppm and 160 ipm at 200 dpi, capturing both sides of each page in a single pass.
USB 3.2 and Gigabit Ethernet connectivity allow the AD360GN to function as a direct desktop scanner or as part of a shared departmental workflow. It is suitable for banks, healthcare facilities, schools, law firms, government departments and busy offices in Pakistan.
High-Speed Duplex Batch Scanning
The 100-sheet automatic document feeder processes large batches with fewer interruptions. Scanning speeds reach up to 80 ppm and 160 ipm at 200 dpi, while black-and-white and colour scanning at 300 dpi reaches up to 60 ppm and 120 ipm.
Flexible Document and Card Handling
The scanner accepts originals from 50 x 50 mm up to 216 x 356 mm Legal size. Its paper path handles media weighing from 27 to 413 g/m² and supports embossed cards up to 1.25 mm thick.
Reliable Feeding and Image Processing
Ultrasonic double-feed detection helps identify overlapping sheets during batch scanning and reduces the risk of missed pages. Avision’s image-processing technology can automatically crop, straighten and optimise scanned images for cleaner digital files.
Network-Ready Office Deployment
Gigabit Ethernet supports shared network use, while USB 3.2 provides a fast direct connection to a compatible computer. Long-paper mode accommodates originals up to 240 inches at 200 dpi, and scans can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel and HTML.
Contact Tescom Engineering for the latest Avision AD360GN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed Network ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Speed at 200 dpi | Up to 80 ppm simplex / 160 ipm duplex |
| Speed at 300 dpi | Up to 60 ppm simplex / 120 ipm duplex |
| ADF Capacity | 100 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512 MB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 50 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| ADF Paper Width | Up to 242 mm |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic paper jam detection |
| Recommended Daily Volume | Up to 15,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Maximum Dimensions | 316 x 680 x 239 mm |
| Minimum Dimensions | 316 x 191 x 168 mm |
| Weight | 4.3 kg |
| Acoustical Noise | Operation: ≤53 dB; Ready: <45 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, Virtual Scanner Link, Linux Driver and Mac Driver |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
