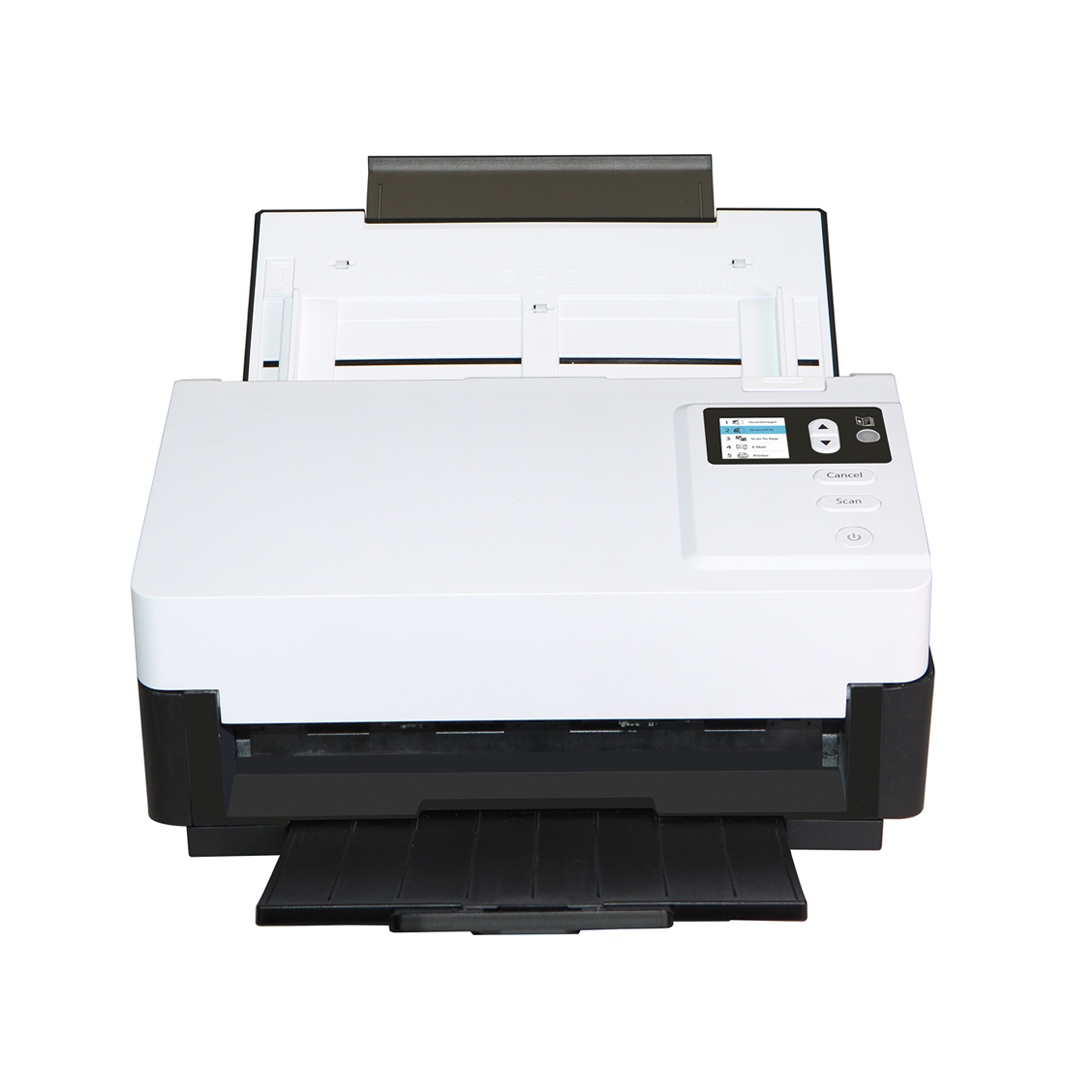

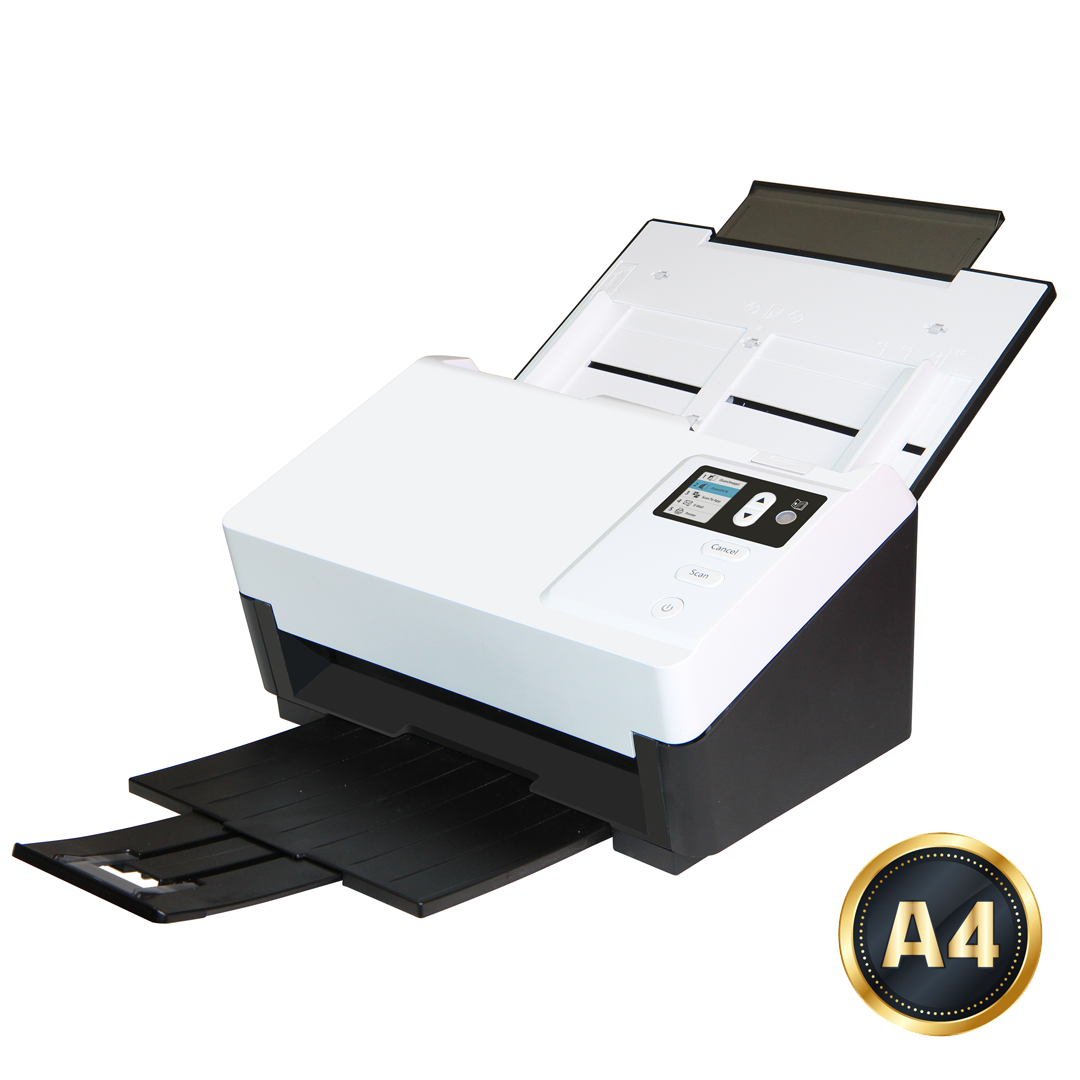

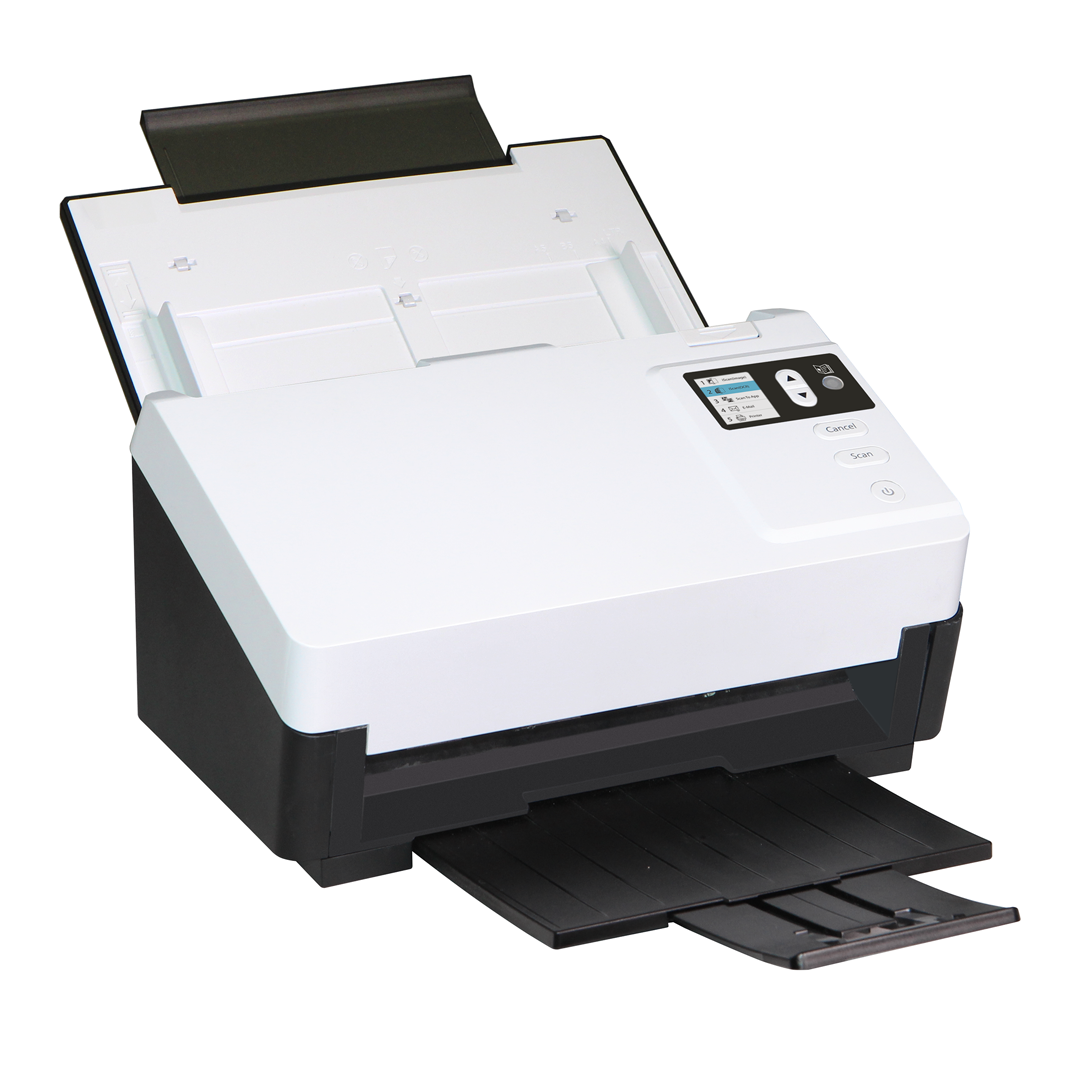

Avision AD570GN Network Document Scanner
- High-speed scanning up to 70 ppm / 140 ipm
- Large 100-sheet automatic document feeder
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical and 1200 dpi output resolution
- Handles documents, business cards and embossed ID cards
- Ultrasonic double-feed detection for reliable scanning
- Long-paper scanning up to 240 inches
- Recommended daily volume of up to 15,000 pages
Avision AD570GN High-Speed Network Document Scanner
The Avision AD570GN is a fast and dependable ADF document scanner designed for businesses that need efficient batch scanning with network connectivity. It captures black-and-white, grayscale and colour documents at up to 70 ppm and 140 ipm, scanning both sides of each page in one pass.
USB 3.2 and Gigabit Ethernet connectivity allow the AD570GN to operate as a direct desktop scanner or as part of a shared departmental workflow. It is suitable for banks, healthcare facilities, schools, law firms, government departments and busy offices in Pakistan.
Fast Duplex Scanning for Busy Workgroups
The 100-sheet automatic document feeder processes large document batches with fewer interruptions. Scanning speeds remain at up to 70 ppm and 140 ipm for black-and-white and colour documents at both 200 dpi and 300 dpi.
Flexible Document and Card Handling
The AD570GN accepts originals from 50 x 50 mm up to 216 x 356 mm Legal size. Its paper path supports media weighing from 27 to 413 g/m² and can accommodate embossed cards up to 1.25 mm thick.
Reliable Feeding and Image Processing
Ultrasonic double-feed detection helps identify overlapping pages and reduce the risk of missed documents. Avision’s image-processing technology can automatically crop, straighten and optimise scanned images, producing cleaner digital files with less manual correction.
Network-Ready Document Capture
Gigabit Ethernet enables convenient network deployment, while USB 3.2 supports direct computer connections. Long-paper mode accommodates documents up to 240 inches at 200 dpi, and scans can be saved in popular formats including PDF, JPEG, TIFF, Word, Excel and HTML.
Contact Tescom Engineering for the latest Avision AD570GN scanner price in Pakistan, current availability and ordering details.
Technical Specifications
| Scanner Type | High-Speed Network ADF Document Scanner |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Document Feeding Mode | Automatic Document Feeder |
| Scanning Speed | Up to 70 ppm simplex / 140 ipm duplex |
| ADF Capacity | 100 sheets of A4 80 g/m² paper |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | Up to 1200 x 1200 dpi |
| Memory | 512 MB SDRAM |
| Interface | USB 3.2 Gen 1×1 |
| Network Connection | RJ-45 Ethernet 10/100/1000 Mbps |
| ADF Minimum Size | 50 x 50 mm |
| ADF Maximum Size | 216 x 356 mm (Legal) |
| ADF Paper Width | Up to 242 mm |
| Paper Weight | 27–413 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Long-Paper Mode | Up to 240 in. at 200 dpi, 218 in. at 300 dpi and 59 in. at 600 dpi |
| Double-Feed Detection | Ultrasonic paper jam detection |
| Recommended Daily Volume | Up to 15,000 pages |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale Depth | 16-bit input / 8-bit output |
| Halftone Patterns | Dither and Error Diffusion |
| Maximum Dimensions | 316 x 680 x 239 mm |
| Minimum Dimensions | 316 x 191 x 168 mm |
| Weight | 4.3 kg |
| Acoustical Noise | Operation: ≤53 dB; Ready: <45 dB |
| Supported File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, Virtual Scanner Link, Linux Driver and Mac Driver |
| Operating Systems | Windows, Windows Server, Fedora, openSUSE, Debian, Ubuntu and macOS |
