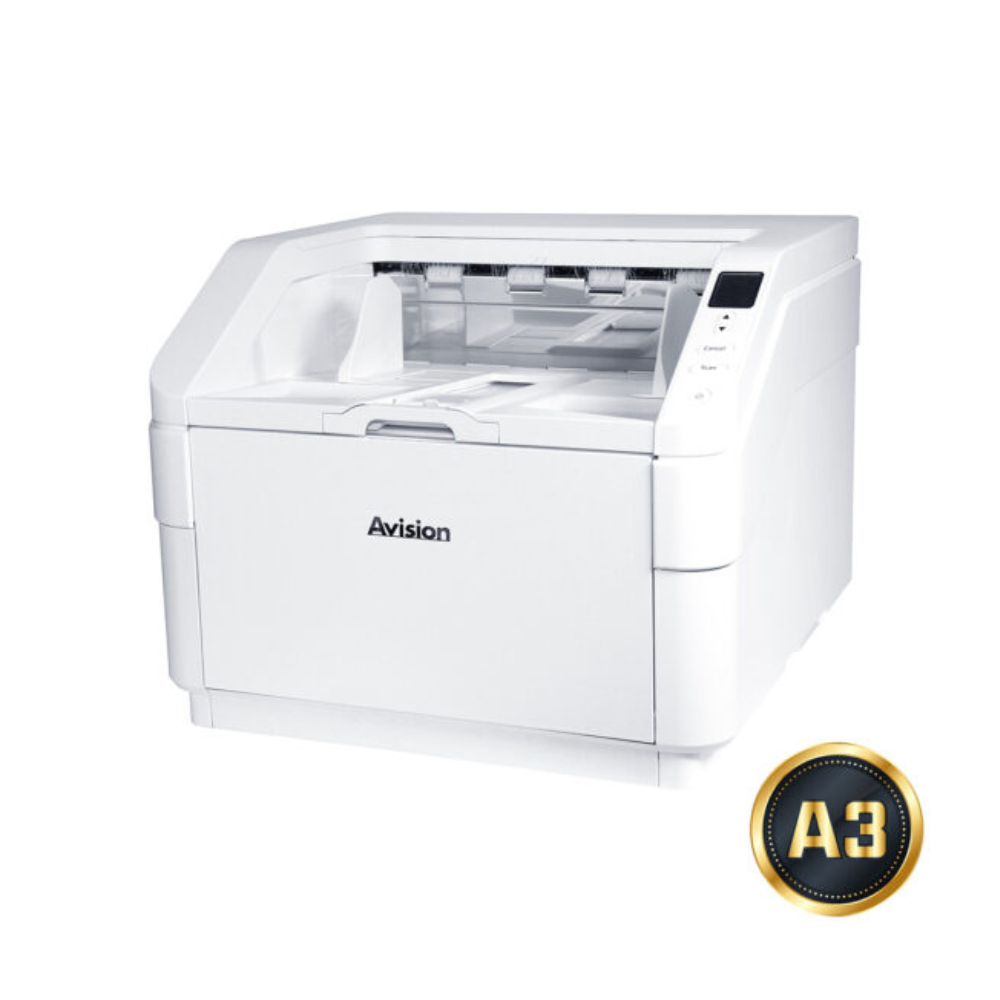

Avision AD8130z A3 Production Document Scanner
- Scanning Speed: Up to 150 ppm / 300 ipm at 200 dpi and 130 ppm / 260 ipm at 300 dpi.
- Feeder Capacity: 500-sheet automatic document feeder for A4, 80 g/m² paper.
- Daily Volume: Recommended for up to 100,000 pages per day.
- Document Size: Supports A3 documents up to 308 × 432 mm.
- Resolution: 600 × 600 dpi optical resolution with output up to 1200 × 1200 dpi.
- Paper Protection: Paper protection technology and triple ultrasonic double-feed detection.
- Paper Paths: Straight-through and U-turn paths for flexible document handling.
- Connectivity: USB 3.2 Gen 1×1.
Avision AD8130z A3 Production Document Scanner
The Avision AD8130z Scanner is designed for businesses in Pakistan processing large batches of documents. With a 500-sheet automatic document feeder, A3 support and fast duplex scanning, it helps teams digitize records, forms and mixed-size paperwork through a connected workstation.
High-Speed Scanning at 200 and 300 dpi
Capture A4 documents at up to 150 pages per minute or 300 images per minute at 200 dpi. At 300 dpi, the scanner delivers up to 130 pages per minute or 260 images per minute. These speeds apply to both color and black-and-white scanning, allowing operators to choose the resolution appropriate for each job.
500-Sheet Feeder for Large Document Batches
The automatic document feeder holds up to 500 sheets of A4, 80 g/m² paper, reducing frequent reloading during batch scanning. A recommended daily volume of up to 100,000 pages supports demanding document capture workloads. Paper protection technology and triple ultrasonic double-feed detection help identify feeding problems.
Flexible Paths for Different Paper Types
The straight-through paper path supports weights from 27 to 413 g/m², while the U-turn path handles 27 to 210 g/m². The AD8130z accepts documents up to 308 × 432 mm, embossed cards up to 1.25 mm thick and long documents at supported resolutions. Minimum feeding dimensions vary between single-page and multiple-page scanning.
USB Connectivity and Document Capture Software
USB 3.2 Gen 1×1 connects the scanner directly to a compatible computer. Listed software includes Button Manager, PaperPort and AVScan, alongside TWAIN, ISIS and WIA drivers. Optical resolution is 600 × 600 dpi, with output up to 1200 × 1200 dpi. Available file formats and software functions depend on the application and operating system used.
Technical Specifications
| Brand | Avision |
|---|---|
| Model | AD8130z |
| Scanner Type | A3 production document scanner with ADF |
| Scanning Modes | Simplex and duplex |
| Scanning Technology | CMOS-CIS |
| Light Source | LED |
| Memory | 1 GB SDRAM |
| Black and White Speed at 200 dpi | Up to 150 ppm simplex / 300 ipm duplex, A4 |
| Black and White Speed at 300 dpi | Up to 130 ppm simplex / 260 ipm duplex, A4 |
| Color Speed at 200 dpi | Up to 150 ppm simplex / 300 ipm duplex, A4 |
| Color Speed at 300 dpi | Up to 130 ppm simplex / 260 ipm duplex, A4 |
| Recommended Daily Volume | Up to 100,000 pages |
| ADF Capacity | Up to 500 sheets of A4, 80 g/m² paper |
| Optical Resolution | 600 × 600 dpi |
| Output Resolution | Up to 1200 × 1200 dpi |
| Minimum ADF Size — Single-Page Feeding | 50 × 65 mm |
| Minimum ADF Size — Multiple-Page Feeding | 50 × 85 mm |
| Maximum Standard ADF Document Size | 308 × 432 mm; supports A3 |
| Long Paper Mode | Color duplex: up to 6096 mm at up to 200 dpi; 5540 mm at up to 300 dpi; 1500 mm at up to 600 dpi |
| Paper Weight — Straight Path | 27–413 g/m² |
| Paper Weight — U-Turn Path | 27–210 g/m² |
| Card Scanning | Embossed cards up to 1.25 mm thick |
| Paper Protection | Paper protection technology and triple ultrasonic double-feed detection |
| Ultrasonic Paper Jam Detection | Yes |
| Halftone Patterns | Dither and error diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| File Formats | BMP, PNG, GIF, JPEG, single-page PDF, multi-page PDF, Multi-TIFF, TIFF, RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX and HTML; OCR listed for iScan only |
| Interface | USB 3.2 Gen 1×1 |
| Bundled Software and Drivers | TWAIN Driver, ISIS Driver, WIA Driver, Button Manager, PaperPort and AVScan |
| Windows Support | Windows 7, 8, 10 and 11; Windows Server 2008 R2, 2012, 2016, 2019, 2022 and 2025 |
| Linux Support | Fedora, openSUSE, Debian and Ubuntu |
| macOS Support | macOS 10.12 through macOS 14 Sonoma |
| Maximum Dimensions (W × D × H) | 460 × 784 × 362 mm |
| Minimum Dimensions (W × D × H) | 460 × 446 × 362 mm |
| Weight | 22.4 kg |
| Power Consumption | Operation: <73W; ready: <14W; sleep: <2.7W; off: <0.2W |
| Acoustical Noise | Operation: <55 dB; ready: <25 dB |
Avision AD8130z Scanner Price in Pakistan
Contact Tescom Engineering for the latest Avision AD8130z Scanner price in Pakistan, current availability and ordering details.
