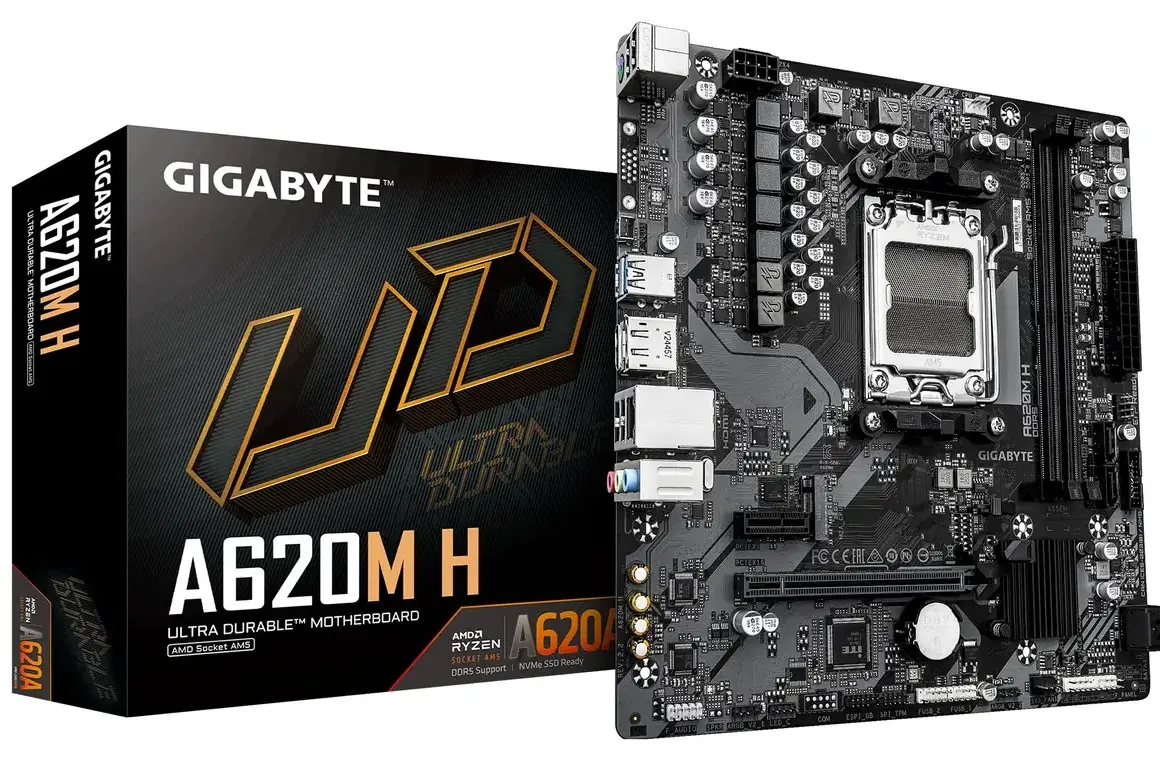

GIGABYTE A620M H Rev. 2.2 AMD AM5 DDR5 Micro ATX Motherboard
- AMD AM5 Socket Supporting Ryzen 7000, 8000 & 9000 Series Processors
- Dual-Channel DDR5 with 2x DIMM Slots, AMD EXPO & Intel XMP Support
- 5+2+2 Phase Digital VRM with PCIe 4.0 x4 M.2 NVMe Storage
- GbE LAN, HDMI + DisplayPort, Smart Fan 6 & Q-Flash Plus
GIGABYTE A620M H Rev. 2.2 AMD AM5 DDR5 Motherboard
AMD A620 Motherboard for Ryzen 7000, 8000 and 9000 Series
The GIGABYTE A620M H Rev. 2.2 is an AMD AM5 Micro ATX motherboard designed for compatible AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors. It combines DDR5 memory support, PCIe 4.0 x4 M.2 storage, digital power delivery and GIGABYTE system management technologies in a compact platform.
With support for AMD EXPO and Intel XMP memory modules, Smart Fan 6 cooling control, GbE LAN and Q-Flash Plus, the A620M H provides the essential features required for modern AMD desktop PC builds.
Product Features
AMD AM5 Socket: Supports compatible AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors based on the AM5 platform.
5+2+2 Phase Digital VRM: The digital VRM solution provides stable power delivery for compatible processors and system components.
DDR5 Memory: Two SMD DDR5 DIMM slots provide dual-channel memory support for modern desktop systems.
AMD EXPO Support: Support for compatible AMD EXPO memory profiles provides convenient memory configuration and performance tuning.
Intel XMP Support: Compatible Intel XMP memory modules are also supported, providing additional flexibility when selecting DDR5 memory.
PCIe 4.0 x4 M.2: A high-speed PCIe 4.0 x4 M.2 connector supports compatible NVMe SSDs for responsive system and storage performance.
PCIe x16 Expansion: The motherboard provides a PCIe x16 expansion slot for compatible graphics cards and other supported expansion devices.
EZ-Latch: GIGABYTE’s EZ-Latch design provides a convenient quick-release mechanism for the PCIe x16 slot.
GbE LAN: Integrated Gigabit Ethernet provides reliable wired network connectivity for internet access, online applications and local networking.
HDMI and DisplayPort: HDMI and DisplayPort provide flexible display connectivity when paired with a compatible processor supporting integrated graphics.
Smart Fan 6: Smart Fan 6 combines multiple temperature sensors, hybrid fan headers and FAN STOP functionality for flexible system cooling management.
Q-Flash Plus: Q-Flash Plus allows supported BIOS updates without requiring the CPU, memory or graphics card to be installed.
Product Specifications
| Brand | GIGABYTE |
| Model | A620M H Rev. 2.2 |
| Chipset | AMD A620 |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 7000 / 8000 / 9000 Series* |
| Power Design | 5+2+2 Phase Digital VRM |
| Memory Type | DDR5 |
| Memory Slots | 2 x SMD DDR5 DIMM |
| Memory Architecture | Dual Channel |
| Memory Profile Support | AMD EXPO / Intel XMP |
| M.2 Storage | PCIe 4.0 x4 M.2 |
| Expansion Slot | PCIe x16 |
| PCIe Slot Feature | EZ-Latch Quick Release |
| LAN | Gigabit Ethernet (GbE) |
| DisplayPort | Yes |
| HDMI | Yes |
| Cooling Management | Smart Fan 6 |
| Temperature Sensors | Multiple Sensors |
| Fan Headers | Hybrid Fan Headers |
| FAN STOP | Supported |
| BIOS Feature | Q-Flash Plus |
| Form Factor | Micro ATX |
| Product Type | Desktop Motherboard |
*Processor compatibility may depend on the installed BIOS version. Confirm the CPU support list and BIOS version before installation.
AMD AM5 Platform
The GIGABYTE A620M H uses the AMD AM5 socket and supports compatible Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors. This makes it suitable for users building a modern AMD desktop system based on DDR5 memory.
Dual-Channel DDR5 Memory
Two SMD DDR5 DIMM slots provide dual-channel memory support. Compatibility with AMD EXPO and Intel XMP profiles gives users additional flexibility when selecting and configuring supported DDR5 memory kits.
5+2+2 Phase Digital VRM
The 5+2+2 phase digital VRM solution is designed to provide stable and efficient power delivery for compatible AMD Ryzen processors and system components.
PCIe 4.0 x4 M.2 Storage
The PCIe 4.0 x4 M.2 connector provides high-bandwidth connectivity for compatible NVMe solid-state drives, helping deliver fast startup times, responsive applications and efficient file access.
PCIe x16 with EZ-Latch
A PCIe x16 slot provides connectivity for compatible dedicated graphics cards. The GIGABYTE EZ-Latch mechanism is designed to make releasing an installed expansion card more convenient during system upgrades or maintenance.
Smart Fan 6 Cooling
GIGABYTE Smart Fan 6 uses multiple temperature sensors and hybrid fan headers to provide flexible cooling management. FAN STOP functionality can stop compatible fans under suitable operating conditions to help reduce system noise.
HDMI and DisplayPort Connectivity
HDMI and DisplayPort provide digital display connectivity for compatible monitors. Availability of motherboard video output depends on the capabilities of the installed AMD processor.
Q-Flash Plus
GIGABYTE Q-Flash Plus allows supported BIOS updates without requiring the processor, memory or graphics card to be installed. This can be useful when preparing the motherboard for a newer supported processor that requires an updated BIOS.
Important Compatibility Information
Before purchasing, confirm compatibility between the motherboard revision, BIOS version and intended AMD Ryzen processor. Ryzen 9000 Series support may require an appropriate BIOS version.
Memory performance depends on the installed processor, DDR5 modules and system configuration. Display output capabilities also depend on the graphics functionality supported by the installed processor.
