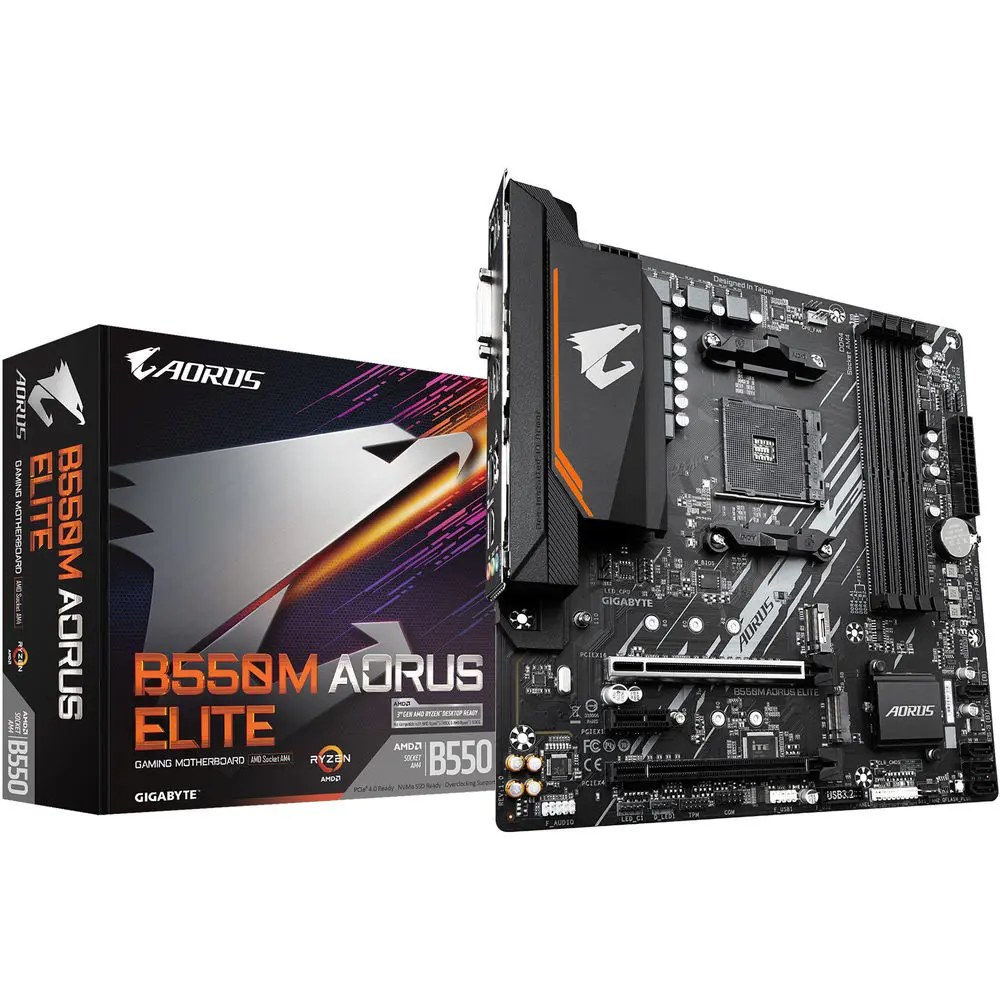

GIGABYTE B550M AORUS ELITE AMD B550 AM4 DDR4 Motherboard

AMD B550 Motherboard for Ryzen Gaming and Productivity Builds

The GIGABYTE B550M AORUS ELITE is a Micro ATX motherboard based on the AMD B550 chipset and AM4 socket. Designed for compatible AMD Ryzen 3000 Series, Ryzen 4000G Series and Ryzen 5000 Series processors, it combines PCIe 4.0 connectivity, high-speed DDR4 memory, dual M.2 storage and GIGABYTE technologies for gaming, productivity and everyday desktop PC builds.

With four DDR4 DIMM slots supporting up to 128GB memory, PCIe 4.0 x16 expansion, dual M.2 slots, RGB Fusion 2.0 lighting and Smart Fan 5 cooling management, the B550M AORUS ELITE provides a balanced platform for performance-focused AMD systems.

Product Features

AMD AM4 Platform: Supports compatible AMD Ryzen 3000, Ryzen 4000G and Ryzen 5000 Series processors using the AM4 socket.

AMD B550 Chipset: The B550 chipset provides a modern AMD platform with PCIe 4.0 capability for supported processors and devices.

Four DDR4 DIMM Slots: Four DDR4 memory slots support up to 128GB of system memory, providing flexibility for gaming, productivity, content creation and multitasking.

Up to DDR4-4733MHz (OC): Supports high-speed DDR4 memory configurations up to 4733MHz through compatible overclocked settings.

PCIe 4.0 x16: A PCIe 4.0 x16 expansion slot provides high-bandwidth connectivity for compatible graphics cards.

Dual M.2 Storage: Two M.2 slots provide high-speed solid-state storage expansion, including PCIe 4.0 capability where supported by the processor and slot configuration.

Four SATA 6Gb/s Ports: Four SATA connectors allow additional SSDs and hard drives to be installed for expanded system storage.

HDMI and DVI-D: Integrated HDMI and DVI-D interfaces provide display connectivity when used with a compatible AMD processor featuring integrated graphics.

Realtek Gigabit LAN: Integrated Gigabit Ethernet provides reliable wired networking for gaming, internet access and local network transfers.

7.1-Channel HD Audio: Integrated Realtek HD Audio provides multi-channel sound support for compatible audio equipment.

Smart Fan 5: GIGABYTE Smart Fan 5 with hybrid fan headers provides flexible cooling control for compatible system fans.

RGB Fusion 2.0: RGB Fusion 2.0 and addressable RGB connectivity provide lighting customization for compatible components and LED devices.

Q-Flash Plus: Q-Flash Plus enables supported BIOS updates without requiring the processor, memory or graphics card to be installed.

Product Specifications

*Processor compatibility, PCIe generation and supported memory speeds depend on the installed processor, BIOS version, memory modules and system configuration.

Four DDR4 Slots with Up to 128GB Memory

The GIGABYTE B550M AORUS ELITE features four DDR4 DIMM slots supporting up to 128GB of system memory. Support for high-speed DDR4 configurations up to 4733MHz (OC) provides flexibility for gaming, content creation and memory-intensive workloads.

PCIe 4.0 Graphics Expansion

PCIe 4.0 x16 connectivity provides high-bandwidth expansion for compatible graphics cards when paired with a supported AMD Ryzen processor. This makes the motherboard suitable for gaming and GPU-accelerated productivity systems.

Dual M.2 SSD Storage

Dual M.2 slots provide flexible high-speed storage options for compatible SSDs. Users can combine M.2 storage with four SATA 6Gb/s ports to create a system with both high-performance primary storage and additional capacity.

Smart Fan 5 Cooling Management

GIGABYTE Smart Fan 5 provides flexible cooling management through compatible hybrid fan headers. This helps users configure system cooling according to processor, graphics card and overall system requirements.

RGB Fusion 2.0 Lighting

RGB Fusion 2.0 provides lighting customization for compatible RGB and addressable RGB components, allowing lighting effects to be coordinated across a supported gaming PC setup.

Realtek Gigabit LAN and HD Audio

Integrated Realtek Gigabit LAN provides wired network connectivity, while Realtek 7.1-channel HD Audio delivers onboard multi-channel sound support for compatible speakers and audio devices.

Q-Flash Plus BIOS Update

GIGABYTE Q-Flash Plus allows supported BIOS updates without requiring a processor, memory or graphics card to be installed. This feature can be useful when preparing the motherboard for a supported processor requiring a newer BIOS version.

Compact Micro ATX Design

Measuring approximately 24.4 x 24.4 cm, the Micro ATX design provides a balance between compact dimensions and expansion capability. It can be used in compatible Micro ATX and larger desktop PC cases.

Important Compatibility Information

Before purchasing, confirm processor compatibility with the motherboard revision and installed BIOS version. Compatibility may differ between AMD Ryzen processor families.

PCIe 4.0 availability and memory speeds depend on the installed processor and system configuration. HDMI and DVI-D motherboard display outputs require a compatible AMD processor with integrated graphics.
