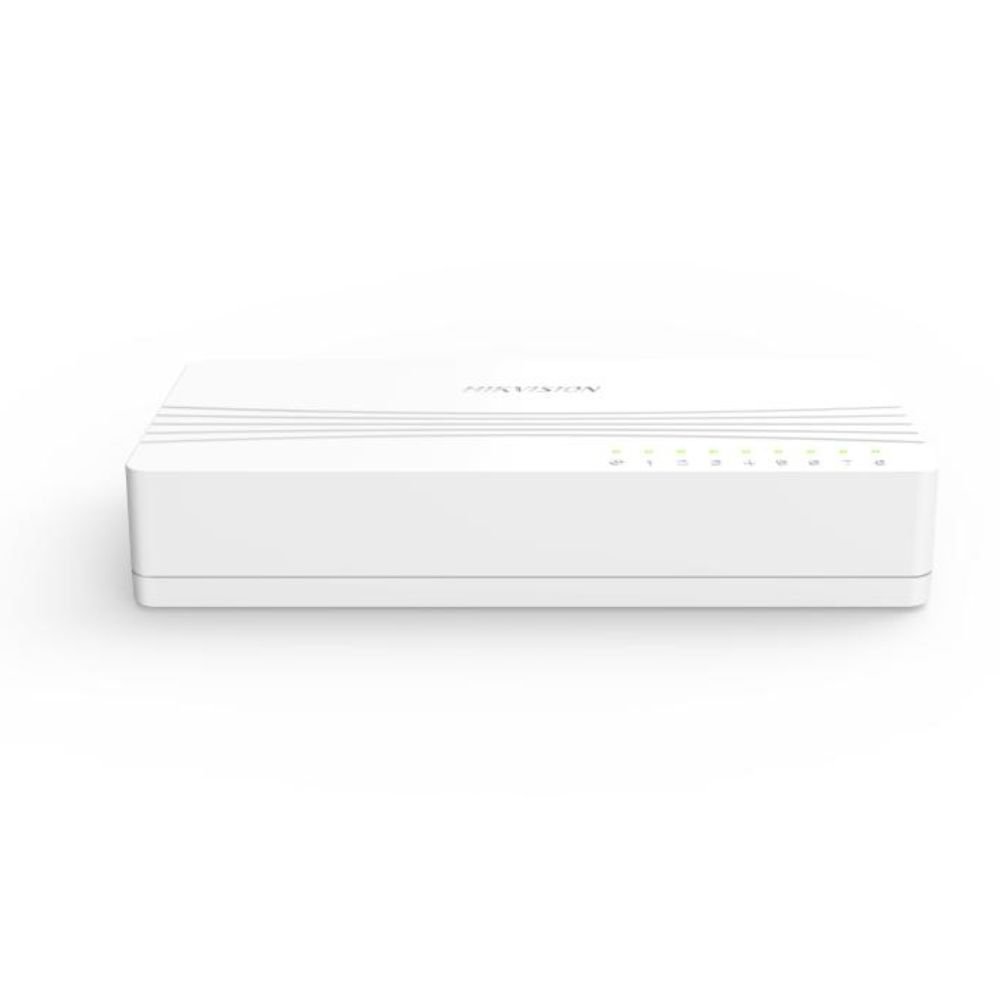

Hikvision DS-3E0108D 8-Port Fast Ethernet Desktop Switch
- 8 × 10/100Mbps Fast Ethernet RJ45 Ports
- 1.6Gbps Switching Capacity & 1.19Mpps Forwarding Rate
- Auto MDI/MDIX with MAC Address Auto-Learning & Aging
- Plug & Play Compact Desktop or Wall-Mount Design
Hikvision DS-3E0108D 8-Port Fast Ethernet Desktop Switch
Product Features
8-Port Fast Ethernet Connectivity: The Hikvision DS-3E0108D is a compact Fast Ethernet network switch equipped with eight 10/100Mbps RJ45 ports. It provides a straightforward solution for expanding wired connectivity in homes, offices, small businesses, and compatible surveillance networks.
1.6Gbps Switching Capacity: With a total switching capacity of 1.6Gbps, the DS-3E0108D efficiently handles data communication between connected Ethernet devices in everyday network environments.
1.19Mpps Packet Forwarding: A packet forwarding rate of up to 1.19Mpps supports reliable traffic handling across the switch’s eight Ethernet ports.
Auto MDI/MDIX Support: MDI/MDIX functionality automatically adapts Ethernet connections, simplifying installation when connecting compatible computers, routers, network recorders, printers, and other network devices.
Store-and-Forward Switching: Store-and-forward technology processes network frames before transmitting them to the destination port, helping provide stable and reliable network communication.
MAC Address Auto-Learning: The switch automatically learns the MAC addresses of connected devices, allowing Ethernet traffic to be directed efficiently to the appropriate ports.
Automatic MAC Address Aging: MAC address aging automatically updates the forwarding table as devices are connected, disconnected, or changed within the network.
2K MAC Address Table: Support for a 2K MAC address table provides sufficient addressing capacity for typical home, office, and small network installations.
768Kbit Internal Cache: The integrated 768Kbit internal cache assists with efficient packet handling during regular network traffic.
Plug-and-Play Installation: The DS-3E0108D is designed for simple operation without complicated setup. Connect the Ethernet devices, supply power to the switch, and it is ready for basic network expansion.
Compact ABS Construction: The lightweight ABS plastic enclosure measures 124 × 22 × 52mm, making it easy to install in environments where desktop or equipment space is limited.
Desktop and Wall-Mount Installation: The compact design supports both desktop placement and wall-mounted installation, providing flexibility for different network layouts.
Low Power Consumption: Maximum power consumption is rated at only 3W, supporting energy-efficient continuous operation in everyday networking environments.
2kV Surge Protection: The switch includes 2kV surge protection to provide additional electrical protection under supported operating conditions.
Suitable for Basic Network Expansion: The DS-3E0108D can be used to connect compatible PCs, network printers, routers, DVRs, NVRs, surveillance equipment, and other Ethernet-enabled devices requiring 10/100Mbps connectivity.
Technical Specifications
| Brand | Hikvision |
| Model | DS-3E0108D |
| Product Type | Fast Ethernet Desktop Switch |
| Ethernet Ports | 8 × 10/100Mbps RJ45 |
| Auto MDI/MDIX | Supported |
| Switching Method | Store-and-Forward |
| Switching Capacity | 1.6Gbps |
| Packet Forwarding Rate | 1.19Mpps |
| MAC Address Table | 2K |
| MAC Address Auto-Learning | Supported |
| MAC Address Aging | Supported |
| Internal Cache | 768Kbits |
| Housing Material | ABS Plastic |
| Installation | Desktop / Wall Mount |
| Power Supply | 5V DC, 0.6A |
| Maximum Power Consumption | 3W |
| Surge Protection | 2kV |
| Dimensions | 124 × 22 × 52mm |
| Net Weight | 0.059kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, Non-Condensing |
| Compliance | CE-EMC, IC, CB, CE-LVD, CE-RoHS, WEEE & REACH |
Ideal For
- Home Networks
- Small Office Networks
- Basic LAN Expansion
- Desktop Computers
- Network Printers
- DVR & NVR Connectivity
- Compatible CCTV Networks
- Small Business Networks
Frequently Asked Questions
How many Ethernet ports does the Hikvision DS-3E0108D have?
The DS-3E0108D provides eight 10/100Mbps RJ45 Fast Ethernet ports.
Is the Hikvision DS-3E0108D a Gigabit switch?
No. The individual RJ45 ports operate at 10/100Mbps Fast Ethernet speeds. The specified 1.6Gbps figure represents the switch’s overall switching capacity.
What is the switching capacity of the DS-3E0108D?
The switch provides a total switching capacity of 1.6Gbps.
What is the packet forwarding rate?
The Hikvision DS-3E0108D has a specified packet forwarding rate of up to 1.19Mpps.
Does the DS-3E0108D support Auto MDI/MDIX?
Yes. MDI/MDIX is supported to simplify Ethernet device connections.
Does it support MAC address auto-learning?
Yes. The switch supports MAC address auto-learning and aging with a 2K MAC address table.
Does the Hikvision DS-3E0108D require configuration?
No. It is designed for plug-and-play operation, making it suitable for straightforward wired network expansion.
Can the DS-3E0108D be wall-mounted?
Yes. The switch supports both desktop and wall-mount installation.
Does the DS-3E0108D provide PoE?
No PoE capability is specified for this model. It is designed for standard 10/100Mbps Fast Ethernet connectivity.
What is the maximum power consumption?
The maximum specified power consumption is 3W.
Does the switch have surge protection?
Yes. The DS-3E0108D provides 2kV surge protection.
