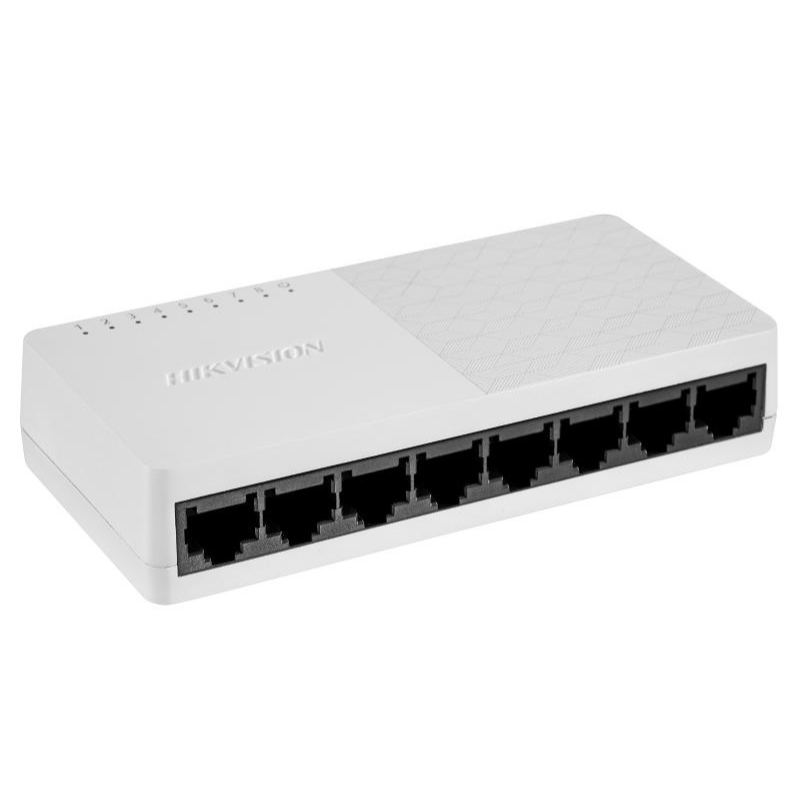

Hikvision DS-3E0508D-O 8-Port Gigabit Ethernet Desktop Switch
- 8 × 10/100/1000Mbps Gigabit Ethernet RJ45 Ports
- 16Gbps Switching Capacity & 11.90Mpps Forwarding Rate
- Auto MDI/MDIX with MAC Address Auto-Learning & Aging
- Plug & Play Compact Desktop or Wall-Mount Design
Hikvision DS-3E0508D-O 8-Port Gigabit Ethernet Desktop Switch
Product Features
8-Port Gigabit Ethernet Connectivity: The Hikvision DS-3E0508D-O is a compact Gigabit Ethernet switch equipped with eight 10/100/1000Mbps RJ45 ports. It provides an easy way to expand wired network connectivity for homes, offices, small businesses, and compatible surveillance installations.
Gigabit Network Performance: Each Ethernet port supports 10/100/1000Mbps connectivity, providing significantly higher wired bandwidth than standard Fast Ethernet switches when used with compatible Gigabit network devices.
16Gbps Switching Capacity: With a total switching capacity of 16Gbps, the DS-3E0508D-O is designed to efficiently handle simultaneous data communication across its eight Gigabit Ethernet ports.
11.90Mpps Packet Forwarding Rate: The switch provides a packet forwarding rate of up to 11.90Mpps, supporting efficient traffic handling across connected network devices.
Auto MDI/MDIX Support: MDI/MDIX functionality automatically adapts Ethernet connections, simplifying cabling when connecting compatible computers, routers, network storage, NVRs, access points, and other network equipment.
Store-and-Forward Switching: Store-and-forward switching technology processes network frames before forwarding them to their destination, helping maintain reliable data transmission across the network.
MAC Address Auto-Learning: The DS-3E0508D-O automatically learns the MAC addresses of connected network devices and directs Ethernet traffic to the appropriate ports.
MAC Address Aging: Automatic MAC address aging helps maintain an updated forwarding table when devices are added, removed, or changed within the network.
4K MAC Address Table: The switch supports a 4K MAC address table, providing sufficient addressing capacity for typical home, office, and small-business network environments.
1.5Mbit Internal Cache: An integrated 1.5Mbit internal cache supports efficient packet processing and network traffic management during everyday operation.
Plug-and-Play Operation: The DS-3E0508D-O provides straightforward plug-and-play installation. No complicated network configuration is required for basic operation.
Compact ABS Enclosure: The switch uses a lightweight ABS plastic housing with dimensions of 124 × 25 × 61mm, allowing it to fit conveniently into compact workspaces and network installations.
Desktop and Wall-Mount Installation: Its compact body supports both desktop placement and wall-mounted installation, providing flexibility when organizing network equipment.
Low Power Consumption: With maximum power consumption rated at 5W, the DS-3E0508D-O provides Gigabit network expansion while maintaining efficient power usage.
2kV Surge Protection: Integrated 2kV surge protection provides an additional level of electrical protection for the switch under supported operating conditions.
Suitable for Multiple Network Devices: The eight Gigabit ports can be used to connect compatible desktop computers, network printers, NAS storage, routers, access points, NVRs, surveillance equipment, and other Ethernet-enabled devices.
Technical Specifications
| Brand | Hikvision |
| Model | DS-3E0508D-O |
| Product Type | Gigabit Ethernet Desktop Switch |
| Ethernet Ports | 8 × 10/100/1000Mbps Gigabit RJ45 |
| Auto MDI/MDIX | Supported |
| Switching Method | Store-and-Forward |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.90Mpps |
| MAC Address Table | 4K |
| MAC Address Auto-Learning | Supported |
| MAC Address Aging | Supported |
| Internal Cache | 1.5Mbits |
| Housing Material | ABS Plastic |
| Installation | Desktop / Wall Mount |
| Power Supply | 5V DC, 1A |
| Maximum Power Consumption | 5W |
| Surge Protection | 2kV |
| Dimensions | 124 × 25 × 61mm |
| Net Weight | 0.093kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, Non-Condensing |
| EMC Approvals | CE-EMC, IC & RCM |
| Safety Approvals | CB & CE-LVD |
| Environmental Compliance | CE-RoHS, WEEE & REACH |
Ideal For
- Home Gigabit Networks
- Small & Medium Offices
- Gigabit LAN Expansion
- Desktop Computers
- Network Printers
- NAS Storage Devices
- DVR & NVR Networks
- Compatible CCTV Installations
- Routers & Access Points
Frequently Asked Questions
How many Ethernet ports does the Hikvision DS-3E0508D-O have?
The switch provides eight Gigabit RJ45 Ethernet ports.
Does the DS-3E0508D-O support Gigabit Ethernet?
Yes. All eight RJ45 ports support 10/100/1000Mbps Ethernet connectivity.
What is the switching capacity of the DS-3E0508D-O?
The switch provides a total switching capacity of 16Gbps.
What is its packet forwarding rate?
The Hikvision DS-3E0508D-O provides a packet forwarding rate of up to 11.90Mpps.
Does the DS-3E0508D-O support Auto MDI/MDIX?
Yes. MDI/MDIX is supported to simplify Ethernet cable connections between compatible network devices.
Does the switch support MAC address auto-learning?
Yes. It supports MAC address auto-learning and aging with a 4K MAC address table.
Does the Hikvision DS-3E0508D-O require configuration?
No. It is designed for plug-and-play operation, allowing straightforward wired network expansion without complicated configuration.
Can the DS-3E0508D-O be wall-mounted?
Yes. It supports both desktop and wall-mounted installation.
Does the DS-3E0508D-O provide PoE?
No PoE functionality is specified for this model. It provides standard 10/100/1000Mbps Gigabit Ethernet connectivity.
Can I use this switch with a NAS or NVR?
Yes. Compatible NAS devices, NVRs, computers, routers, and other Gigabit Ethernet equipment can be connected through its RJ45 ports.
What is the maximum power consumption?
The maximum specified power consumption is 5W.
