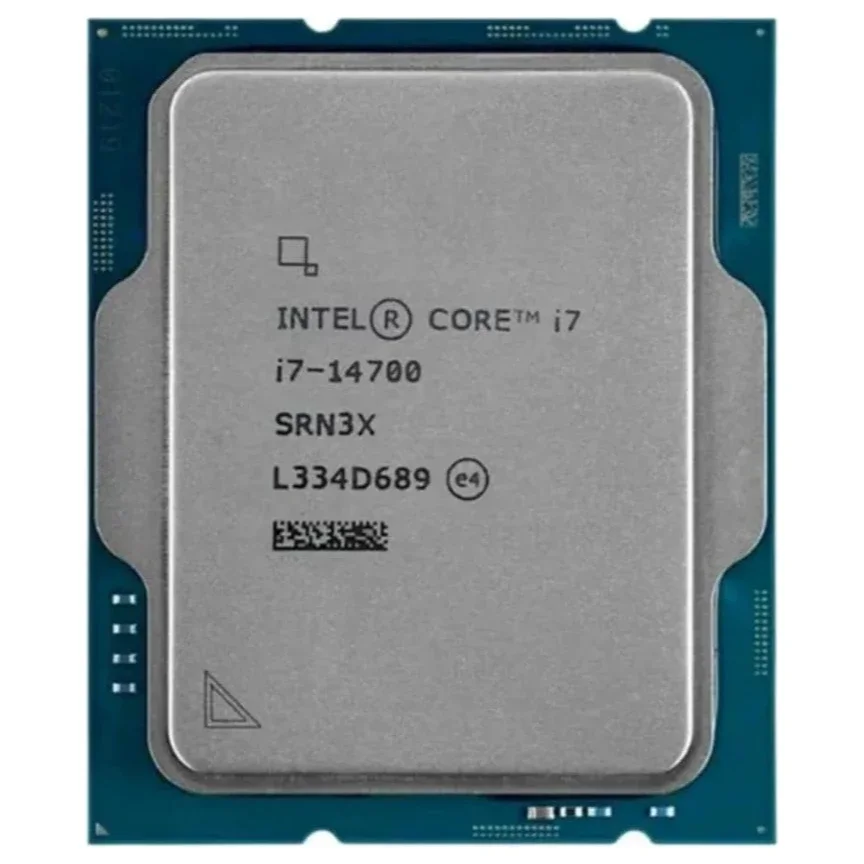

Intel Core i7-14700 14th Gen 20-Core 28-Thread LGA1700 Desktop Processor
- 14th Gen Intel Core i7 Processor with 20 Cores & 28 Threads
- Up to 5.40GHz Max Turbo Frequency with 33MB Intel Smart Cache
- Supports DDR5-5600 & DDR4-3200 Memory with PCIe 5.0 / 4.0
- Integrated Intel UHD Graphics 770 with LGA1700 Socket
Intel Core i7-14700 14th Gen Desktop Processor
14th Generation Intel Core i7 Processor for High-Performance Desktop PCs
The Intel Core i7-14700 is a 14th Generation desktop processor based on Intel’s Raptor Lake architecture. It combines 8 Performance-cores and 12 Efficient-cores for a total of 20 cores and 28 threads, delivering strong performance for gaming, content creation, productivity, streaming and professional workloads.
With a maximum turbo frequency of up to 5.40GHz, 33MB Intel Smart Cache, support for DDR5 and DDR4 memory, PCIe 5.0 connectivity and integrated Intel UHD Graphics 770, the Core i7-14700 provides a powerful platform for modern LGA1700 desktop systems.
Product Features
20-Core Hybrid Architecture: Combines 8 Performance-cores and 12 Efficient-cores for a total of 20 physical cores.
28 Processing Threads: Intel Hyper-Threading support provides a total of 28 threads for demanding multitasking and multi-threaded applications.
Up to 5.40GHz Turbo: Intel Turbo Boost Max Technology 3.0 allows selected cores to reach up to 5.40GHz when thermal and power conditions permit.
Performance-Core Speeds: Performance-cores operate at a base frequency of 2.10GHz and can boost up to 5.30GHz.
Efficient-Core Speeds: Efficient-cores operate at a base frequency of 1.50GHz and can boost up to 4.20GHz.
33MB Intel Smart Cache: A large shared cache helps improve data access and responsiveness across gaming, productivity and professional applications.
28MB L2 Cache: Additional L2 cache contributes to efficient workload processing and strong multi-core performance.
DDR5 & DDR4 Support: Supports up to DDR5-5600 and DDR4-3200 memory, giving users flexibility when selecting a compatible LGA1700 motherboard.
Dual-Channel Memory: Supports two memory channels with maximum memory bandwidth up to 89.6GB/s.
Up to 192GB Memory: Supports memory capacities up to 192GB depending on motherboard, BIOS and installed memory configuration.
ECC Memory Support: ECC memory is supported when used with a compatible motherboard platform and supported memory configuration.
PCIe 5.0 & 4.0: Supports PCI Express 5.0 and PCIe 4.0 with up to 20 processor PCIe lanes for compatible graphics cards and high-speed storage devices.
Intel UHD Graphics 770: Integrated graphics provide display functionality without requiring a dedicated graphics card for supported workloads.
Intel Quick Sync Video: Hardware-accelerated media processing can improve supported video encoding, transcoding and streaming workloads.
Intel Thread Director: Helps supported operating systems assign workloads efficiently between Performance-cores and Efficient-cores.
65W Processor Base Power: The processor has a 65W base power rating and can reach up to 219W maximum turbo power.
LGA1700 Socket: Designed for compatible Intel 600-series and 700-series motherboards with suitable chipset and BIOS support.
Product Specifications
| Brand | Intel |
| Series | Intel Core i7 |
| Model | Core i7-14700 |
| Generation | 14th Generation |
| Code Name | Raptor Lake |
| Segment | Desktop |
| Socket | FCLGA1700 |
| Lithography | Intel 7 |
| Total Cores | 20 |
| Performance Cores | 8 |
| Efficient Cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | Up to 5.40GHz |
| Turbo Boost Max 3.0 Frequency | 5.40GHz |
| P-Core Max Turbo | 5.30GHz |
| E-Core Max Turbo | 4.20GHz |
| P-Core Base Frequency | 2.10GHz |
| E-Core Base Frequency | 1.50GHz |
| Intel Smart Cache | 33MB |
| Total L2 Cache | 28MB |
| Processor Base Power | 65W |
| Maximum Turbo Power | 219W |
| Maximum Memory | Up to 192GB* |
| Memory Support | DDR5-5600 / DDR4-3200 |
| Memory Channels | 2 |
| Maximum Memory Bandwidth | 89.6GB/s |
| ECC Memory | Supported* |
| Integrated Graphics | Intel UHD Graphics 770 |
| Graphics Base Frequency | 300MHz |
| Graphics Max Dynamic Frequency | 1.60GHz |
| Graphics Execution Units | 32 |
| Maximum Displays | Up to 4 |
| PCI Express | PCIe 5.0 / PCIe 4.0 |
| Maximum PCIe Lanes | 20 |
| DMI Revision | 4.0 |
| Maximum DMI Lanes | 8 |
| TJUNCTION | 100°C |
| Maximum Operating Temperature | 100°C |
| Intel Thread Director | Yes |
| Intel Turbo Boost Max 3.0 | Yes |
| Intel Turbo Boost Technology | 2.0 |
| Intel Hyper-Threading | Yes |
| Intel Quick Sync Video | Yes |
| Intel Virtualization | VT-x / VT-d Supported |
| Instruction Set | 64-bit |
*Maximum memory capacity, ECC support and available features depend on the motherboard chipset, BIOS version and system configuration.
20 Cores and 28 Threads
The Intel Core i7-14700 combines eight Performance-cores and twelve Efficient-cores for a total of 20 cores and 28 threads. The increased Efficient-core count provides substantial multi-threaded capability for content creation, rendering, streaming, productivity and other demanding workloads.
Up to 5.40GHz Turbo Performance
Intel Turbo Boost Max Technology 3.0 allows selected cores to reach up to 5.40GHz when operating conditions permit, helping provide responsive performance in games and applications that benefit from high single-core frequency.
DDR5-5600 and DDR4-3200 Support
The processor supports both DDR5-5600 and DDR4-3200 memory, allowing users to select between newer high-bandwidth DDR5 systems and compatible DDR4 motherboard configurations.
Intel UHD Graphics 770
Integrated Intel UHD Graphics 770 provides display output without requiring a dedicated graphics card. It supports Intel Quick Sync Video and can drive up to four displays depending on motherboard connectivity and system configuration.
PCIe 5.0 Connectivity
Support for PCI Express 5.0 and PCIe 4.0 provides modern high-bandwidth connectivity for compatible graphics cards and storage devices. The processor supports up to 20 PCIe lanes.
65W Base Power with High Turbo Capability
The Core i7-14700 has a 65W processor base power but can reach up to 219W maximum turbo power. A suitable motherboard VRM and capable CPU cooling solution are recommended for sustained high-performance workloads.
Important Compatibility Information
The Intel Core i7-14700 requires a compatible LGA1700 motherboard. Intel 600-series and 700-series motherboards may require an appropriate BIOS version to support 14th Generation processors.
Memory speed, ECC functionality, integrated graphics outputs and PCIe configuration depend on the selected motherboard and overall system configuration.
