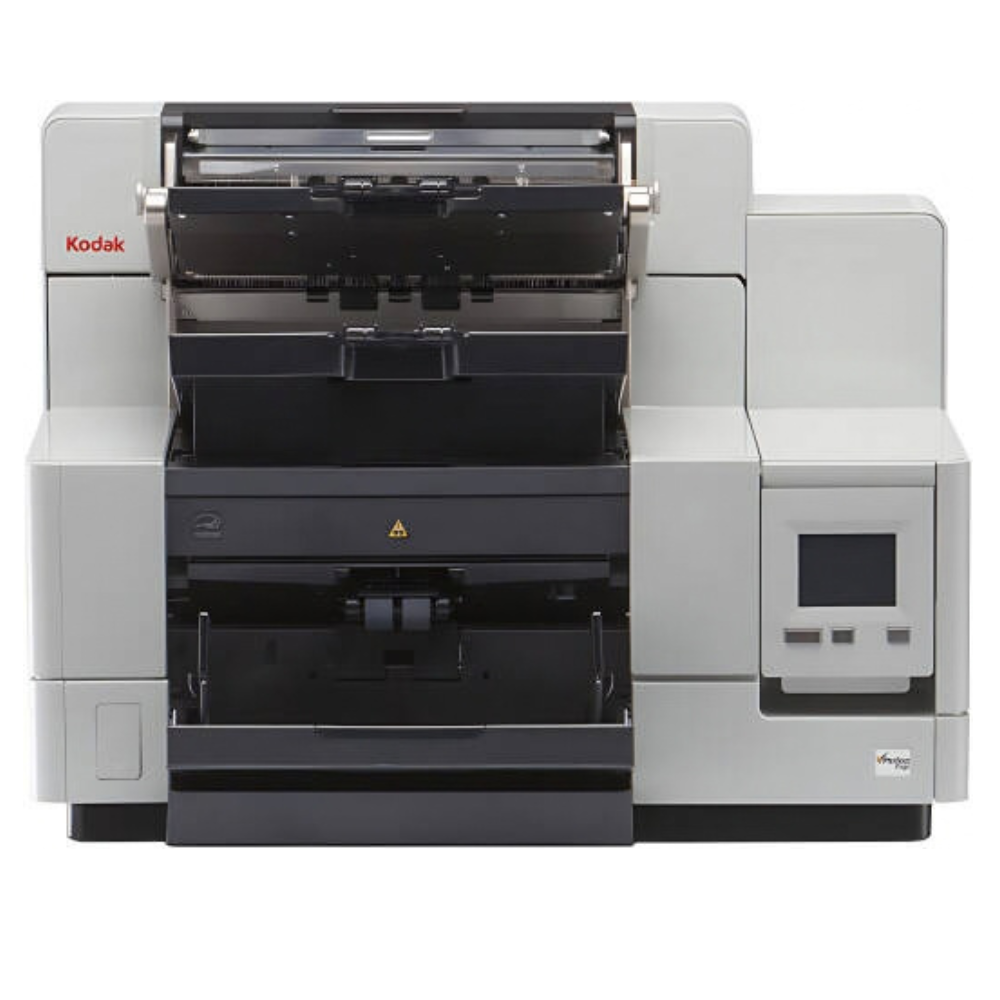

KODAK i5650 A3 Production Scanner 180ppm 360ipm 750-Sheet ADF USB 3.2
- 180ppm / 360ipm High-Speed Duplex Scanning with Unlimited Daily Duty Cycle
- 750-Sheet ADF with SurePath Intelligent Document Feed Technology
- Dynamic Flow Technology for Efficient Image Processing and Data Extraction
- 600dpi Optical Resolution, USB 3.2 Connectivity and Optional Pre/Post Imprinting
KODAK i5650 A3 Production Scanner 180ppm 360ipm 750-Sheet ADF USB 3.2
Product Features
The KODAK i5650 is a high-speed A3 production document scanner designed for demanding scanning environments that require continuous operation, dependable document handling and efficient image processing. It is suitable for centralized scanning departments, government organizations, financial institutions and document-processing service providers.
The scanner delivers throughput speeds of up to 180 pages per minute and 360 images per minute. Its unlimited recommended daily volume supports continuous scanning workflows where large quantities of documents must be processed regularly.
A 750-sheet automatic document feeder reduces the need for frequent paper loading during large scanning jobs. It supports documents ranging from 63.5 × 63.5 mm up to 305 mm wide and 4.6 metres long.
The KODAK i5650 can process paper weights from 45 to 200 g/m². Documents can exit through the front output tray or the rear of the scanner when the straight-through paper path is manually selected.
SurePath intelligent document feed technology includes controlled stacking, enhanced jam recovery, Intelligent Document Protection, interactive multifeed handling, length-based multifeed detection, metal detection and ultrasonic multifeed technology.
Operator overrides and the interactive control panel help users manage document exceptions without unnecessarily interrupting an entire scanning batch. Metal detection can identify staples and other metallic objects that may damage documents or the scanner.
Dynamic Flow Technology optimizes memory allocation and processing paths for scanning, image-processing and data-extraction operations. This helps maintain efficient performance during demanding production-scanning workflows.
The scanner uses dual white LED illumination with CCD scanning technology. It provides a maximum optical and output resolution of 600dpi, with 256-level 8-bit grayscale output, 24-bit colour output and 48-bit colour capture.
A 3.5-inch graphical colour touchscreen LCD with operator control buttons provides access to scanner functions and job settings. Optional pre-scan and post-scan imprinting can be added for workflows requiring document tracking or reference information to be printed.
Connectivity is provided through USB 2.0 and USB 3.2 Gen 1×1 compatibility. Standard support includes TWAIN, ISIS and WIA drivers, along with KOFAX certification for compatible document-capture applications.
The scanner supports barcode recognition for common one-dimensional and two-dimensional barcode types. Optional KODAK Capture Pro Software and Info Input Solution are available for organizations requiring expanded document capture, indexing and information-processing capabilities.
Technical Specifications
| Brand | KODAK |
| Model | i5650 |
| Product Type | High-Speed A3 Production Document Scanner |
| Scanning Speed | Up to 180 ppm / 360 ipm |
| Recommended Daily Volume | Unlimited |
| Feeder Capacity | Up to 750 Sheets of 80 g/m² Paper |
| Maximum Document Size | 305 mm × 4.6 m (12 × 180 Inches) |
| Minimum Document Size | 63.5 × 63.5 mm (2.5 × 2.5 Inches) |
| Supported Paper Weight | 45–200 g/m² (12–110 lb.) |
| Paper Path Options | Front Output Tray or Manually Selected Rear Straight-Through Path |
| Feed Technology | SurePath Intelligent Document Feed Technology |
| Processing Technology | Dynamic Flow Technology |
| Stacking | Controlled Stacking |
| Jam Recovery | Enhanced Jam Recovery |
| Document Protection | Intelligent Document Protection |
| Multifeed Detection | Interactive, Length and Ultrasonic Multifeed Detection |
| Metal Detection | Metal and Staple Detection |
| Imprinting | Optional Pre-Scan and Post-Scan Imprinting |
| Maximum Optical Resolution | 600 dpi |
| Maximum Image Output Resolution | Up to 600 dpi |
| Scanning Technology | Dual White LED Illumination CCD |
| Grayscale Output | 256 Levels, 8-Bit |
| Colour Output | 24-Bit Colour Output |
| Colour Capture | 48-Bit Colour Capture |
| Connectivity | USB 2.0 and USB 3.2 Gen 1×1 Compatible |
| Operator Control Panel | 3.5-Inch Graphical Colour Touchscreen LCD with Control Buttons |
| Standard Drivers | TWAIN, ISIS and WIA |
| Certification | KOFAX Certified |
| Optional Software | KODAK Capture Pro Software and Info Input Solution |
| Supported File Formats | BMP, JPEG and Single-Page TIFF |
| Supported Barcodes | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A and UPC-E |
| Data Security | Volatile Memory Processing Erases Image Data After Shutdown |
| Height | 43.4 cm (17.1 Inches) |
| Width | 69.3 cm (27.3 Inches) |
| Depth with Tray Closed | 51 cm (20.1 Inches) |
| Depth with Tray Open | 65.3 cm (25.7 Inches) |
| Weight | 57.6 kg (127 lb.) |
| Electrical Requirements | 100–240 V, 50–60 Hz |
| Running Power Consumption | Less Than 215 Watts |
| Sleep Power Consumption | Less Than 3.5 Watts |
| Standby Power Consumption | Less Than 0.5 Watts |
| Operating Temperature | 15–35°C (59–95°F) |
| Operating Humidity | 15%–80% RH |
| Environmental Certifications | ENERGY STAR, EPEAT Silver and 2008 EuP |
Frequently Asked Questions (FAQs)
What is the scanning speed of the KODAK i5650?
The KODAK i5650 scans at speeds of up to 180 pages per minute and 360 images per minute.
What is the feeder capacity of the KODAK i5650?
The scanner has a 750-sheet automatic document feeder based on 80 g/m² paper.
What is the recommended daily scanning volume?
The KODAK i5650 has an unlimited recommended daily volume, making it suitable for continuous high-volume document scanning.
What is Dynamic Flow Technology?
Dynamic Flow Technology optimizes memory allocation and processing paths when scanning documents, performing imaging functions and extracting data.
Does the KODAK i5650 support thick or long documents?
It supports paper weights from 45 to 200 g/m² and documents measuring up to 305 mm wide and 4.6 metres long. A manually selected rear straight-through path is also available.
What document-protection features are included?
The scanner includes Intelligent Document Protection, enhanced jam recovery, ultrasonic and length-based multifeed detection, interactive multifeed handling and metal detection.
Does the KODAK i5650 support document imprinting?
Yes. Optional pre-scan and post-scan imprinting are available for workflows requiring document tracking or reference information.
Which connectivity and driver options are supported?
The scanner supports USB 2.0 and USB 3.2 Gen 1×1 connectivity. Standard driver support includes TWAIN, ISIS and WIA, and the scanner is KOFAX certified.
