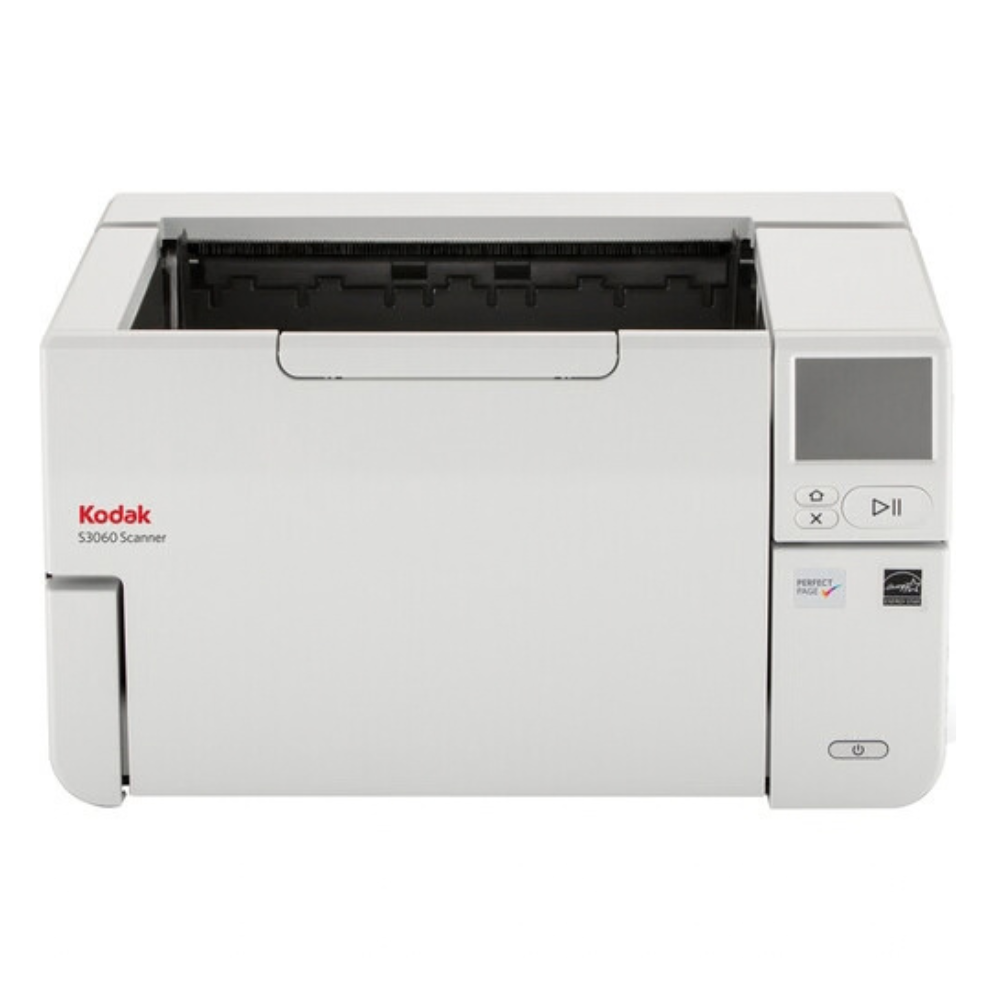

KODAK S3060 A3 Document Scanner 60ppm 120ipm 300-Sheet ADF USB 3.2 Ethernet
- 60ppm / 120ipm High-Speed Duplex Scanning with Up to 25,000 Pages Daily Volume
- 300-Sheet ADF with SurePath Intelligent Document Feed Technology
- USB 3.2 and Gigabit Ethernet Connectivity for Local and Network Scanning
- 600dpi Optical Resolution with Dual Light Illumination and FADGI 2023 Compliance
KODAK S3060 A3 Document Scanner 60ppm 120ipm 300-Sheet ADF USB 3.2 Ethernet
Product Features
The KODAK S3060 is a compact A3 document scanner designed for high-volume business, government, archival and document-management environments. It combines high-speed duplex scanning with intelligent document feeding, flexible paper-path options and wired network connectivity.
The scanner delivers throughput speeds of up to 60 pages per minute and 120 images per minute. With a recommended daily volume of up to 25,000 pages, it is designed to support demanding departmental and centralized document-capture workflows.
A 300-sheet automatic document feeder allows large document batches to be processed with fewer interruptions. The scanner supports paper weights ranging from 27 to 433 g/m², enabling it to handle lightweight sheets, standard office documents and thicker media.
The maximum supported document size is 305 mm × 4.06 m, while continuous cropping mode enables documents of unlimited length to be scanned. Documents can exit through the front output tray or the manually selected rear straight-through paper path.
The rear straight-through path is suitable for thick, delicate or exceptionally long documents that require a flatter paper route. This paper-path flexibility makes the KODAK S3060 suitable for mixed-document scanning environments.
SurePath intelligent document feed technology includes controlled stacking, enhanced jam recovery, Intelligent Document Protection, length-based multifeed detection and ultrasonic multifeed technology. These features help protect original documents and reduce interruptions during batch scanning.
Dual Light Illumination and dual RGB LED CIS scanning technology support consistent image capture. The scanner provides a maximum optical resolution of 600dpi and image output resolutions of up to 1200dpi, with 8-bit grayscale, 24-bit colour output and 48-bit colour capture.
The KODAK S3060 complies with the FADGI 2023 Modern Textual Records standard for unbound documents. This makes it suitable for compatible digitization and archival workflows requiring defined image-quality standards.
Connectivity options include USB 2.0, USB 3.2 Gen 1×1 and 10/100/1000 Ethernet. Support for DHCP, static IP and TCP/IP allows the scanner to be integrated into compatible wired network environments.
A 3.5-inch graphical colour touchscreen LCD provides direct access to scanning functions and operator controls. The scanner also supports common output formats including BMP, JPEG, PDF, PNG, TIFF, searchable PDF, Microsoft Word, Excel and RTF.
Bundled software includes KODAK Capture Pro Limited Edition and Smart Touch. Optional KODAK Capture Pro and Info Input Solution software can be added for expanded capture, indexing and document-processing requirements.
Technical Specifications
| Brand | KODAK |
| Model | S3060 |
| Product Type | Compact A3 Document Scanner |
| Scanning Speed | Up to 60 ppm / 120 ipm |
| Recommended Daily Volume | Up to 25,000 Pages per Day |
| Feeder Capacity | Up to 300 Sheets of 80 g/m² Paper |
| Maximum Document Size | 305 mm × 4.06 m (12 × 160 Inches) |
| Minimum Document Size | 63.5 × 71.1 mm (2.5 × 2.8 Inches) |
| Supported Paper Weight | 27–433 g/m² (7.2–160 lb.) |
| Continuous Cropping Mode | Supports Documents of Unlimited Length |
| Paper Path Options | Front Output Tray or Rear Straight-Through Path |
| Feed Technology | SurePath Intelligent Document Feed Technology |
| Document Protection | Intelligent Document Protection |
| Multifeed Detection | Length and Ultrasonic Multifeed Detection |
| Maximum Optical Resolution | 600 dpi |
| Maximum Image Output Resolution | Up to 1200 dpi |
| Scanning Technology | Dual RGB LED Illumination CIS (CMOS) |
| Illumination Technology | Dual Light Illumination |
| Colour Capture | 48-Bit Colour Capture |
| Colour Output | 24-Bit Colour Output |
| Grayscale Output | 8-Bit Grayscale |
| Archival Compliance | FADGI 2023 Modern Textual Records for Unbound Documents |
| Output Formats | BMP, JPEG, PDF, PNG, Single TIFF, Multi TIFF, Searchable PDF, Word, Excel and RTF |
| Connectivity | USB 2.0, USB 3.2 Gen 1×1 and 10/100/1000 Ethernet |
| Network Protocols | DHCP, Static IP and TCP/IP |
| Operator Control Panel | 3.5-Inch Graphical Colour Touchscreen LCD |
| Bundled Software | KODAK Capture Pro Limited Edition and Smart Touch |
| Optional Software | KODAK Capture Pro and Info Input Solution |
| Drivers | TWAIN, ISIS, WIA and Linux SANE |
| Additional Compatibility | Citrix Certified and KOFAX Certified |
| Supported Barcodes | Codabar, Code 128, Code 39, EAN-13, EAN-8, PDF417, QR, UPC-A and UPC-E |
| Recommended Processor | Intel Core i3 at 3.5GHz or Higher |
| Recommended Memory | 3.43GB RAM or More |
| Height | 254 mm |
| Width | 457.2 mm |
| Depth | 370.84 mm |
| Weight | 15.6 kg |
| Electrical Requirements | 100–240 V, 50–60 Hz |
| Running Power Consumption | Less Than 70 Watts |
| Sleep Power Consumption | Less Than 4 Watts |
| Standby Power Consumption | Less Than 0.3 Watts |
| Operating Temperature | 10–35°C (50–95°F) |
| Operating Humidity | 15%–80% RH |
| Ready Noise Level | Less Than 20 dB(A) |
| Scanning Noise Level | Less Than 60 dB(A) |
| Data Security | Volatile Memory Processing Erases Image Data After Shutdown |
| Environmental Certifications | ENERGY STAR, EPEAT Gold and 2008 EuP |
Frequently Asked Questions (FAQs)
What is the scanning speed of the KODAK S3060?
The KODAK S3060 scans at speeds of up to 60 pages per minute and 120 images per minute.
How many sheets can the KODAK S3060 feeder hold?
The automatic document feeder can hold up to 300 sheets of 80 g/m² paper.
What is the recommended daily scanning volume?
The KODAK S3060 has a recommended daily volume of up to 25,000 pages.
Can the KODAK S3060 scan thick and long documents?
Yes. It supports paper weights of up to 433 g/m² and includes a rear straight-through paper path for thick, delicate or exceptionally long documents. Continuous cropping mode supports documents of unlimited length.
Does the KODAK S3060 support network scanning?
Yes. The scanner includes 10/100/1000 Ethernet connectivity and supports DHCP, static IP and TCP/IP network configurations.
What is the maximum scanning resolution?
The scanner has a maximum optical resolution of 600dpi and supports image output resolutions of up to 1200dpi.
Is the KODAK S3060 suitable for archival scanning?
Yes. It complies with the FADGI 2023 Modern Textual Records standard for unbound documents.
Which scanner drivers are supported?
The KODAK S3060 supports TWAIN, ISIS, WIA and Linux SANE drivers. It is also Citrix and KOFAX certified.
