KODAK i5650S Production Document Scanner
- Scanning Speed: Up to 180 ppm / 360 ipm for high-volume duplex scanning.
- Feeder Capacity: 750-sheet automatic document feeder.
- Daily Volume: Unlimited recommended daily scanning volume.
- Document Sorting: Three output trays with barcode, patch and multifeed sorting.
- Resolution: 600 dpi optical resolution.
- Paper Handling: SurePath intelligent document feeding with staple detection and document protection.
- Connectivity: USB 3.2 Gen 1×1 with USB 2.0 compatibility.
- Imprinting: Optional pre-scan and post-scan imprinting.

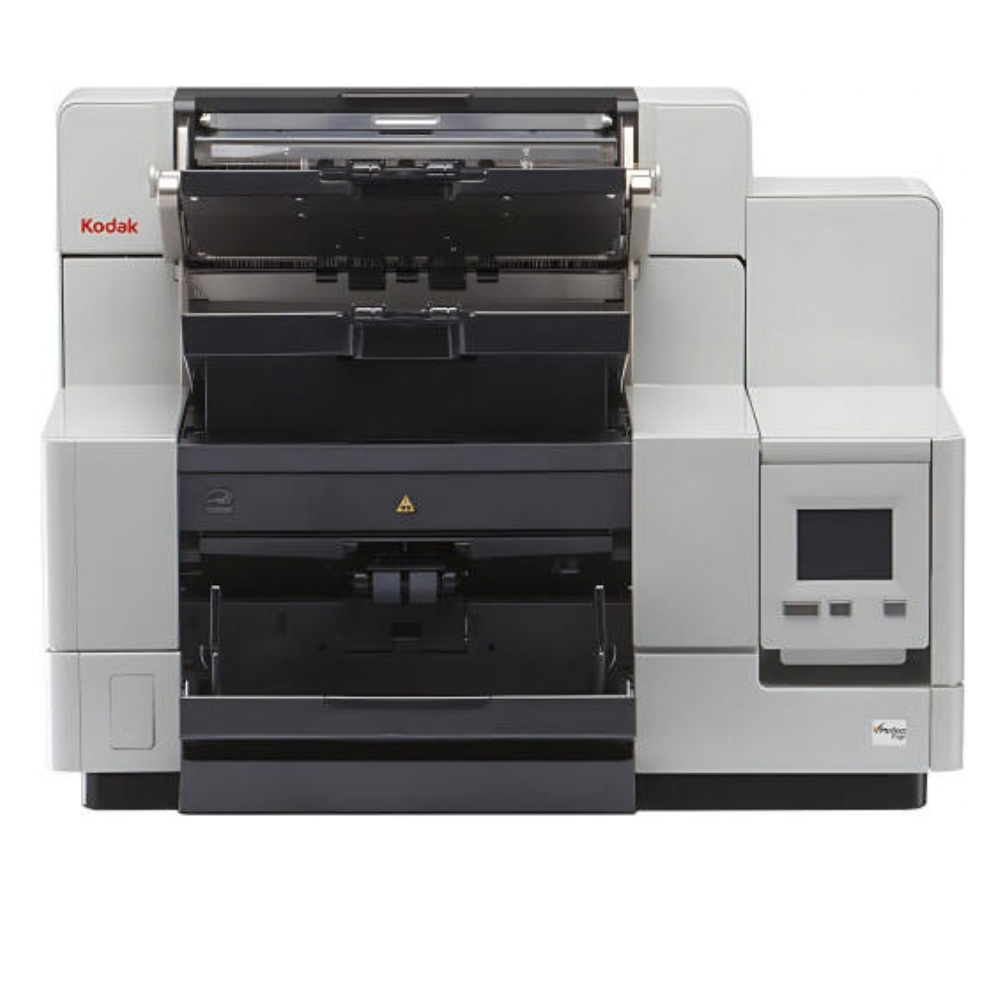

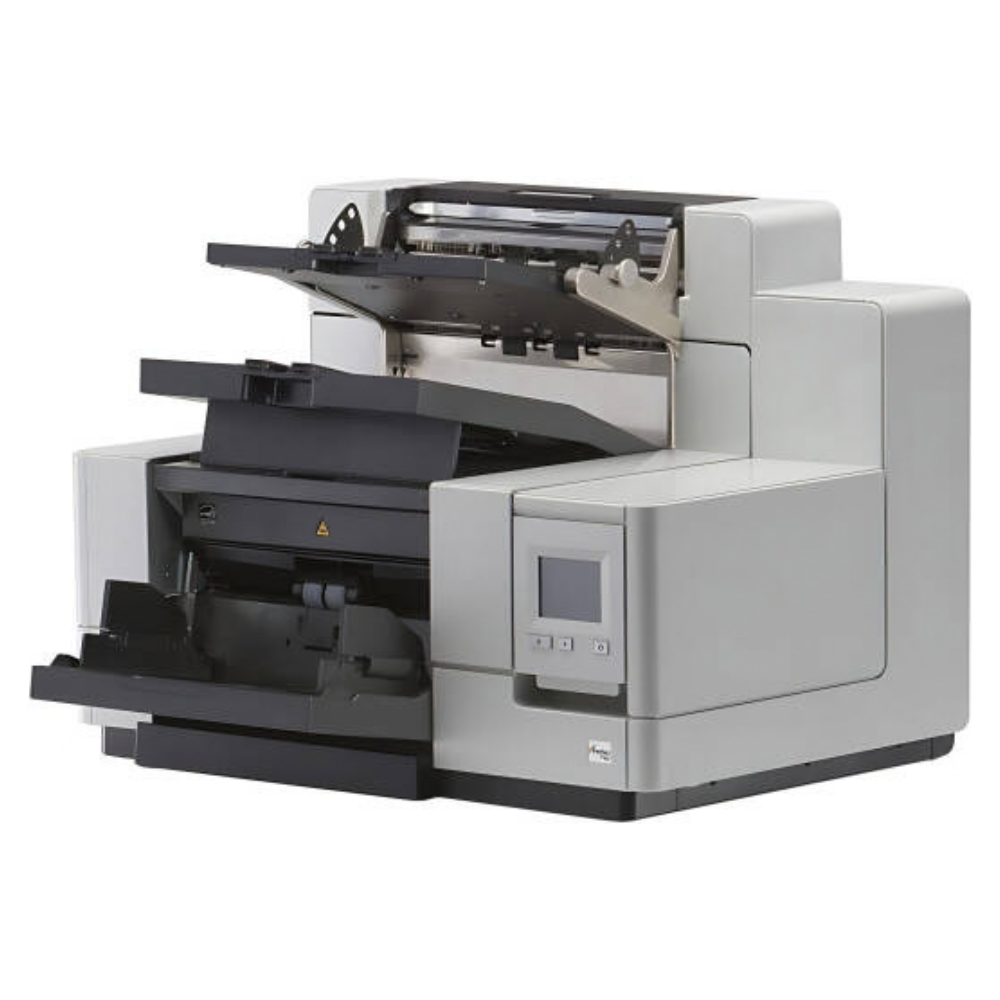

KODAK i5650S Production Document Scanner
The KODAK i5650S Scanner combines high-speed document capture with automatic three-way sorting. Designed for demanding production environments, it helps organizations in Pakistan digitize large document batches and reduce manual sorting during records processing.
High-Speed Duplex Scanning
Scan at speeds of up to 180 pages per minute or 360 images per minute in duplex mode. The automatic document feeder holds up to 750 sheets of 80 g/m² paper. An unlimited recommended daily volume supports extensive digitization projects and ongoing document processing workloads.
Three-Way Automatic Document Sorting
Separate mixed batches using barcode, patch and multifeed sorting. A rear exit tray collects patch sheets for reuse, while two front-access trays provide space for bulk documents and exceptions such as checks or special paperwork. Sorting throughput varies by the selected method and configuration.
Intelligent Paper Handling and Optional Imprinting
SurePath features include controlled stacking, enhanced jam recovery, ultrasonic multifeed detection and Intelligent Document Protection. Metal detection helps identify staples, while operator overrides support exception handling. Optional pre-scan and post-scan imprinting can help teams identify and track physical documents.
Clear Images and Convenient Controls
Dual white LED illumination and CCD technology capture documents at an optical resolution of 600 dpi. A 3.5-inch color touchscreen with operator control buttons provides access to scanner functions. USB connectivity and TWAIN, ISIS and WIA drivers support integration with compatible document capture applications.
Scanned Image Data Security
The scanner processes scanned image data through volatile memory, which is effectively cleared upon shutdown. This applies to image data held within the scanner; exported files remain in their selected storage destinations.
Technical Specifications
| Brand | KODAK |
|---|---|
| Model | i5650S |
| Scanner Type | Desktop production document scanner with three-way sorting |
| Scanning Speed | Up to 180 ppm / 360 ipm |
| Recommended Daily Volume | Unlimited |
| Feeder Capacity | Up to 750 sheets of 80 g/m² paper |
| Maximum Document Size | 305 mm × 4.6 m (12 × 180 inches) |
| Minimum Document Size | 63.5 × 63.5 mm (2.5 × 2.5 inches) |
| Paper Weight | 45–200 g/m² |
| Output Trays | Three trays |
| Exit Tray Capacities | 750 / 400 / 50 sheets |
| Paper Path Options | Front output tray or manually selected rear straight-through paper path |
| SurePath Features | Controlled stacking, enhanced jam recovery, Intelligent Document Protection, interactive multifeed, interactive operator control panel, length multifeed detection, metal (staple) detection, operator overrides and ultrasonic multifeed technology |
| Sorting Methods | Barcode sorting, multifeed sorting and patch sorting |
| Sorting Speeds | Up to 180 ppm / variable up to 100 ppm, depending on sorting mode |
| Imprinting | Optional pre-scan and post-scan imprinting |
| Optical Resolution | 600 dpi |
| Image Output Resolution | Up to 600 dpi |
| Scanning Technology | Dual white LED illumination; CCD |
| Grayscale Output | 8-bit; 256 levels |
| Color Output | 24-bit |
| Color Capture | 48-bit |
| Connectivity | USB 3.2 Gen 1×1; USB 2.0 compatible |
| Control Panel | 3.5-inch (89 mm) graphical color touchscreen LCD with operator control buttons |
| Optional Software | Capture Pro Software and Info Input Solution |
| Standard Drivers | ISIS, TWAIN and WIA |
| Software Certification | KOFAX certified |
| Listed Output Formats | BMP, JPEG and single-page TIFF |
| Supported Barcodes | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A and UPC-E |
| Data Security | Scanned image data is processed through volatile memory and effectively erased from the scanner upon shutdown |
| Height | 43.4 cm (17.1 inches) |
| Width | 69.3 cm (27.3 inches) |
| Depth with Tray Closed | 51 cm (20.1 inches) |
| Depth with Tray Open | 65.3 cm (25.7 inches) |
| Weight | 65 kg (143.3 lbs.) |
| Electrical Requirements | 100–240V; 50–60Hz |
| Power Consumption | Running: <250W; sleep: <3.5W; standby: <0.5W |
| Operating Temperature | 15–35°C |
| Operating Humidity | 15–80% RH |
| Environmental Certifications | 2008 EuP, ENERGY STAR Qualified and EPEAT Silver |
KODAK i5650S Scanner Price in Pakistan
Contact Tescom Engineering for the latest KODAK i5650S Scanner price in Pakistan, current availability and configuration options for your document scanning requirements.
