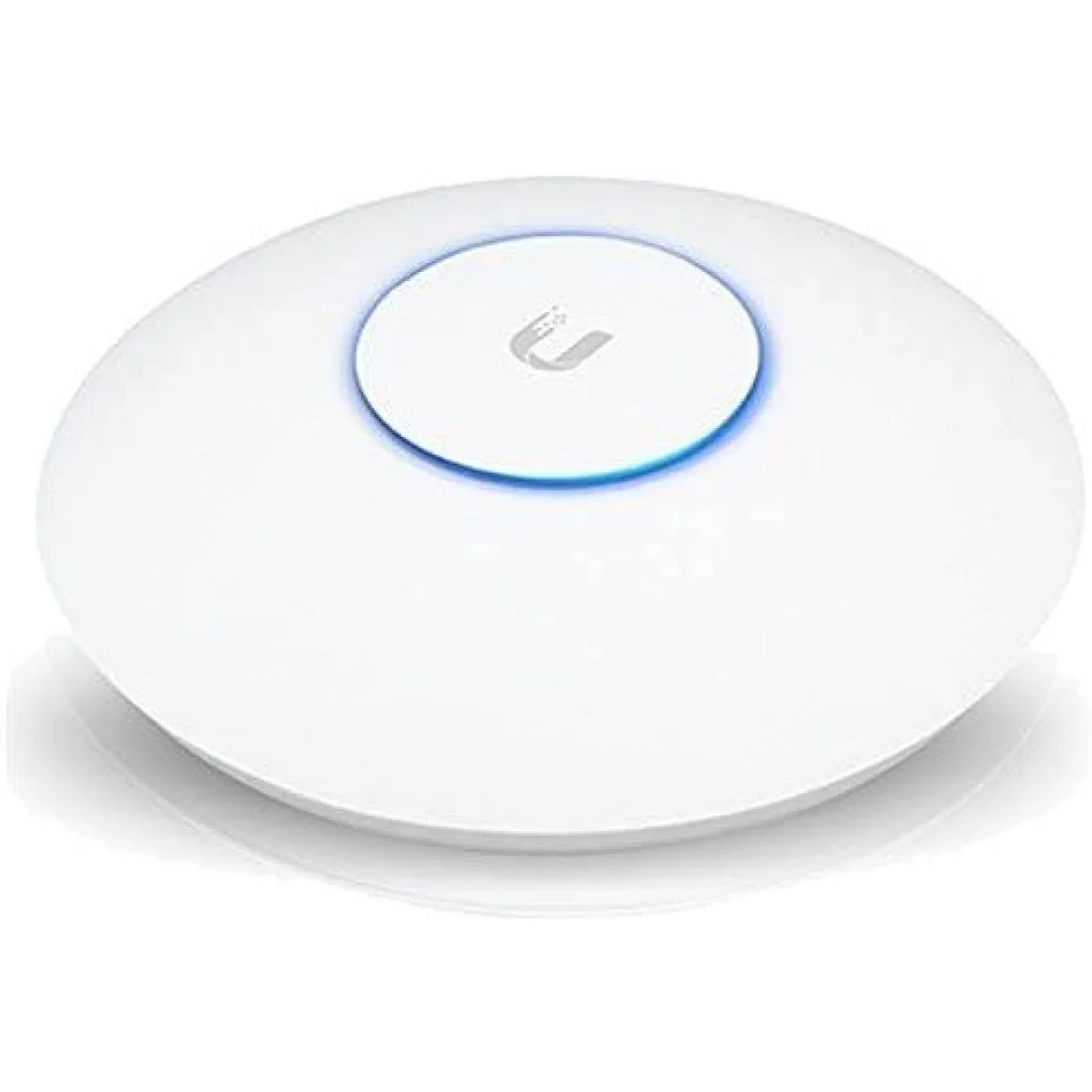

Ubiquiti UniFi UAP-AC-HD High-Density Wireless Access Point

802.11ac Wave 2 Access Point with 4×4 MU-MIMO

The Ubiquiti UniFi UAP-AC-HD is a high-density dual-band wireless access point designed for environments where a large number of wireless clients require reliable connectivity. Built around 802.11ac Wave 2 technology and 4×4 MU-MIMO, it can communicate with multiple compatible wireless clients simultaneously to improve overall network efficiency and capacity.

The UAP-AC-HD provides wireless performance of up to 1733Mbps on the 5GHz band and up to 800Mbps on 2.4GHz. Dual Gigabit Ethernet interfaces, 802.3at PoE+ power support and integration with the UniFi network ecosystem make it suitable for professional wireless deployments.

Product Features

802.11ac Wave 2: The UAP-AC-HD uses 802.11ac Wave 2 wireless technology to provide high-capacity Wi-Fi connectivity for demanding professional environments.

4×4 MU-MIMO: Multi-User MIMO technology enables the access point to communicate with multiple compatible wireless clients simultaneously instead of serving each client sequentially.

High-Density Design: Designed specifically for environments with large numbers of connected wireless devices, making it suitable for offices, educational environments, hospitality and other busy network locations.

Dual-Band Wi-Fi: Simultaneous 2.4GHz and 5GHz operation provides flexible wireless connectivity for a broad range of compatible client devices.

Up to 1733Mbps on 5GHz: The 5GHz radio provides wireless speeds up to 1733Mbps under supported configurations and compatible client conditions.

Up to 800Mbps on 2.4GHz: The 2.4GHz radio supports speeds up to 800Mbps, providing additional coverage and compatibility for supported wireless devices.

Dual Gigabit Ethernet: Two 10/100/1000Mbps Ethernet interfaces provide flexible wired network connectivity for professional installations.

802.3at PoE+: Power over Ethernet Plus allows both network data and electrical power to be delivered through compatible Ethernet infrastructure, simplifying access point deployment.

Ceiling or Wall Mounting: The access point can be installed on compatible ceilings or walls to optimize wireless placement and coverage.

VLAN Support: IEEE 802.1Q VLAN support enables administrators to segment wireless traffic according to network requirements.

Quality of Service: QoS and Wi-Fi Multimedia functionality help prioritize supported network traffic for applications such as voice and video.

UniFi Network Integration: The UAP-AC-HD integrates into the Ubiquiti UniFi ecosystem, allowing compatible UniFi access points and network devices to be centrally configured and monitored.

Professional Wireless Security: Supports established wireless security standards for protecting compatible wireless network deployments.

Indoor/Outdoor Capability: The access point is designed for indoor and suitable protected outdoor deployment according to Ubiquiti’s installation and environmental requirements.

Product Specifications

Designed for High-Density Wireless Networks

The UAP-AC-HD is engineered for wireless environments where many users and devices may be connected simultaneously. This makes it particularly useful for offices, schools, universities, hotels, conference environments and other locations where wireless capacity is as important as coverage.

4×4 MU-MIMO Technology

802.11ac Wave 2 MU-MIMO allows the UAP-AC-HD to communicate with multiple compatible clients simultaneously. This helps increase overall network efficiency compared with wireless systems that must serve individual devices sequentially.

Dual-Band Wireless Performance

The access point provides simultaneous 2.4GHz and 5GHz wireless connectivity. Maximum supported data rates reach up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz, giving administrators flexibility when balancing coverage, compatibility and performance requirements.

Dual Gigabit Ethernet Ports

Two Gigabit Ethernet interfaces provide wired network connectivity for the access point. This gives network installers additional flexibility when planning professional UniFi deployments.

802.3at PoE+ Power

The UAP-AC-HD supports IEEE 802.3at PoE+, allowing power and network data to travel over compatible Ethernet cabling. This can simplify ceiling and wall installations by eliminating the requirement for a separate electrical outlet next to the access point.

Centralized UniFi Network Management

Integration with the UniFi network platform allows administrators to configure and monitor compatible access points from a centralized interface. This makes the UAP-AC-HD suitable for deployments involving multiple access points and network locations.

Flexible Ceiling and Wall Installation

The circular enclosure is designed for discreet professional installation on ceilings or walls. Correct access point placement can help provide more consistent coverage across offices, commercial facilities and other multi-user environments.

Important Compatibility Information

The UAP-AC-HD is an 802.11ac Wave 2 / Wi-Fi 5 access point rather than a Wi-Fi 6 access point. Maximum wireless data rates are theoretical PHY rates and actual throughput depends on connected client capabilities, channel width, interference, network configuration and environmental conditions.

A compatible 802.3at PoE+ power source should be used. Availability of a PoE injector may depend on the exact package or regional SKU, so package contents should be confirmed before publishing.
